13 Udballing USA.fm • Page 28Baler B3 and B4
Applies to B4:

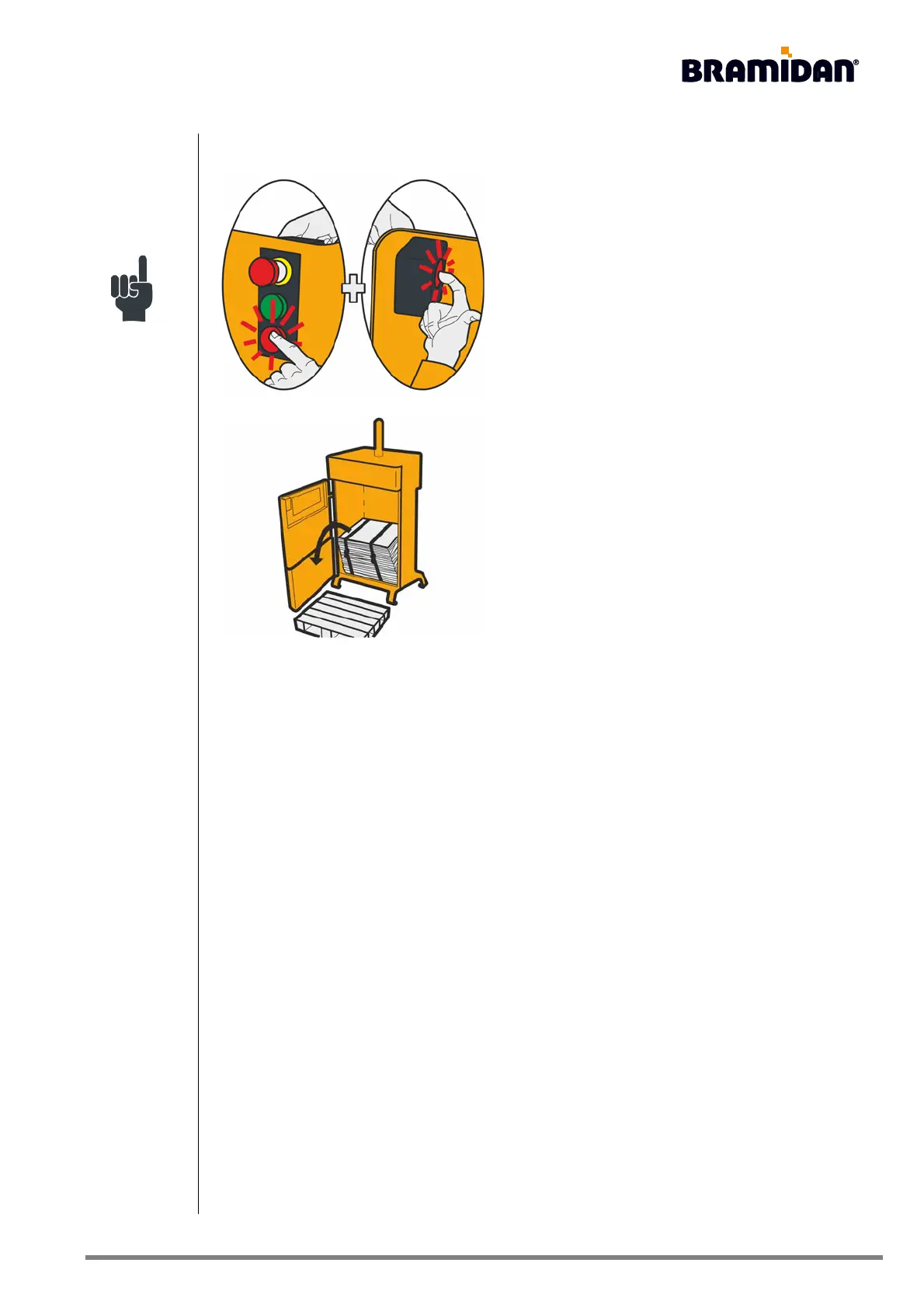

The bale ejection is performed by pressing the two lit
orange buttons simultaneously (two-hand control).
Note that simultaneous constant pressure within a time
interval of half a second is necessary. The platen moves
upward and the ejector belt tips the bale out of the
chamber.
Continue to press the buttons until the platen has
reached the top position and stops automatically.
It is recommended that the bale be tipped out onto a
pallet placed in front of the chamber in order to facilitate
further handling.
When the bale has been removed, close the doors.
Press on the green start button to run a cycle so that the
ejector belt falls into place.
Open the doors and pull out new straps.
