Branson 2800h - Separating Center Frame and Transmission Case

TRANSMISSION
KUKJE MACHINERY CO., LTD.
82
5. CHECKING, DISASSEMBLING AND SERVICING

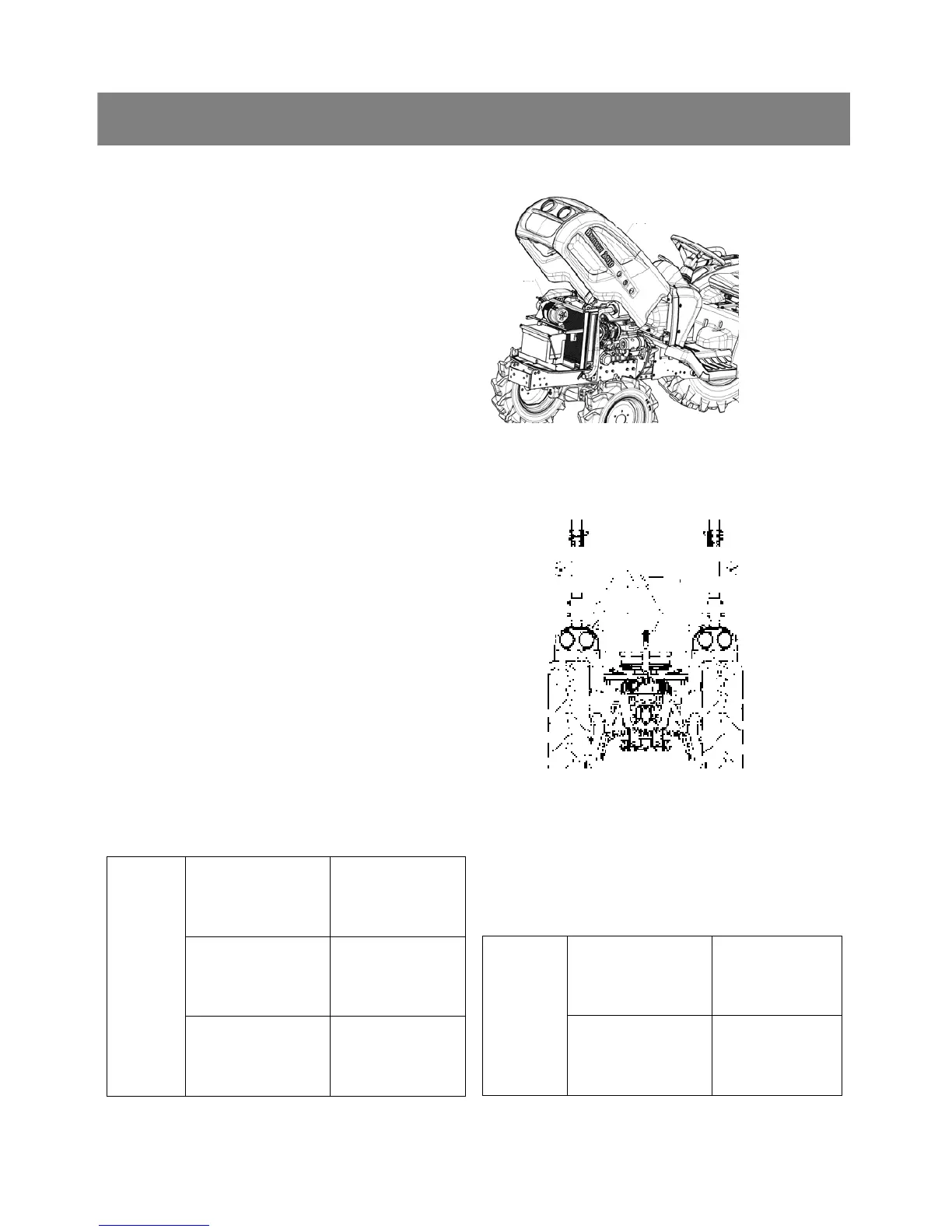

2) Separating Center Frame and Transmission Case
*. PART NAME
1) Hood 2) Battery cord
< Draining transmission fluid >
-. Reference the page 76.
< Battery connector >
1. Open the hood(1).
2. Disconnect the battery ground cord(2).
3. Disconnect the head light connectors and
remove the hood(1).
▶ NOTE
1) When disconnecting the battery cords,
disconnect the grounding cord first.
When connecting, the positive cord first.
< Roll-Over protective structures (ROPS) and 3
Point hitch >
1. Disconnect the wire harness and remove the tail
lamps(6).
2. Remove the hazard lamps(5).
3. Remove the ROPS frame top mounting bolts and
nuts and remove the ROPS frame top(4).
4. Remove the lower link(1) and the collar from the
3-point hitch shaft(2).
5. Remove the ROPS frames(3) and 3-point hitch
shaft(2).
Connecting plate
mounting screw
123.6 to 147.0 Nm
12.6 to 15.0 kgfm
91.1 to 108.5 ft-lbs
ROPS frame and frame
top mounting
bolt and nut
274.6 to 318.7 Nm
28.0 to 32.5 kgfm
202.5 to 235.1 ft-lbs
Tightening
torque
ROPS frame mounting
screw
77.5 to 90.1 Nm
7.9 to 9.2 kgfm
57.2 to 66.5 ft-lbs
*. PART NAME
1) Lower link 2) 3-Point hitch shaft
3) ROPS frame 4) ROPS frame, Top
5) Direction lamp 6) Tail lamp
7) PTO shaft cover
3-Point hitch shaft
setting screw
23.5 to 27.5 Nm
2.4 to 2.8 kgfm
17.4 to 20.3 ft-lbs
Tightening
torque
3-Point hitch shaft
setting screw lock nut
43.0 to 47.0 Nm
4.4 to 4.8 kgfm
31.7 to 35.4 ft-lbs
(1)
(2)
(4)
(3)
(2)
(1)
(5)
(6)
(7)
