TRANSMISSION
KUKJE MACHINERY CO., LTD.
96
5. CHECKING, DISASSEMBLING AND SERVICING

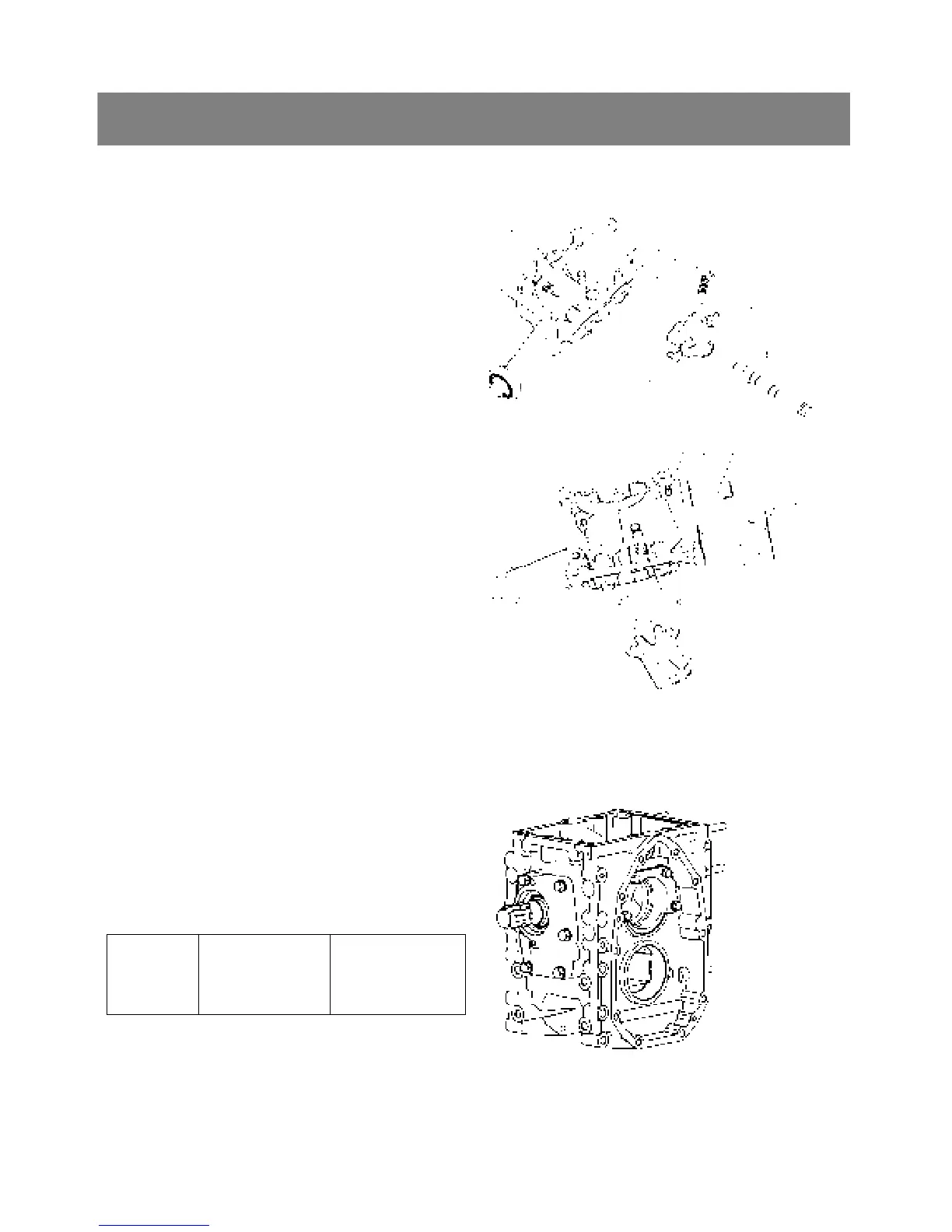

< Main gear shift fork >
1. Remove the cotter pin(1) and remove the
spring(2) and ball(3).
2. Draw out the shift rod(4) and remove the 1
st
-
reverse gear shift fork(5).
3. Remove the 2
nd
-3
rd
gear shift fork(6), in the same
way as the 1
st
-reverse shift fork removing
procedure.
4. Take out the interlocker(7) and slide the shift arm
stopper(8) and then remove the shift arm(9).
5. Remove the shift shaft(10).
6. When remove the differential lock pedal
shaft(11) draw out the dowel pin(12) first.
*. PART NAME
1) Cotter pin 2) Spring
3) Ball 4) Shift rod
5) 1
st
-Reverse gear shift fork 6) 2
nd
-3
rd
Gear shift fork
7) Interlocker 8) Shift arm stopper
9) Shift arm 10) Shift shaft
11) Differential lock pedal shaft
12) Dowel pin
5) Disassembling Differential Gear Case
< PTO shaft >
1. Remove the PTO cover mounting screws and
remove the PTO cover assembly.
▷ Reassembling
9 Apply gasket to joint face of differential gear
case and PTO cover.
Tightening
torque
PTO cover
mounting screw
48.1 to 55.9 Nm
4.9 to 5.7 kgfm
35.4 to 41.2 ft-lbs
To Next Page
