OPERATION
5
CENTER LINK ADJUSTMENT
The center link can be installed to 3
selective positions according to the
working condition.
A: If the center link is attached to the
bottom position, the draft system
will be activated with highest sen-
sitivity which is suitable for the im-
plement such as a plow or equiva-
lent which requires traction force.
B: The center hole is the standard in-
stallation hole for a rotary tiller.

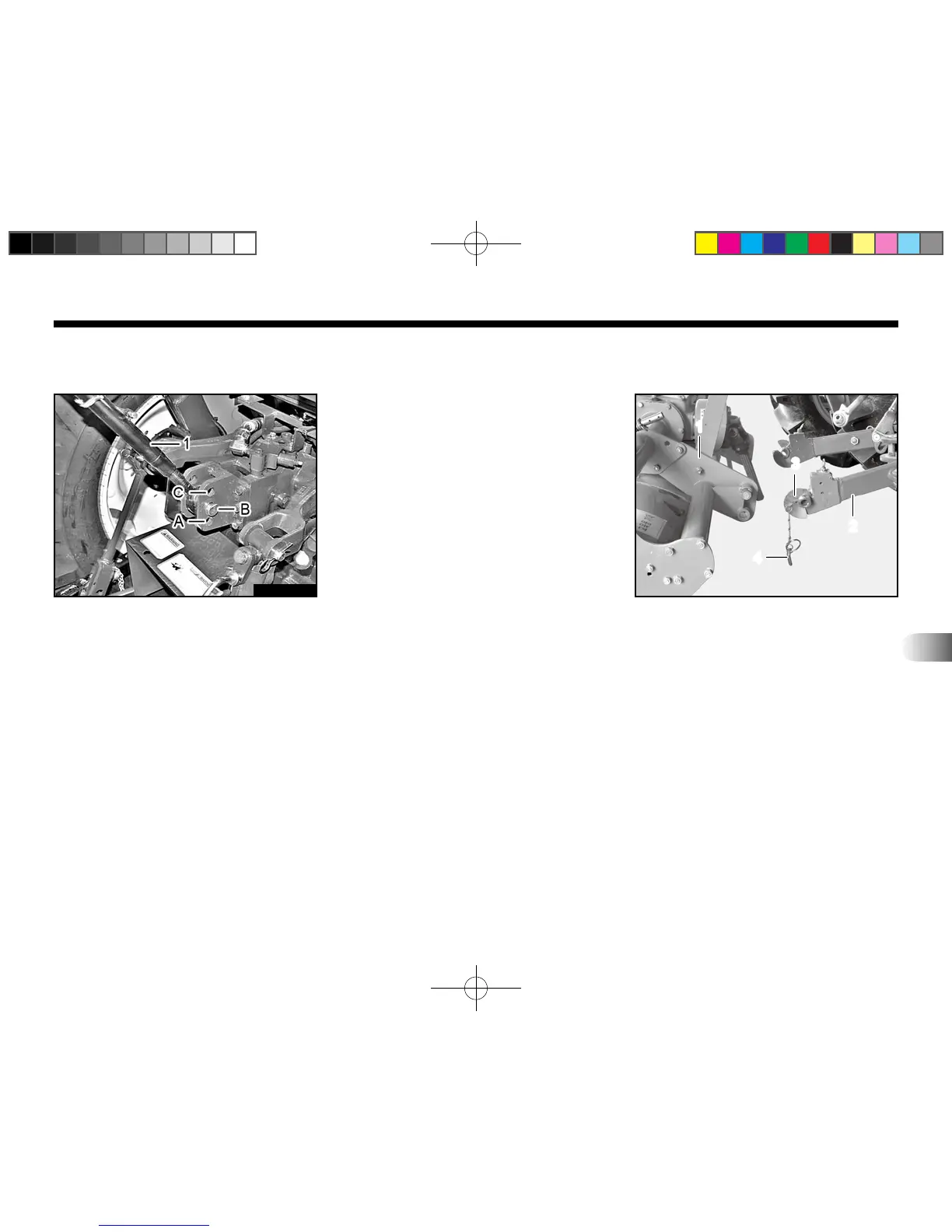

(1) Center link (A) High traction
(B) Mid traction (C) Low traction
ATTACHING IMPLEMENT
1. Drive the tractor backward to
move close to an implement to t
the position of 3-point hitch.
2. Apply the parking brake and stop
the engine.
3. After inserting the hitch pins of the
implement into the lower links,
secure it with the lock pin.
(1) Implement (2) Lower link
(3) Ball (4) Lock pin
A42o422C
C:If the center link is attached to the
top position, the draft system will
not be activated. Therefore, it is
good for the implement such as
a drilling machine or equivalent
which does not require any trac-
tion force.
A42O518A
