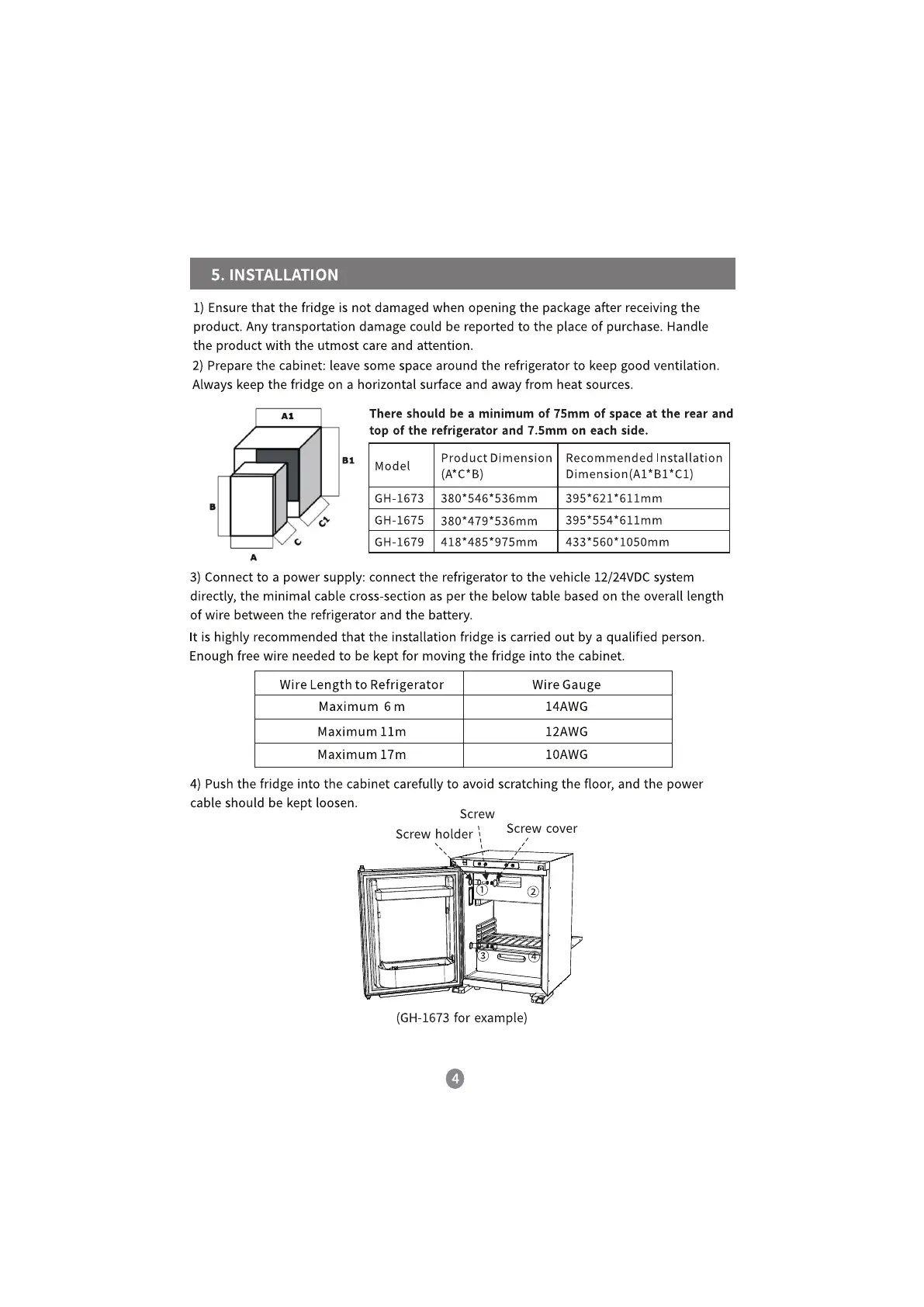

5. INSTALLATION
1)
Ensure that the
fridge
is not
damaged
when
opening
the
package
after
receiving
the
product. Any transportation
damage
could be
reported
to the
place
of
purchase.
Handle
the
product
with the utmost care and attention.
2)
Prepare
the cabinet: leave some
space
around the
refrigerator
to
keep
good
ventilation.
Always keep
the
fridge
on a horizontal surface and
away
from heat sources.
There should be a minimum of 75mm of
space
at the rear and
top
of the
refrigerator
and 7.5mm on each side.
AL
Product Dimension Recommended Installation
Model
(A*C*B) Dimension(A1*B1*C1)
GH-1673 380*546*536mm 395*621*611mm
GH-1675 395*554*611mm
380*479*536mm
GH-1679 418*485*975mm 433*560*1050mm
81
o
3)
Connect to a
power supply:
connect the
refrigerator
to the vehicle
12/24VDC
system
directly,
the minimal cable cross-section as
per
the below table based on the overall
length
of wire between the
refrigerator
and the
battery.
It is
highly
recommended that the installation
fridge
is carried out
by
a
qualified person.
Enough
free wire needed to be
kept
for
moving
the
fridge
into the cabinet.
Wire
Length
to
Refrigerator
Wire
Gauge
Maximum 6m 14AWG
Maximum 11m 12AWG
Maximum
17m
10AWG
4)
Push the
fridge
into the cabinet
carefully
to avoid
scratching
the
floor,
and the
power
cable should be
kept
loosen.
Screw
Screw holder
+
7
Screw cover
7
1
2
1
3
(GH-1673
for
example)
To Next Page
