Braun 07 Series User Manual

Page 16

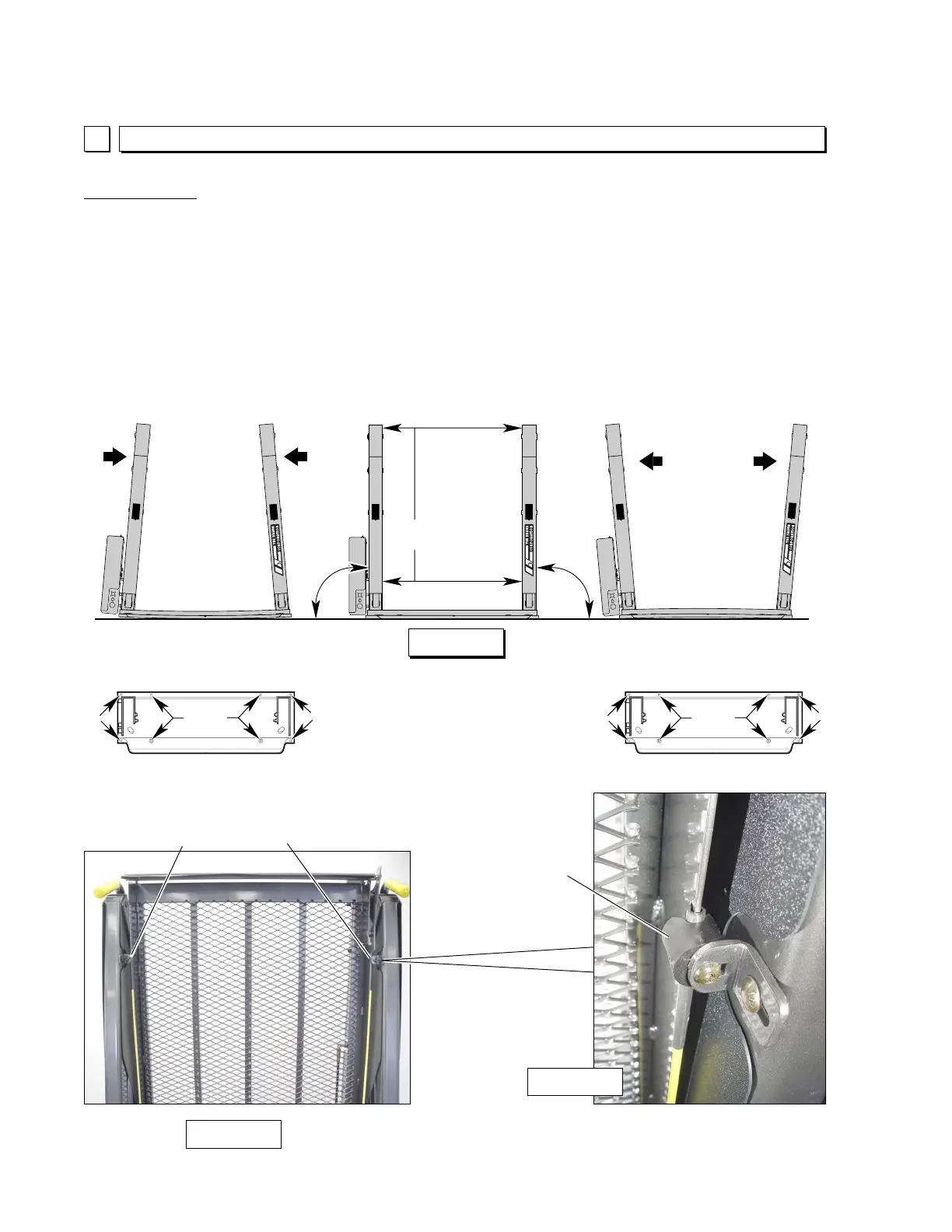

Figure M
2
Lift Securement (continued)
Lift Installation Instructions
Side-to-Side Alignment
Aligned
Deflected
Out
Deflected
In
Bolt Tightening
Tightening of the base plate
mounting bolts directly affects
vertical arm alignment and base
plate warpage. Tighten inside
mounting bolts first, then tighten
outside mounting bolts. Measure
alignment of towers and vertical
arms while tightening. See Figure
M. Note: Towers must be aligned
and parallel, with platform side
plates securely nested in the
guided stow blocks. See Photos A
and B.
Mounting Bolt Torque Speci-
fications: 28 to 31 foot
pounds. Adjustment to mount-
ing bolt torque may be required
to achieve proper alignment.
See Design Lifting Capacity
on page 24 also.
AcceptableUnacceptable Unacceptable
Platform side plates
securely nested in
guided stow blocks.
Photo A
Platform side plate securely nested in
guided stow block (typical both sides).
Guided
Stow
Block
Photo B
Tighten
Outside
Bolts
Tighten
Outside
Bolts
Loosen
Inside
Bolts
To Correct:
Dimensions MUST
be Equal
90°90°
To Correct:
Loosen
Outside
Bolts
Loosen
Outside
Bolts
Tighten
Inside
Bolts
®
29823
®
2
9
8
2
3
®
29
823
