Systems Descriptions

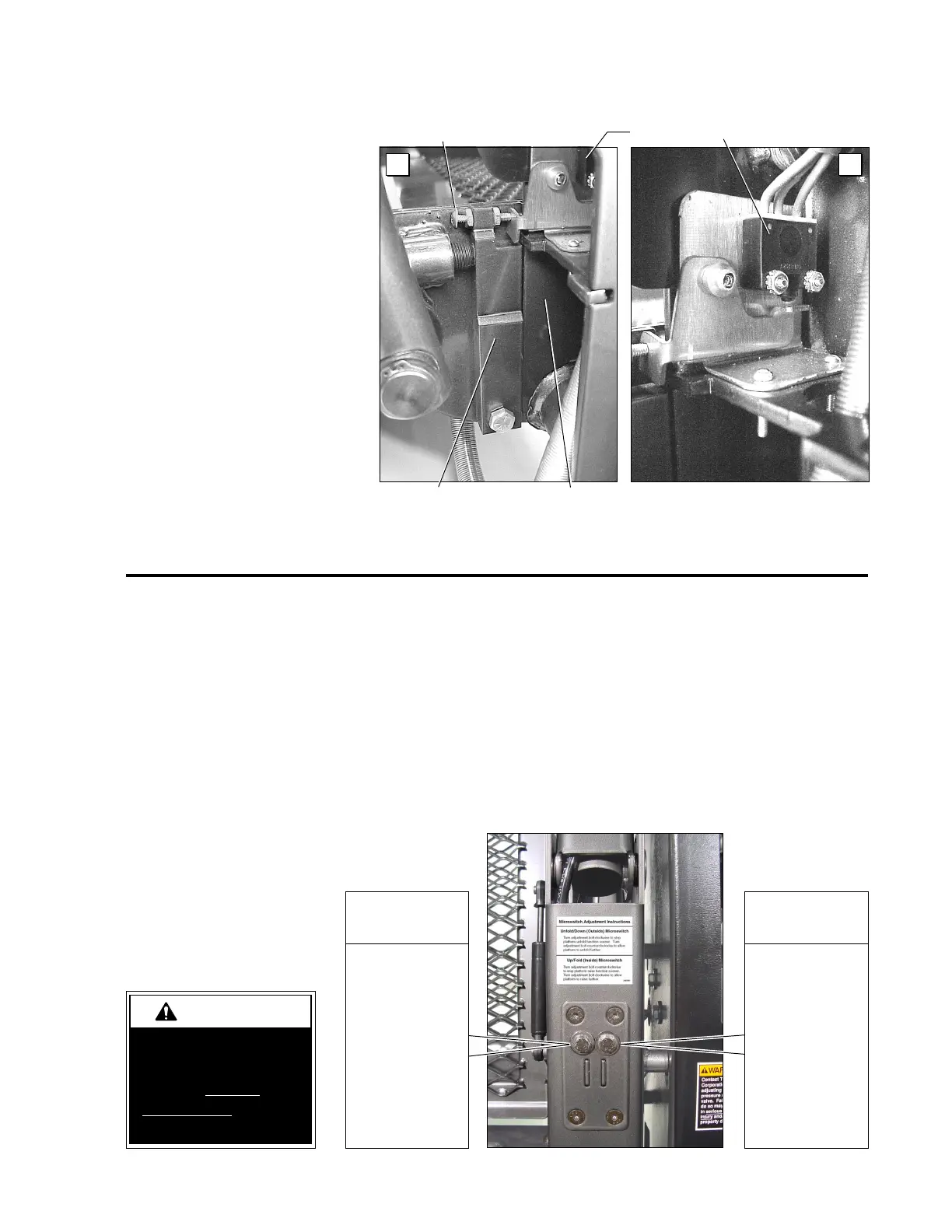

Bridging Microswitch: The
bridging microswitch is located
at the bottom of the left (rear)
vertical arm. See Photos A
and B. An adjustment screw is
built into the platform stop
block.
The bridging microswitch will
be deactivated if the outboard
end of the platform contacts
the unloading surface before
the inboard end while the
DOWN switch is pressed.
The deactivated bridging
microswitch interrupts power to
the DOWN switch circuit and
stops the down travel of the
platform (while allowing the roll
stop to deploy).
BA
Platform
Stop Block
Inboard Vertical
Edge of Vertical Arm
Bridging MicroswitchAdjustment Screw
Unfold/Down and Up/Fold Microswitches: The
Unfold/Down and Up/Fold microswitches (limit
switches) are located in the pump side tower.
Adjustment: Use a 7/16" socket wrench to turn
the two 1/4"-20 x 5" hex bolts to reposition the
limit switches. Adjust these microswitches as
outlined below and on Microswitch Adjustment
Instructions decal 24490 (posted on tower).
Floor Level Guideline Adjustments: The
Unfold/Down and Up/Fold microswitches control
platform and bridge plate positioning. Ensure
floor level adjustments are correct as outlined on
pages 30-32. Check platform angle as outlined
on pages 28 and 29 when adjusting bridge plate
positioning.
Turn adjustment
bolt clockwise to
stop platform
unfold function
sooner.
Turn adjustment
bolt counter-
clockwise to
allow platform to
unfold further.
Unfold/Down
Microswitch:
Turn adjustment
bolt counter-
clockwise to stop
platform raise
function sooner.
Turn adjustment
bolt clockwise to
allow platform to
raise further.
Up/Fold
Microswitch:
Improper microswitch
adjustment may
result in serious
bodily injury and/or
property damage.
W
A
RNING
