Page 19
DOOR OPENING
Lift Base Plate
NEG.
POS.
Pump
Module
Battery
Chassis
Pump-Mounted Ground Cable
Battery-to-Frame
Ground Cable
Grommet
5/16-18 x 3/4"
Thread Cutting
Screw
5/16"
External
Tooth
Star
Washer
Connect battery-to-frame ground
cable to negative (-) battery post.

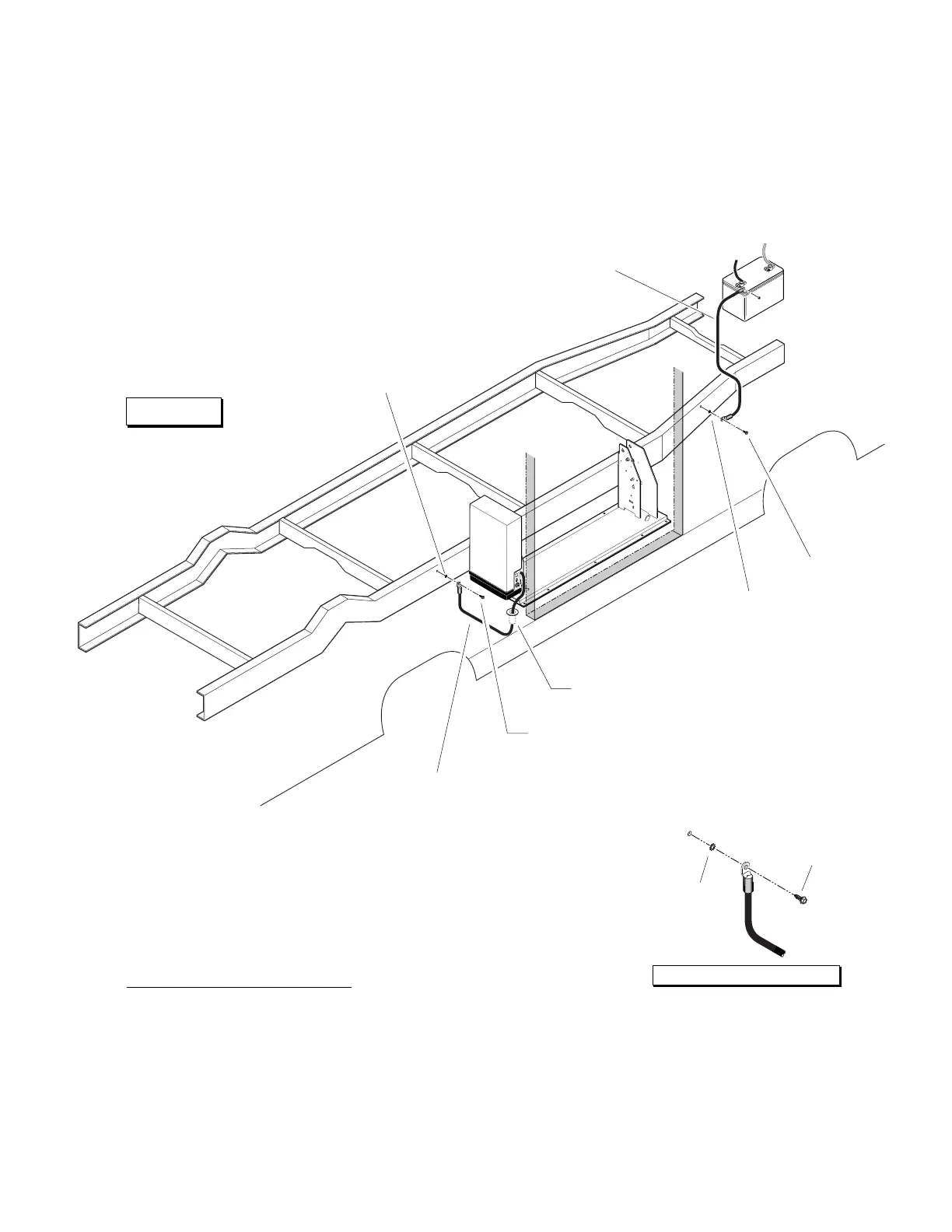

Figure O
5/16" External
Tooth Star Washer
5/16-18 x 3/4"
Thread Cutting Screw
Ground Cables: The pump
ground cable and battery-to-
frame ground cable must be
mounted to a common
vehicle framing member to
provide optimum ground.
Lift Installation Instructions
Power Cable: Route, cut to length
and connect the power cable before
securing the cable to the vehicle.
5/16"
External Tooth
Star Washer
5/16-18 x 3/4"
Thread Cutting
Screw
Mounting Hardware Detail
Vehicle Battery Ground Cable:
The external battery-to-frame ground cable supplied
with the lift must be connected to the same vehicle
framing member that the pump ground cable is
attached to. Connect the cable to the negative (-)
battery post. Note: A 3/8-16 x 1" bolt and a 13/32"
I.D. x 1/2" tubing spacer are provided for side
terminal mount batteries (if applicable).
Secure the opposite end of the cable to the vehicle
framing member. Drill a 9/32" diameter pilot hole in
the frame. Mount the cable using a 5/16-18 x 3/4"
thread cutting screw. Position a 5/16" external tooth
star washer between the cable eye terminal and the
frame. Prepare the cable mounting surface and
apply grease to frame and hardware as previously
detailed in Ground Cable Corrosion on page 18.
