Lift Installation Instructions
10
5
6
3
7
12
2
1
8
9

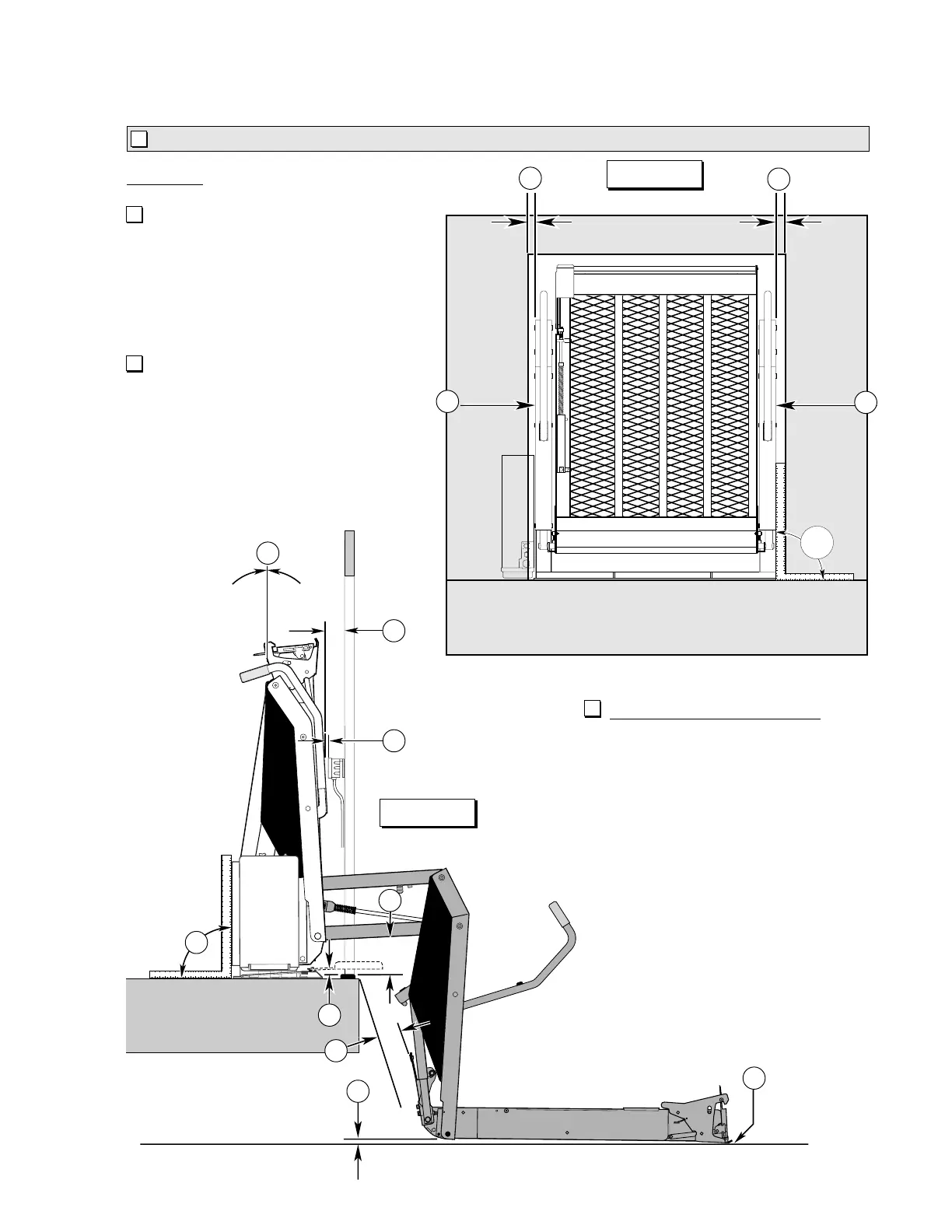

Positioning and Clearance Checklist
✓
Platform Angle Adjustment:
The platform angle must be properly
adjusted (see points 12 and 13).
Adjust the platform angle as detailed
in Platform Angle Adjustment
Instructions on pages 28 and 29.
Alignment:
"Side" to "Side" Alignment:
As viewed from outside the vehicle, the
lift vertical arms and platform (when
stowed) should be perpendicular (90°)
to the vehicle floor and parallel
(aligned) with the sides of doorjamb
(see points 8 and 9).
"Inboard" to "Outboard" Alignment:
The vertical arms and parallel arms
must be aligned (parallel) to each
other (see point 10). The towers
should be perpendicular (90°) to the
vehicle floor except when base plate
shims are used (see point 11).
11
4
Bridge Plate
13
