Page 29
Platform Angle Adjustment Instructions
Adjustment Allen screws are provided on each side
of the lift platform for adjusting the platform angle.
Turn the adjustment screw clockwise to raise the
outboard end of the platform. Turn the adjustment
screw counterclockwise to lower the outboard
end of the platform. Note: Both adjustment screws
must be adjusted equally. Adjust platform angle
as needed. See Figure U on previous page. Apply
Loctite
®
to adjustment screws following adjustment.
Floor Level Adjustment and Platform Stop
Blocks: Platform stop blocks and floor level
positioning must be viewed during platform
angle adjustment procedures. Stop blocks
on the inboard section of platform must be
making full contact with the vertical arms
(details on pages 30-32).

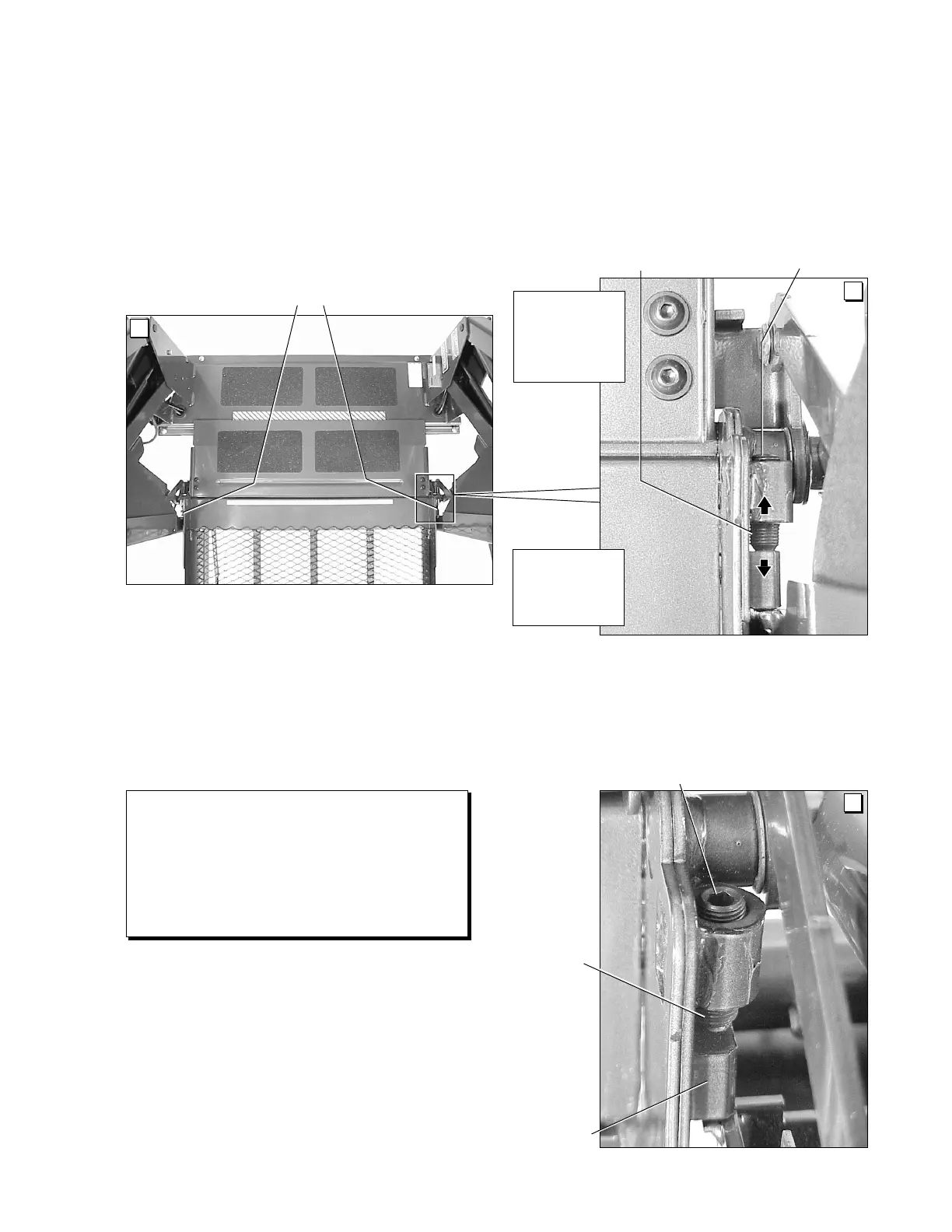

Platform Angle
Adjustment Screws
Adjustment Screw Allen Head
Adjustment
Screw
Allen Head
Stop Block
C
A
B
Loosen (turn
counterclock-
wise) to lower
outboard end
of platform.
Tighten (turn
clockwise) to
raise outboard
end of platform.
To Next Page
