Page 16
Operation Notes and Details
Control Switches (continued):

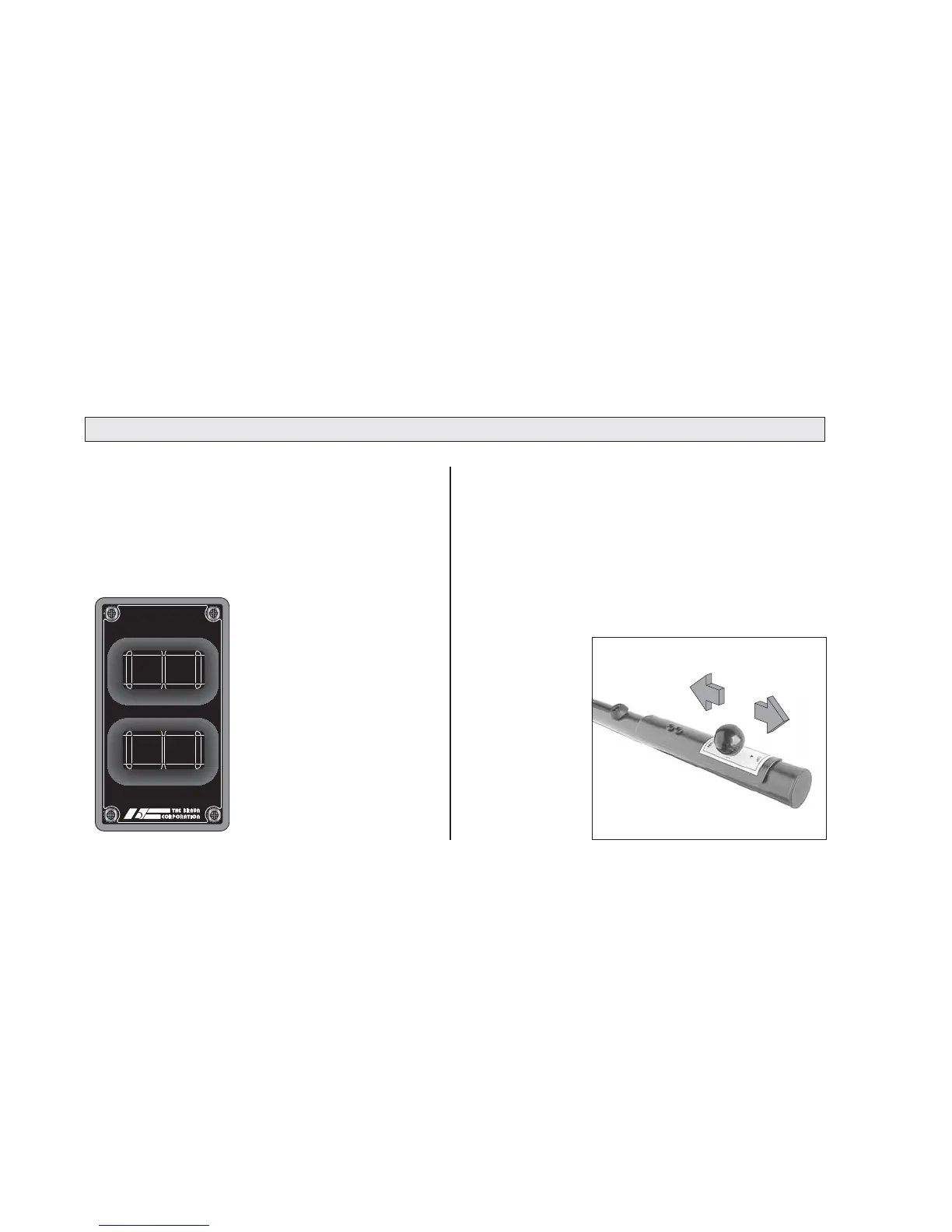

Hand-held Pendant Control: The hand-held
attendant's pendant control is equipped with four
push button switches, (UNFOLD, FOLD, DOWN,
and UP). The momentary switches activate the
automatic lift functions. Simply press the switch
labeled for the intended lift function.
DOWN
UP
FOLD
UNFOLD
32525
32526
Switch Arm UP/DOWN Switch: A spring-loaded
horizontal-slide style switch is built in the switch
arm. The switch arm UP/DOWN switch activates
the platform, outer barrier and inboard locator
functions. Slide the switch knob out to the UP
position to raise the platform. Slide the knob in
to the DOWN position to lower the platform.
UP
DOWN
When there is power
to the lift, the lift func-
tion labels illuminate to
identify the function(s).
