Page 32

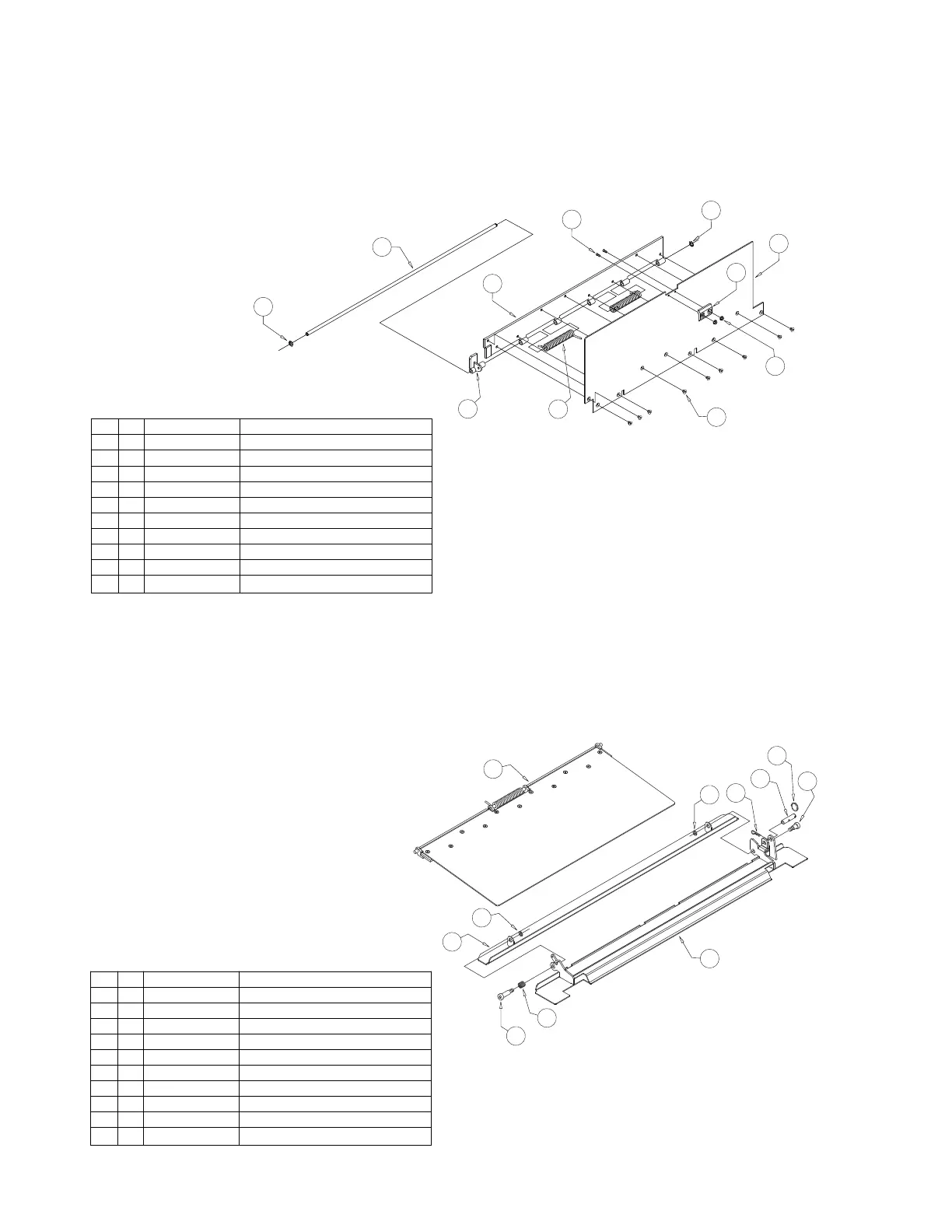

Exploded Views and Parts Lists
Platform Assembly - Inner Roll Stop
Platform Assembly - Outer Barrier
1
5
4
3
6
8
9
7
10
2
2
ASSY-DUAL OUTBOARD BARRIER75321RNA
WMT-BARRIER
DESCRIPTION
82771
83585
PART NO.
75321RMNW
ITEM
4
3
2
1
6
5
1
1
2
QTY.
1
WASHER-.390 X .625 X .073 SS
SCREW-1/2 X 1 1/4 SHLD SKT HD X 3/8-16
1 75330W CLOSURE-WMT
7
1 73741-2 PIN-BARRIER CLEVIS RELEASE
8
1 32881 SCREW-3/8 X 1/2 SHLD SKT HD X 3/8-16 SS
9
1 11390 RING-CLEVIS PIN 15/16"
10
1 84382 CLIP-HAIRPIN 5/16 DIA SHAFT
733351 SPRING-LOWER CLOSURE TORSION
9
4
1
6
4
8
7
2
10
5
3
HINGE WMT-REAR BARRIER75420CNW
SCREW-1/4-20 X 3/8 FL SOC CAP HD
DESCRIPTION
75413
85101
PART NO.
23471
ITEM
4
3
2
1
6
5
1
1
2
QTY.
9
SPRING-TORSION
SHAFT-BARRIER HINGE/RR
1 75414C SKID-REAR BARRIER
7
2 83080 NUT-10-32 SERRATED FLANGE ZP
8
2 17192P
SCREW-#10-32X1/2 FHDHXS-AUTO BLK-W/PATCH
9
1 75411RMNYL PLATE-REAR BARRIER
10
1 75415CW CATCH WMT-REAR BARRIER
843832 E CLIP-3/8 SHAFT
