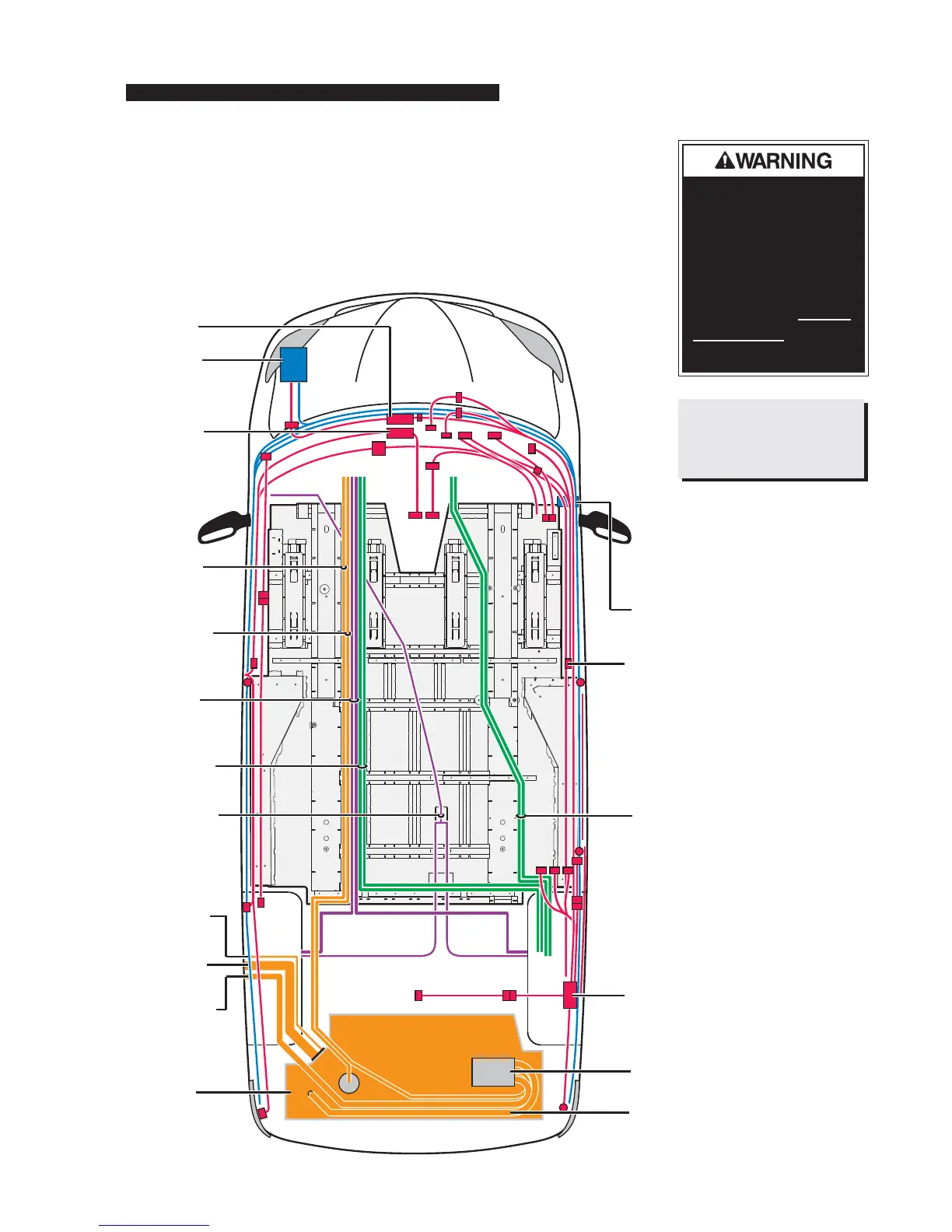

BraunAbility Rampvan - BELOW FLOOR OBSTRUCTIONS; Foldout Rampvan Underfloor Diagram

Page 15
'ULOOLQJRUFXWWLQJLQWRVXFK
REVWUXFWLRQVPD\UHVXOWLQSRWHQ-
WLDOKD]DUGVDVZHOODVSURSHUW\
GDPDJH
Fuel
Return
Line
Battery
Fuse
Block
Emergency
Brake
Cable
Brake
Lines
Rear Heat
Lines
Fuel Fill
Tube
Fuel
Tank
Fuel Vapor
Line
Fuel Vent
Line
SDM
Module
Charcoal
Canister
Controller
(PMM)
Rear AC
Lines
Seat
Connector
Typical
Driver
&
Passenger
SIR
Module
Fuel Vent
Line
Main Fuel
Line
OEM
Wiring
Braun
Wiring
Heat &
AC Lines
Fuel
System
Brake
System
Color Key
OEM
Wiring
Braun
Wiring
Heat &
AC Lines
Fuel
System
Brake
System
Color Key
BELOW FLOOR OBSTRUCTIONS
Check for obstruc-
tions such as wires,
gas lines, exhaust,
etc. before drilling
or cutting through
ÁRRU)DLOXUHWRGRVR
may result in serious
bodily injury and/or
property damage.
1RWH6RPHZLULQJKDUQHVVHV
VKRZQPD\QRWEHSUHVHQW$YRLG
DOOKDUQHVVORFDWLRQV
Foldout
Rampvan
®
