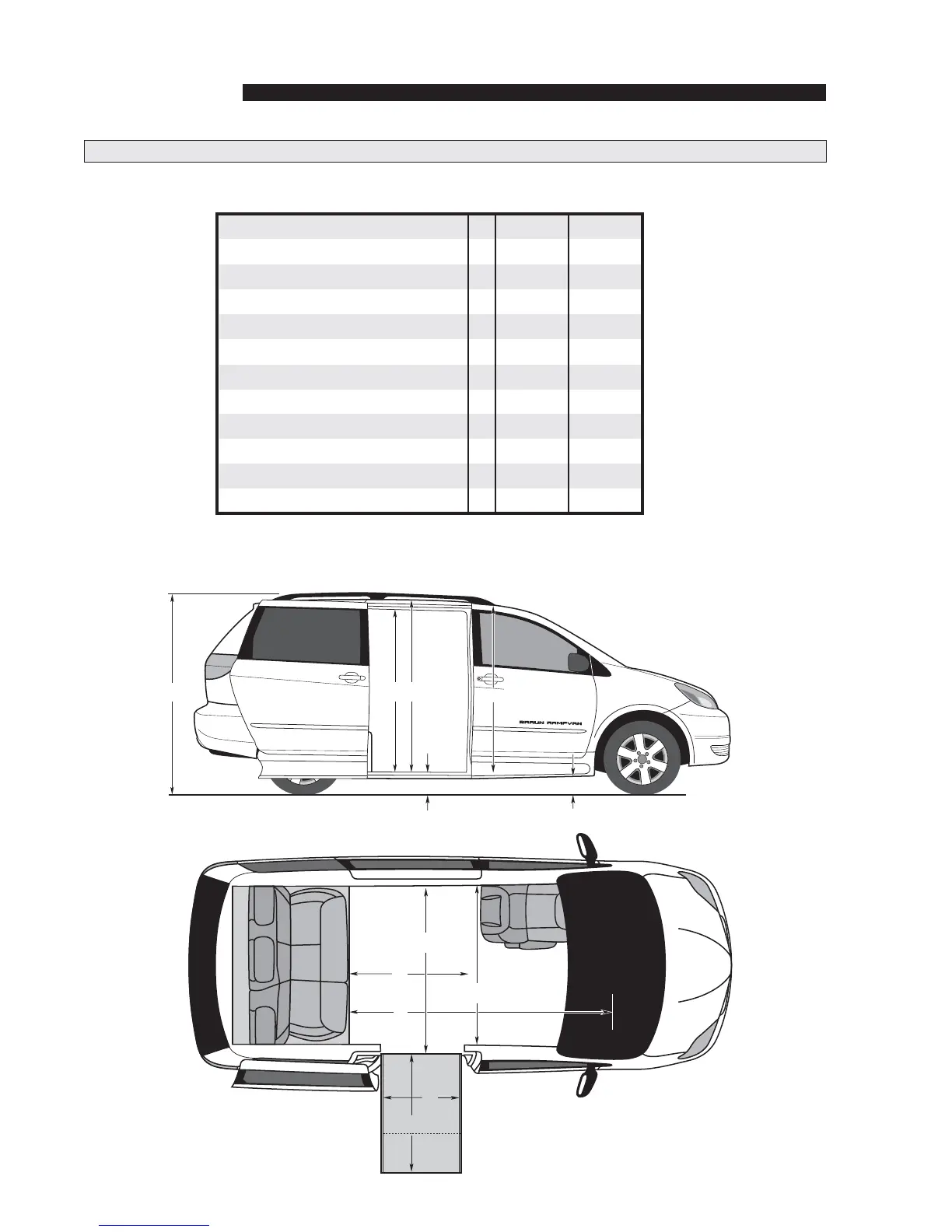

DIMENSIONS
'LPHQVLRQV)ROGRXWDQG,QÁRRU5DPSYDQV
®
Overall Height A 70” 70”
Door Opening Usable Height B 54-1/4” 53-1/2”
Interior Height (Center of Van)
1
C 59” 58”
Interior Height (Driver/Passenger)
2
D 57” 56-1/4”
Ramp Length E 53” 52-3/4”
Useable Ramp Width F 29-1/2” 30”
Ground Clearance G 6-1/4” 6”
Floor Height at Door H 11-1/2” 12-1/2”
Center Floor Length I 47” 47”
Useable Floor Length (Flat Area) J 82” 82”
Floor Width at B Pillars K 62” 62”
Interior Width (At Ramp) L 69” 69”
Foldout Infloor
1
Interior height dimension is reduced by 3” at this position if equipped with a moon roof.
2
Interior height dimension is reduced by 1” at this position if equipped with a moon roof.
F
I
J
E
A
BC
H
D
G
K
L
