Series 5A and Series 5B I.S. Valve Status Monitor
Installation, Operation and Maintenance Manual
9.2 Fixed Bracket
9.2.1 Stainless Steel Bracket
Bray's single piece stainless steel bracket is used for
NAMUR pattern 30 x 80. Installation is as follows:
1. Attach mounting bracket and nylon washers
to the VSM using mounting bracket bolts.
a. Tighten mounting bolts in a cross
pattern to 70.8 in-lbs. [8Nm]
b. Ensure that the bracket remains aligned
with the body of the VSM.
2. Place VSM and bracket assembly on actuator.
Ensure VSM shaft engages with actuator
pinion.

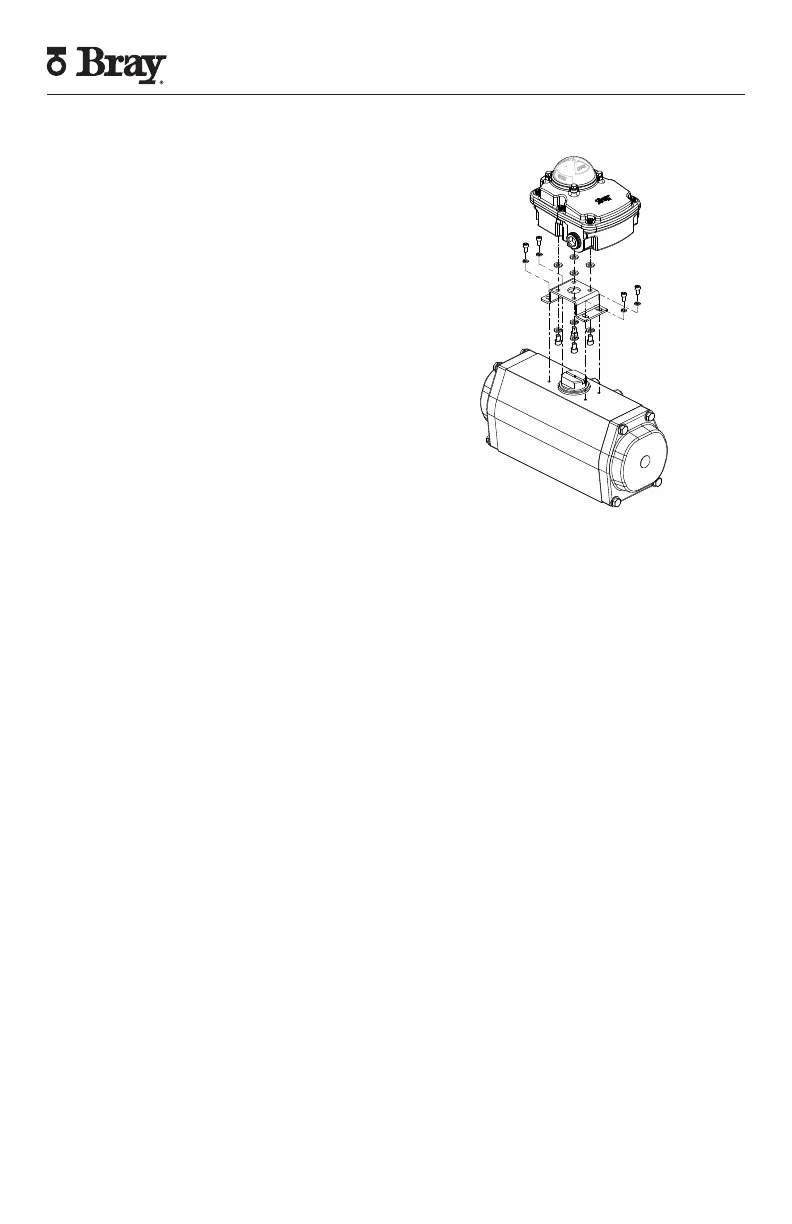

3. Install bracket mounting bolts with lock
washers as seen below.
a. Tighten mounting bracket bolts to
44.3 in-lbs. [5Nm].
9.2.2 Resin Brackets
Bray's single piece resin brackets are available for
NAMUR pattern 30 x 80 and 30 x 130 (based on
actuator selection). Installation is as follows:
1. Attach mounting bracket to the VSM using
mounting bracket bolts.
a. Tighten mounting bolts in a cross
pattern to 35 in-lbs. [4Nm]
b. Ensure that the bracket remains aligned
with the body of the VSM.
2. Place VSM and bracket assembly on actuator.
Ensure VSM shaft engages with actuator
pinion.
3. Install bracket mounting bolts with lock
washers as seen below.
a. Tighten mounting bracket bolts to
35 in-lbs. [4Nm].
