SERIES 6A ELECTROPNEUMATIC POSITIONER
QUICK START GUIDE
3 of 12© 2021 BRAY INTERNATIONAL, INC. ALL RIGHTS RESERVED. BRAY.COM The Information
contained herein shall not be copied, transferred, conveyed, or displayed in any manner that would
violate its proprietary nature without the express written permission of Bray International, Inc.
1.0 MOUNTING AND SETUP

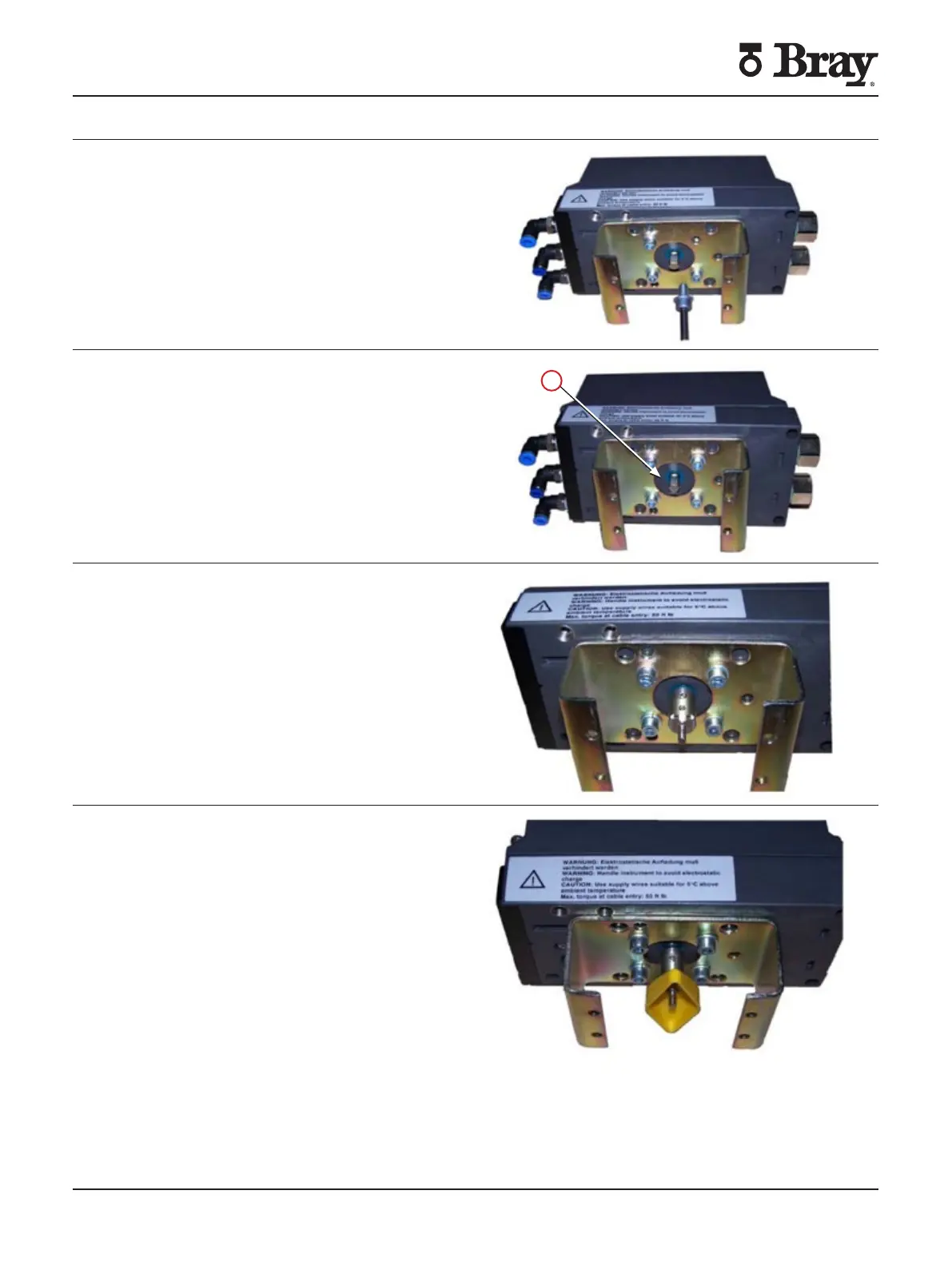

Step Place the mounting bracket on the
underside of the positioner Tighten the
mounting bolts and lock washers
Step Position the output shaft of the
positioner so that the flat () portion is
facing upwards
Step Insert the coupler over the output shaft
Ensure proper alignment of the coupler’s
set screw with the flat side of the shaft
before tightening the set screw
Step Position the yellow indicator on the base
of the coupler
To Next Page
