BRAY Series 70 Electric Actuator
Operation and Maintenance Manual
21
aPPendix C
SerieS 70
HouSing Size 6
ON / OFF

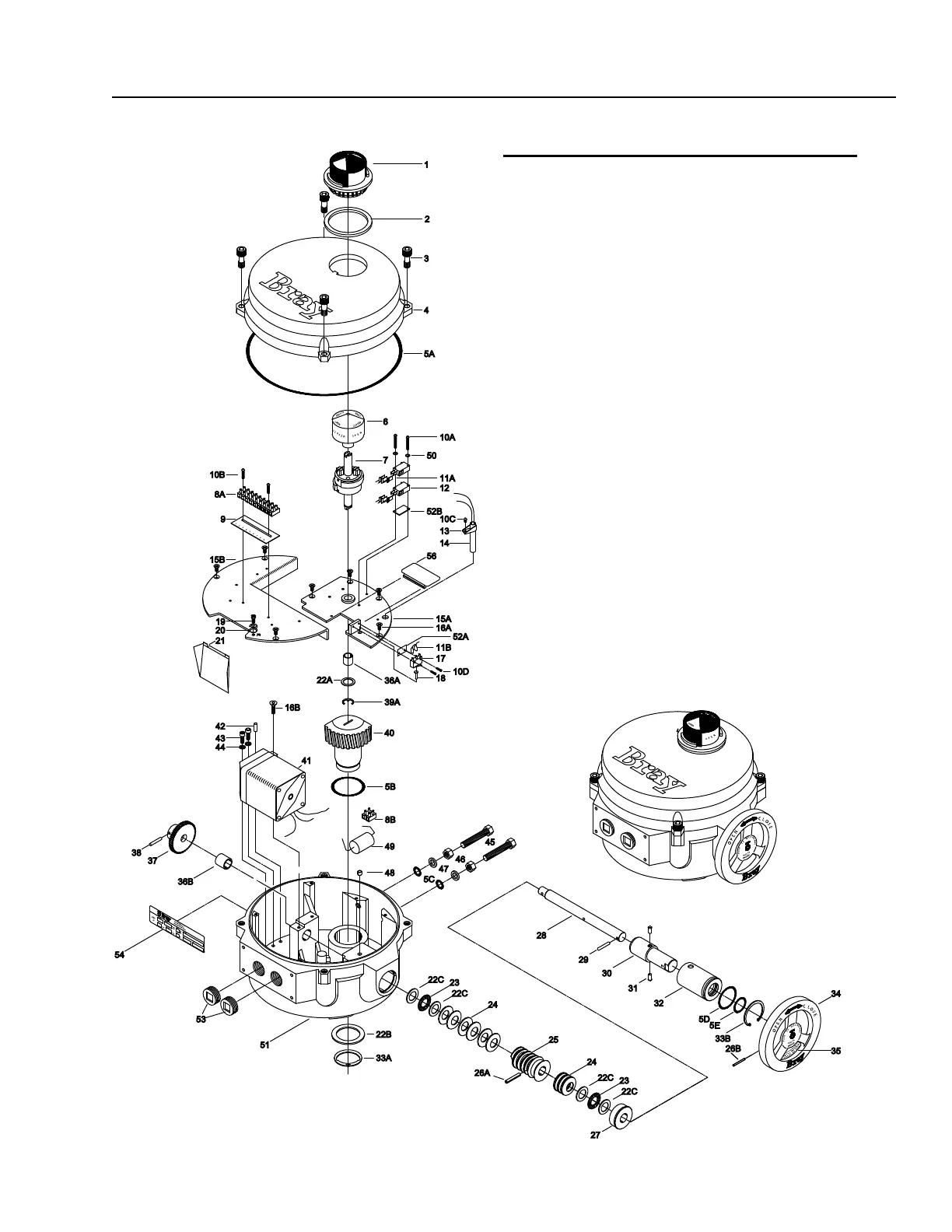

1 POSITIONINDICATORCOVER
2 POSITIONINDICATORSEAL
3 COVERFASTENINGSCREWS
4 COVER
5 0-RING
6 INDICATORROTOR
7 CAMASSEMBLY
8 TERMINALSTRIP
9 TERMINALSTRIPTAG
10 SCREW,PANHEAD
11 WIREASSEMBLY
12 LIMITSWITCH(SPDTFORMC)
13 HEATERMOUNTINGBRACKET
14 HEATER
15 SWITCHPLATE
16 FLATHEADSCREW
17 OVERRIDESWITCH(SPDTFORMC)
18 OVERRIDESWITCHTRIGGERPIN
19 GREENGROUNDSCREW
20 GROUNDCUPWASHER
21 CONDUITWIREDEFLECTOR
22 THRUSTWASHER
23 THRUSTROLLERBEARING
24 DISCSPRING
25 WORM
26 SPRINGPIN
27 MANUALOVERRIDEBUSHING
28 WORMSHAFT
29 OVERRIDEDRIVEPIN
30 MANUALOVERRIDESHAFT
31 SPRINGPLUNGER
32 MANUALOVERRIDESLEEVE
33 RETAININGRING
34 HANDWHEEL
35 HANDWHEELWARNINGLABEL
36 BUSHING
37 DRIVEGEAR
38 DRIVEGEARPIN
39 E-RING
40 OUTPUTWORMGEARSEGMENT
41 GEARMOTOR
42 DOWELPIN
43 SOCKETHEADCAPSCREW
44 LOCKWASHER
45 TRAVELSTOPBOLT
46 LOCKNUT
47 NYLONFLATWASHER
48 OVERRIDESPRINGPIN
49 CAPACITOR
50 FIBERWASHER
51 BASE
52 INSULATOR
53 CONDUITPLUG
54 NAMETAG
55 
56 TORQUESWITCHCOVER
Items 13, 14 and 10C are optional.
Item 56 is installed in units when torque switches are not required.
