Brecknell MS-1000 - Assembly; Setting the Indicator up for Use; Wire the Cable Attached to the Base as Shown (if Necessary)

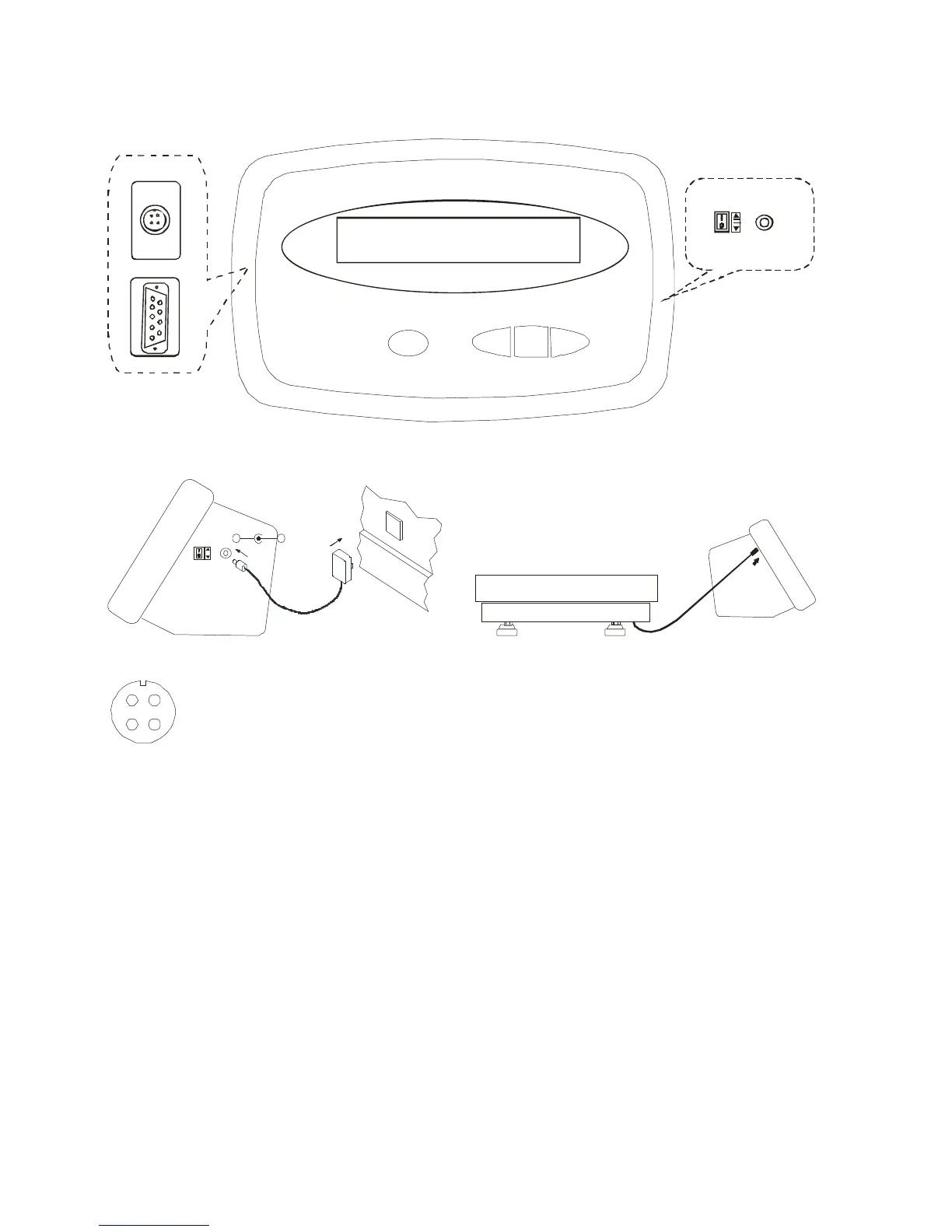

Setting the Indicator Up for Use
RS232
Loadcell socket
Power/Adapter Socket
Power Supply Connecting the Indicator to the Platform
-
6V DC - 500mA
+
230V - 50Hz
Wire the cable attached to the base as shown (if necessary)
4
2
3
1
1 RED
2 RED
3 RED
4 RED
1. Red Excitation+
2. Black Excitation-
3. Green Signal-
4. White Signal+
