Breckwell SP1002 - Page 26

26

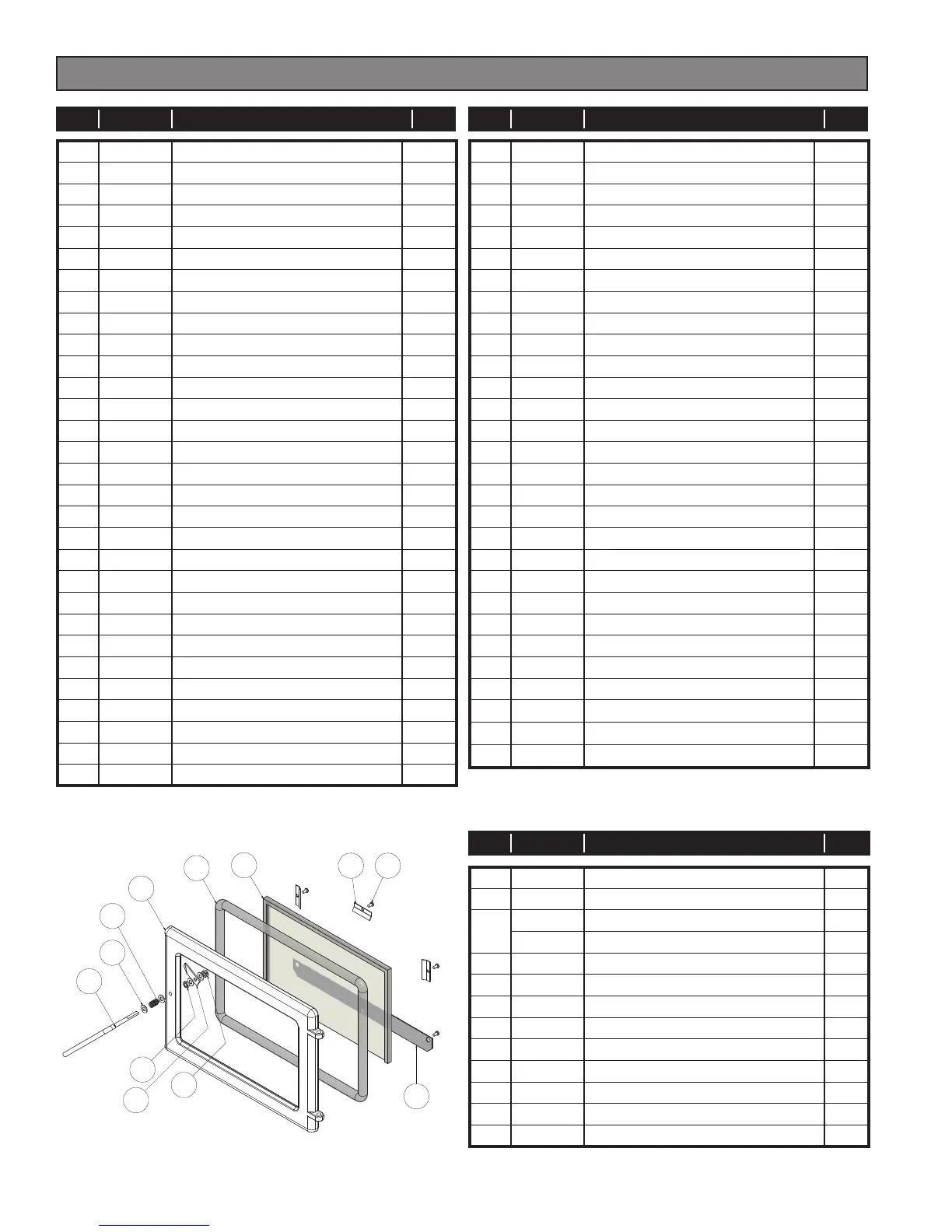

Parts List
1 892046 Hopper Assembly 1
2 891189 Plate, Top Bushing 1
3 891132 Agitator Bushing 2
4 891164 Weldment, Auger Housing 1
5 83534 Retaining Ring 2
6 891161 Weld., Bot. Plate Retainer 1
7 25495 Bracket, Drive Motor 1
8 891141 Auger 1
9 891169 Hose, Heater 2
10 83529 Hairpin 1
11 80488 Drive Motor (1.5 RPM CCW) 1
12 80493 Extension, Wiring Harness 1
13 80491 Microswitch 1
14 83542 Nylon Lock Nut 2
15 83541 #4-40 Machine Screw 2
16 25863 Regulator, Manual Feed Rate 1
17 25864 Auger Cover, Manual Feed Rate 1
18 892044 Weldment, Top Lid 1
19 25488 Side, Right Cabinet 1
20 891980 Side, Left Cabinet 1
21 69671 Ash Pan Assembly 1
22 69666 Door Assembly 1
23 69693 Weldment, Burnpot Housing 1
24 69673 Damper Assembly 1
25 892059 Blower Mount 1
26 892053 Access Panel, Back 1
27 25774 Mount, Pressure Switch 1
28 69722 Igniter Tube Weldment 1
29 892051 Grill Weldment 1
30 891121 Hose, Silicone (1/4” I.D. 450 DE) 0.4 FT
31 89586 Auger Nipple 1
32 40571 Hinge Block 2
33 86668 Damper Rod 1
34 891987 Plastic Knob 3
35 891700 Spring Handle 1
36 891148 Handle, Plastic 1
37 80473 Blower, Exhaust 1
38 80462 Receptacle, 3 Prong 1
39 80609 Thermodisc, Surface Mount, 210
o
1
40 80610 Thermodisc, Surf. Mt., Low Limit POF 1
41 80549 Pressure Switch 1
42 80461 Power Supply Cord 1
43 80591 Blower, Dual Fasco (7058-1645) 1
44 80607 Igniter Cartridge 1
45 892124 Weldment, Right Bafe 1
46 892123 Weldment, Left Bafe 1
47 892061 Decorative Plate, Breckwell Flame 1
48 892057 Plate, Backing-Flame 1
49 C-E-401 Circ BD All Mod X P22 New Style 1
50 88100 Gasket, Exhaust Blower 1
51 C-L-101 Face Plate Digital 401 BD (4 Setting) 1
52 80618 Jumper Wire-Room Blower 1
53 80608 Wiring Harness-Main 1
54 88118 Gasket, Ignitor Flange 1
55 88168 Gasket, Burnpot Housing 1
56 69710 Weldment, Burnpot 1
57 83564 Clamp, Hose-1/2, Self-Compen. 1
58 83576 Jam Nut, 3/8-24 2
59 83575 Hinge Pin (.370 DIA X 1.00) 2
       
7
8
9
1
2
3
10
11
12
4 5
6
1 40578 Feed Door 1
2 88082 3/4” Round Rope Gasket-Black 4.8 ft.
3
892038 Door Glass 1
88087 1/8 x 1 Window Gasket w/Adhesive 2.8 ft.
4 25904 Clip, Glass 3
5 83202 10-24 x 3/8 PH PN HD MS 6
6 25905 Air Wash Plate 1
7 891160 Door Handle 1
8 83547 Washer, 11/32”ID x 11/16”OD x 1/16 Thk. 4
9 83903 Spring 1
10 83547 Washer, 11/32”ID x 11/16”OD x 1/16 Thk. 4
11 83546 5/16-18 Jam Nut 1
12 83338 5/16-18 Lock Nut 1
   
