8

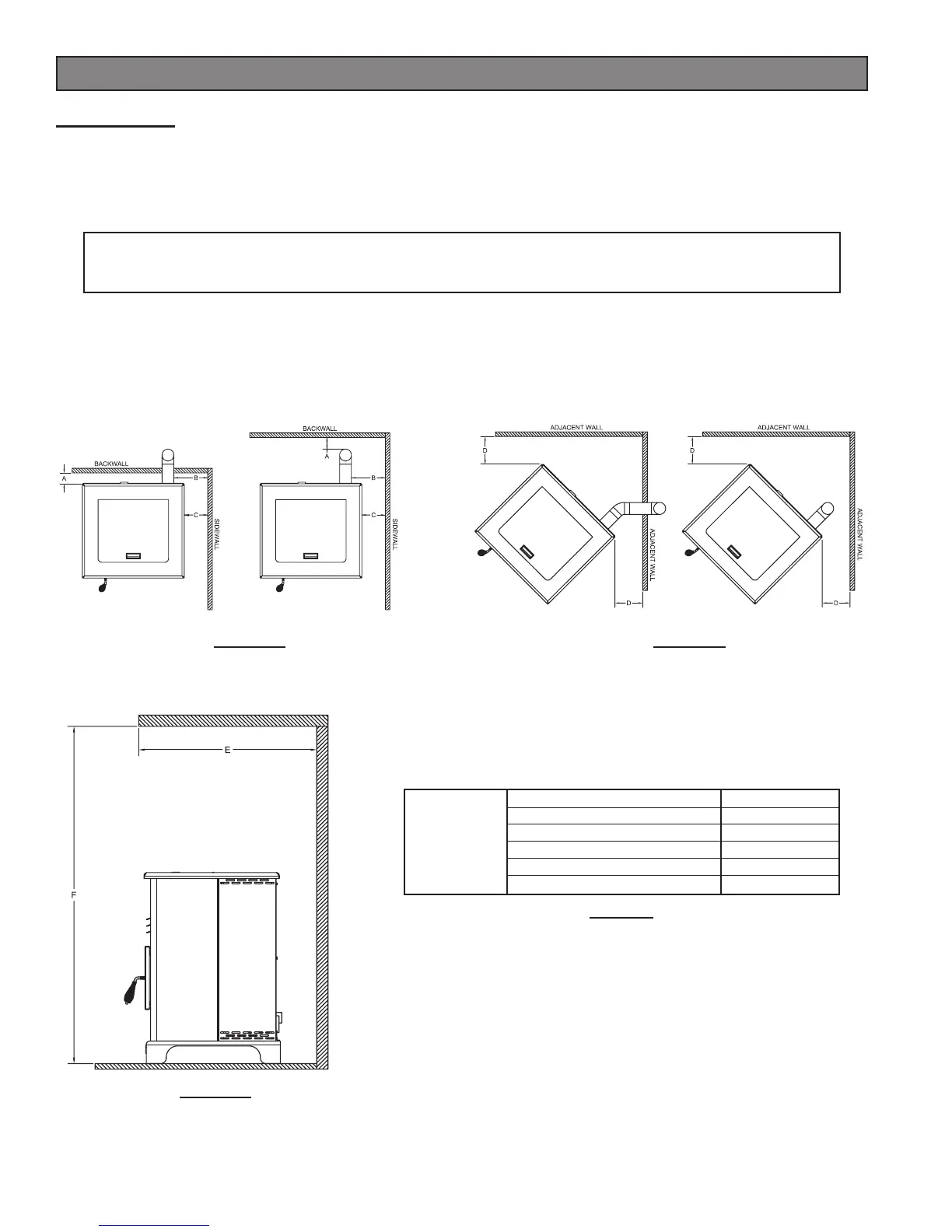

CLEArANCES
Your pellet stove has been tested and listed for installation in residential, mobile home, and alcove applications in
accordance with the clearances given in FIGURES 3-5 and TABLE 1. For safety reasons, please adhere to the installation
clearances and restrictions. Any reduction in clearance to combustibles may only be done by means approved by a
regulatory authority.
NOTE: Distance “C” on the left-hand side of your pellet stove may need to be greater than the minimum
required clearance for suitable access to the control panel.
FigurE 3
SIDEWALL CLEARANCES
PARALLEL INSTALLATION
FigurE 4
SIDEWALL CLEARANCES
CORNER INSTALLATION
FigurE 5
ALCOVE CLEARANCES
PARALLEL A - Backwall to unit 3.00 / 76mm
B - Sidewall to ue 16.00 / 406mm
C - Sidewall to top edge of unit 12.00 / 305mm
CORNER D - Adjacent wall to unit 1.00 / 25.4mm
ALCOVE E - Alcove depth 36.00 - 914mm
F - Alcove height 60.00 - 1520mm
TABLE 1
CLEARANCES
Installation
