Breezy Relax/Quickie Relax 15
EENNGGLLIISSHH
1009/3/ST-000690xxx.EMS
We at SUNRISE MEDICAL have been awarded the ISO-9001
certificate, which affirms the quality of our products at every stage,
from R & D to production.
This products meet the requirements in accordance with EC
guidelines. Options or accessories shown are available at extra cost.
Wheelchair:
1. Push handles 7. Castor adapter
2. Backrest 8. Castor fork
3. Sideguard 9. Quick-release axle
4. Seat sling 10. Brakes
5. Footrests 11. Handrim
6. Castor 12. Rear wheel
Overview
6
8
10
5
9
11
4
1
3
3
12
7
3. The attachment points to the chair are the inner front side frame
just above the castor and the rear side frame. The straps are fit-
ted around the side frames at the intersection of the horizontal
and vertical frame tubes. (See Figs 24-28)
4. The tie down symbol (Fig 29) on the wheelchair frame indicates
the position of the wheelchair restraint straps. The straps are
then tensioned after the front straps have been fitted to secure
the wheelchair.

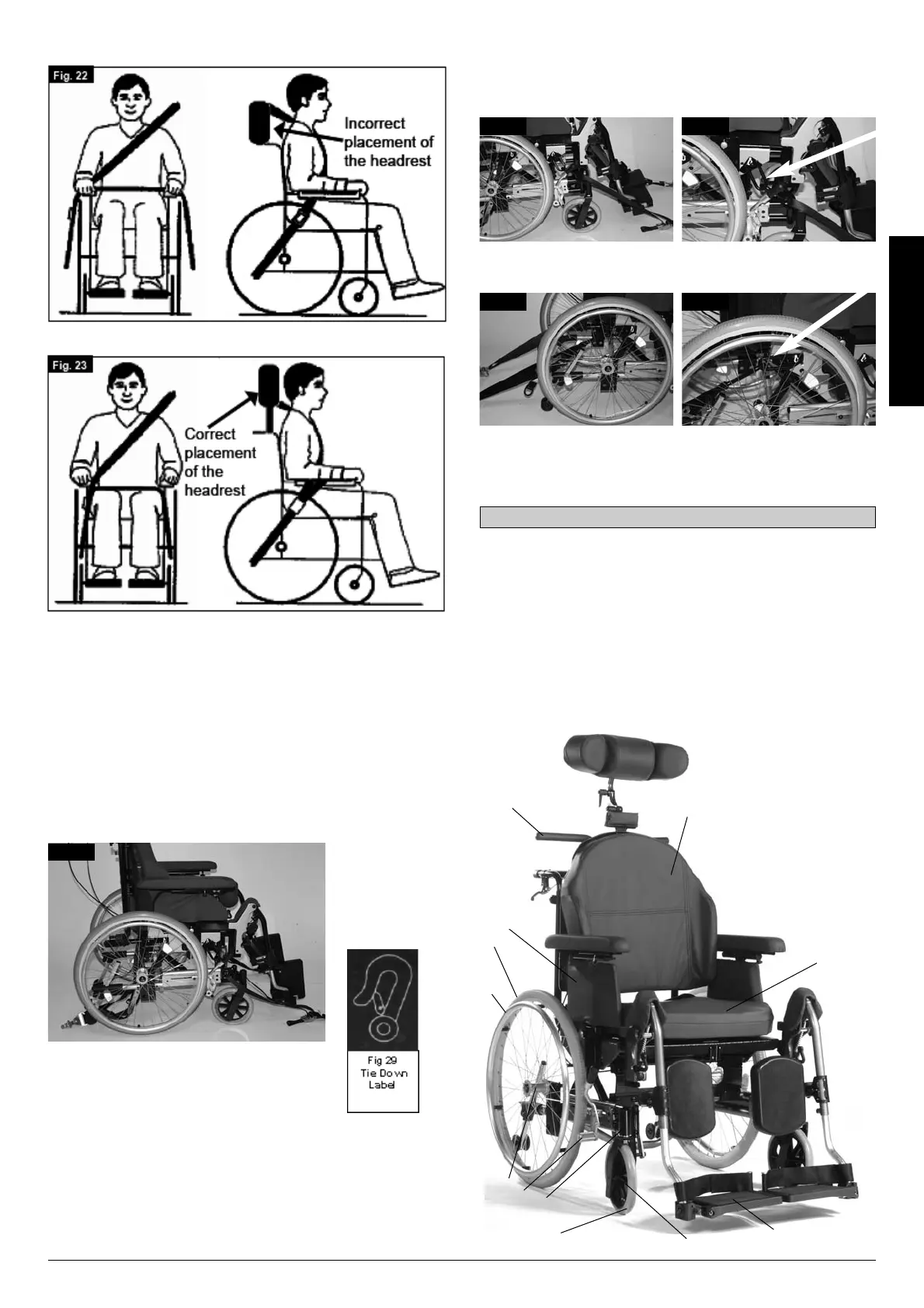

Transportability – positioning of wheelchair tie down
restraints on wheelchair
Fig. 24
The wheelchair secured with front and rear wheelchair tie down
restraints. Positioning of the restraint straps is shown in more detail
below.
Position of the front wheelchair tie down restraint and the tie down
position.
Fig. 25 Fig. 26
Position of the rear wheelchair
tie down restraint and the tie
down position on the wheelchair.
Fig. 27 Fig. 28
