Seat Section
Pelvic Tilt
Pelvic Tilt Bar

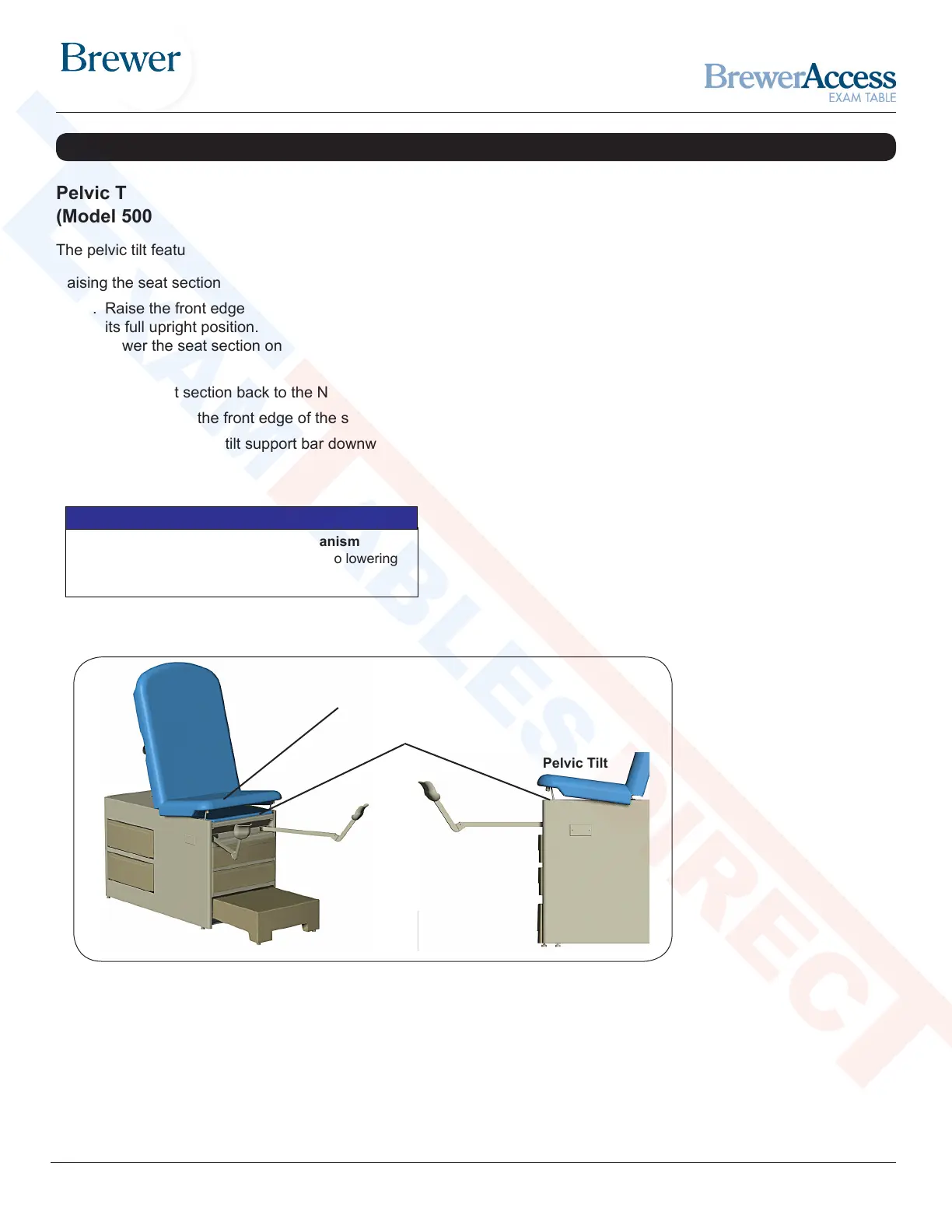

Figure 14. Pelvic Tilt Support Bar
Pelvic Tilt
(Model 5001 Only)
The pelvic tilt feature sets the seat angle at 0° (horizontal) or 5° (up) position.
Raising the seat section to the Pelvic Tilt Position:
1. Raise the front edge of the seat section (Figure 14).Rotate the pelvic tilt support bar upward to
its full upright position.
2. Lower the seat section onto the pelvic tilt support bar.
Lowering the seat section back to the Normal Position:
1. Slightly raise the front edge of the seat section.
2. Rotate the pelvic tilt support bar downward and lower the seat section into its prone position.
Lowering the Pelvic Tilt Mechanism
Patient must be removed from table prior to lowering
the pelvic tilt mechanism.
NOTICE
TABLE ADJUSTMENTS (CONTINUED)
