3. Remove the table from the shipping pallet lifting at the correct lift points indicated in Figure 3. The leg support
may be used for lifting.
4. Position the table in the desired room location.
5. Remove plastic surrounding table. DO NOT use a knife or any sharp object that could damage the upholstery.
Table weighs approximately 315 lbs.
NOTICE
AVOID HANDLING DAMAGE
• To avoid damaging the table lift only at points indicated
in Figure 3.
• Do Not use stirrup or stirrup beams for lifting table.
NOTICE
Leveling the Table
A leveling screw pad is located at each corner under the table’s base (see Figure 4). Adjust the four leveling pads, by turning
them up or down, using Method 1 or Method 2 to achieve a solid, level installation. Test step by pulling out. If step drags on
oor or is difcult to pull out, adjust the front table levelers (not the step levelers) out 1 turn at a time until step pulls out easily.
Method 1 - Raise corner of table using a pry bar on a wooden block. Insert another wooden block under corner. Adjust
leveler, and remove corner block.
Method 2 - One or two people raise the front end of the table by pulled out leg support. Rear of table can be raised by
pushing the top rear pass-through drawer to one side and using the drawer opening as a hand hold.

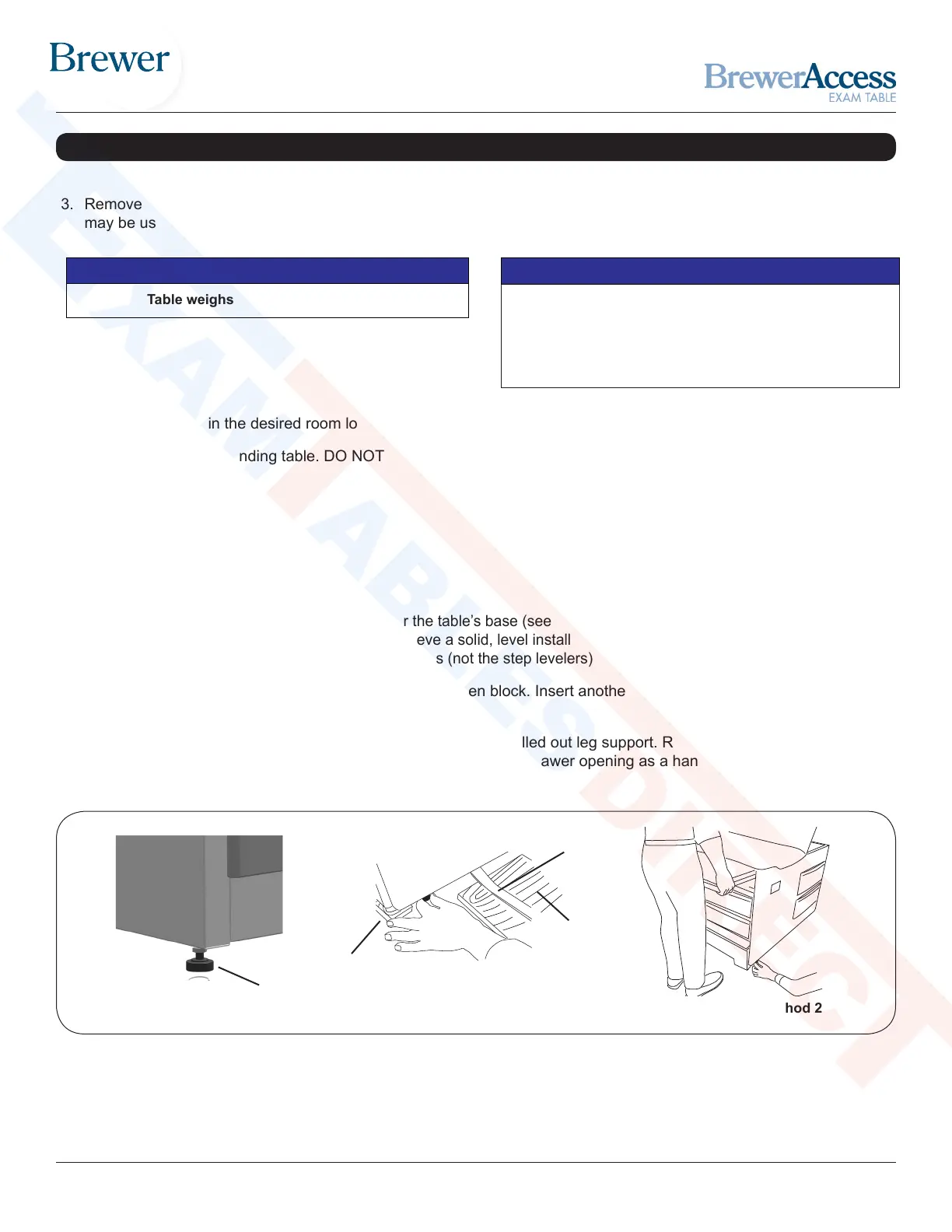

Figure 4. Leveling Screw Pad (located under table)
INSTALLATION (CONTINUED)
Leveling Screw Pad Adjusting Leveler Method 1
Pry Bar
Wooden
Block
Wooden
Block
Adjusting Leveler Method 2
