Briggs & Stratton 076000NG User Manual

44
2
7. Reinstall the 15 Amp fuse in the system
control panel.
8. Turn SYSTEM switch to AUTO.
9. While observing the meter, push and hold
the MANUAL OVER-RIDE button. Battery
voltage should be measured. Turn
SYSTEM switch to OFF.
• If battery voltage is measured, proceed
to Step 10.
• If no voltage is measured, repair/
replace wiring between Pin #4, Wire
#14 on the CMA and Pin #15 ,Wire
#14A on the ECU.

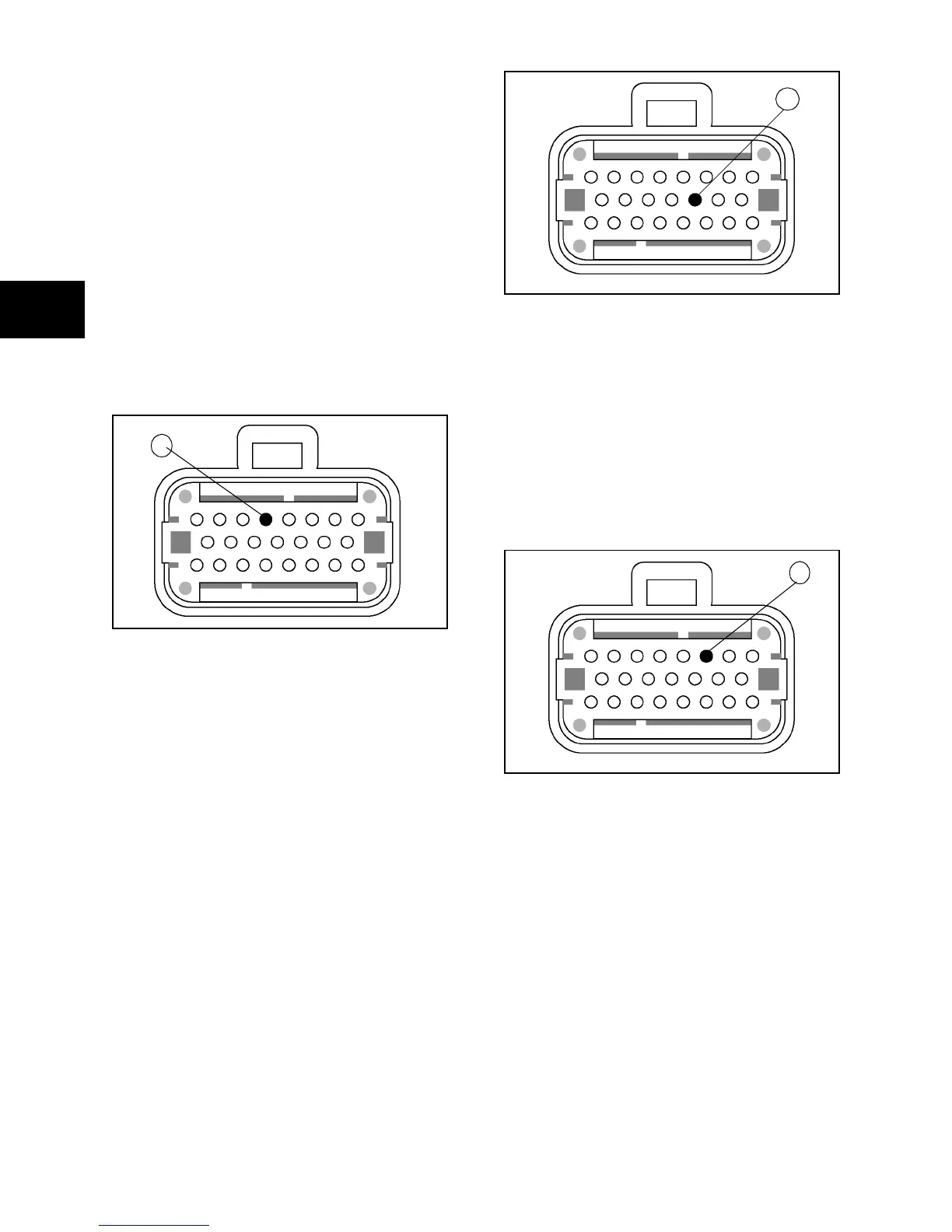

10. Insert positive (+) meter test lead to Pin
#5, Wire #14B and the negative (-) meter
test lead to negative (-) battery terminal
(Figure 41).
Figure 41
11. Turn SYSTEM switch to AUTO.
12. While observing the meter, push and
hold the MANUAL OVER-RIDE button.
Battery voltage should be measured.
Turn SYSTEM switch to OFF.
• If battery voltage is measured, proceed
to Step 13.
• If no voltage is measured, repair/
replace wiring between Pin #4, Wire
#14A on the CMA and Pin #5 , Wire
#14B on the ECU.
13. Insert positive (+) meter test lead to Pin
#11, Wire #15A and negative (-) meter
test lead to battery negative (-) terminal.
Battery voltage should be measured
(Figure 42).
Figure 42
• If battery voltage is measured, proceed
to Step 14.
• If no voltage is measured, repair/
replace fuses and/or wiring between
the positive (+) battery terminal and
Pin #11, Wire #15A on the ECU.
14. Insert positive (+) meter test lead toPin
#3, Wire #56A and negative (-) meter test
lead to battery (-) negative terminal.
Battery voltage should be measured
(Figure 43).
Figure 43
• If battery voltage is measured, proceed
to Step 15.
• If no voltage is measured, repair/
replace fuses, wiring and/or power
relay between positive(+) battery
terminal and Pin #3,Wire #56A on the
ECU.
15. Set meter to measure Ohms (Ω).
16. Insert one test lead into Pin #22 and the
other meter test lead into Pin #23 (Figure
44).
5
11
3
