Briggs & Stratton Power Products Home Generator System
Owners Manual

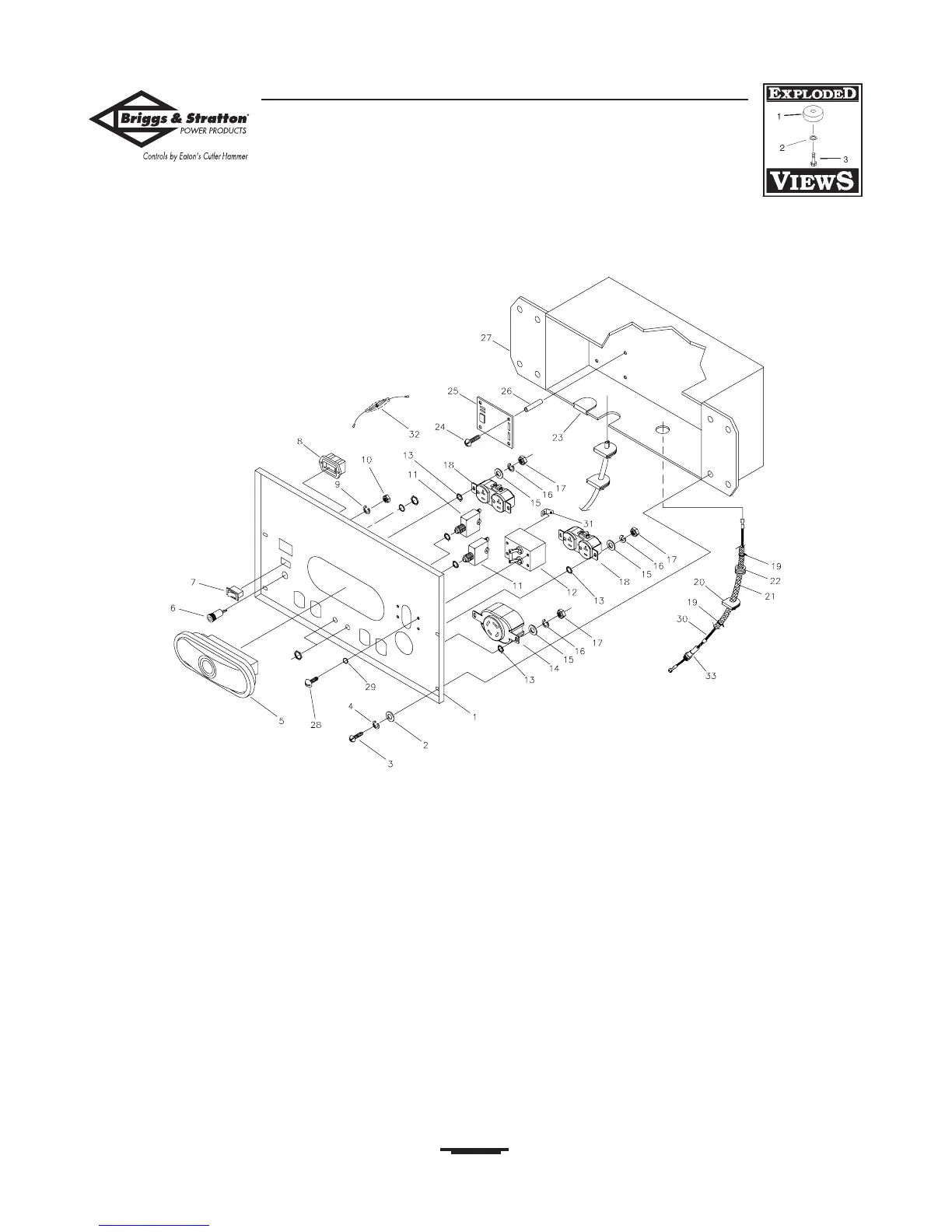

CONTROL PANEL EXPLODED VIEW AND PARTS LIST
Item Part # Qty. Description
1 BB4689GS 1 PANEL, Control
2 23897GS 4 WASHER, Flat
3 49226GS 4 WASHER, Lock
4 91526GS 4 MACHINE SCREW, Phllps Pn Hd
5 B4695GS 1 LIGHT, 12V Backup
6 B4694GS 1 JACK, Coaxial DC Power
7 20984GS 1 SWITCH, Rocker (On - Off)
8 77604GS 1 METER, Hour, Hobbs
9 43182GS 2 WASHER, Lock
10 51714GS 2 NUT
11 75207GS 2 CIRCUIT BREAKER, 20A Manual
Reset
12 82081GS 1 BREAKER, 30A Manual 2-Pole
13 23365GS 6 WASHER, Shakeproof
14 43437GS 1 OUTLET, 120/240V - 30A
15 43180GS 6 WASHER, Flat
16 22264GS 6 WASHER, Lock
17 51715GS 6 NUT, Hex
Item Part # Qty. Description
18 68759GS 2 OUTLET, 120V - 20A Duplex
19 28739AGS 2 WRAP, Black Tie
20 84135GS 1 GROMMET, Rubber
21 84409GS 1 SLEEVING, Flexo
22 B1127GS 1 GROMMET, Rubber
23 84242GS 1 GROMMET, Plastic
24 64526GS 8 SCREW, Self Tapping
25 83970GS 1 BOARD, System Control
26 64525GS 4 STAND OFF, Hex
27 B92069GS 1 BOX, Control Panel
28 36900GS 4 MACHINE SCREW, Phllps Pn Hd
29 23364GS 4 WASHER, Shakeproof
30 190914GS 1 ASSY,Wire Harness
31 74138GS 1 ADAPTER, Male Disconnect
32 B5112GS 1 ASSY, Diode
33 A3746GS 1 ASSY, Fuse Holder
A3747GS 1 FUSE, 10A Normal BLO
(Included with Item 33)

Briggs & Stratton Home Generator System Specifications

Electrical Specifications

rated maximum load current at 25°C/77°F, LP	83.3 Amps
rated AC voltage	240 Volts
phase	Single phase
rated frequency	60 Hertz

Operating Environment

normal operating range	-20°F (-28.8°C) to 104°F (40°C)
output sound level at normal load	68 dB(A) at 23 ft. (7 m)

Weight and Dimensions

shipping weight	575 lb (260 kg)
