The wireless monitor receives data from the generator
every 10 minutes and displays the generator status
through 3 status icons
Pressing the SYSTEM UPDATE button will provide
current Generator Status by flashing the status icons.
When pressed, all 3 icons will flash until the generator
status is received.
Generator Status
Monitor/Generator
Status Codes
• Wireless Communication Lost - the wrench icon
will flash 20 fast pulses, then pause for 5 seconds,
and repeat the sequence until communication has
been restored. Communication lost issues can
typically be resolved by moving the wireless monitor
closer, within the home, to the standby generator.
See Optional Router Accessory Kit
• Linking Error or Not Linked - the wrench icon will
light red for 4 seconds, pause for 4 seconds, and
repeat the sequence until a successful link is
completed.
• During the weekly exercise cycle, the generator
will run for 20 minutes, but it will not supply power to
the home. During the exercise cycle, the monitor will
continue blinking the green shield icon.
Service Code Descriptions - name and number of
flashes are listed on the back side of the wireless
monitor.
Icon Lighting Codes
• No status icons illuminated - Generator in OFF
mode or check and replace batteries.
• Batteries Inserted - the shield icon will light for 5
seconds.
Optional Router Accessory Kit
The monitor has a line of sight range of up to 200 feet,
but this distance will decrease if the signal has to pass
through walls or other objects.
If upon installation and setup of the wireless monitor
system communication is not reliable, Optional Router
Accessory Kit may be needed. See Authorized Dealer
for more information.
The router is a small extender that can be used to
expand the range of a generator wireless network so
that network devices can seamlessly communicate
with one another.
The router can be plugged into any standard 110VAC
outlet within the home.
None of the service needed codes are cleared at the
wireless monitor. All alerts must be cleared at the
generator control panel.
11
red SERVICE NEEDED
BUTTON SYSTEM UPDATE
green GENERATOR READY
green GENERATOR POWER
COLOR / ICON

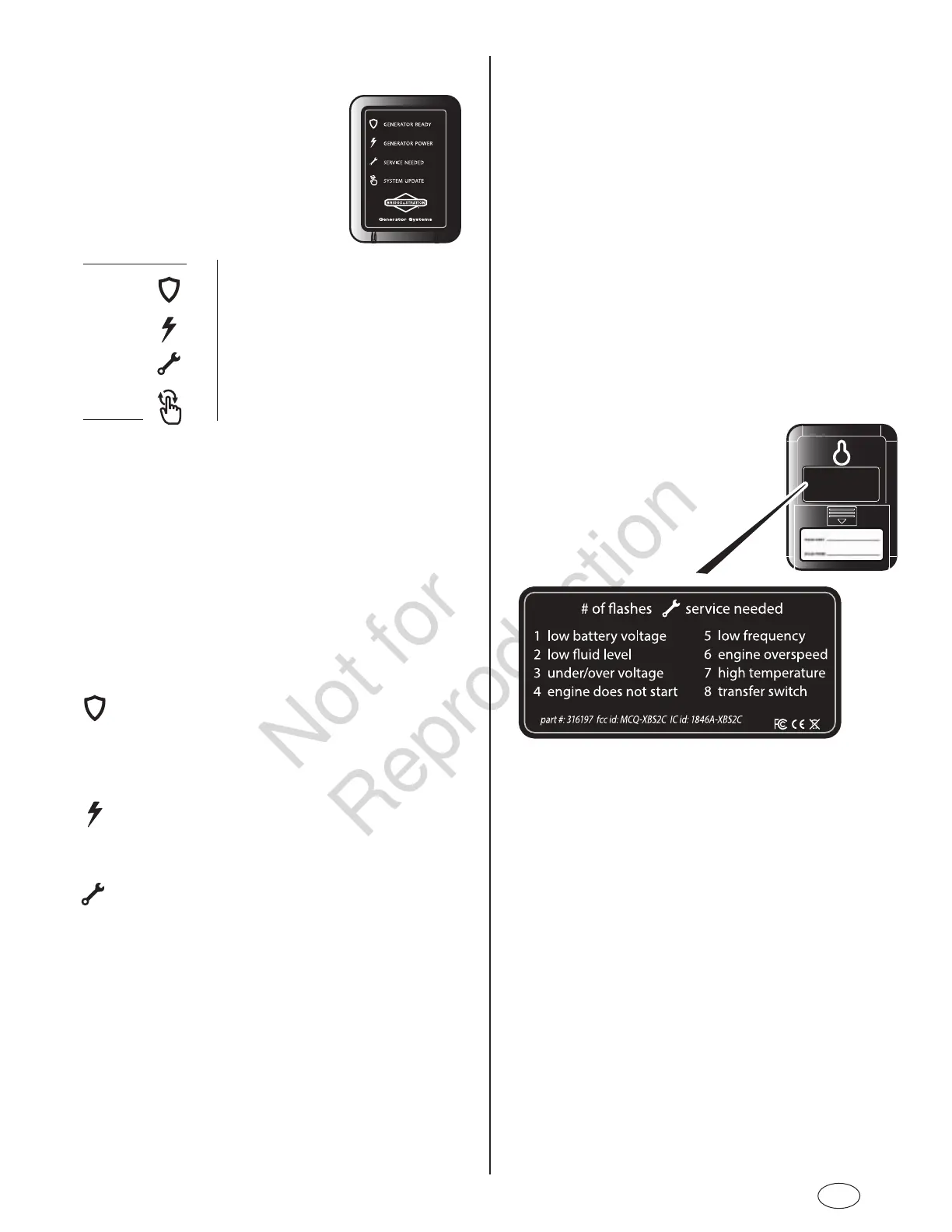

GENERATOR READY - When active, the shield
icon will flash green once every 7 seconds. The
green shield icon indicates that the generator is
in AUTO mode and that it is ready to run in the
event of a loss of utility power.
GENERATOR POWER - When active, the power
icon will flash green every 7 seconds. The green
power icon indicates that the generator is
supplying power.
SERVICE NEEDED - When the wrench icon
flashes red, refer to the service codes on the
back of the monitor or to the troubleshooting
guide in the generator manual. Call the nearest
authorized service dealer if problem cannot be
fixed.
