Option 2
OFF BOARD RADIO to be installed.

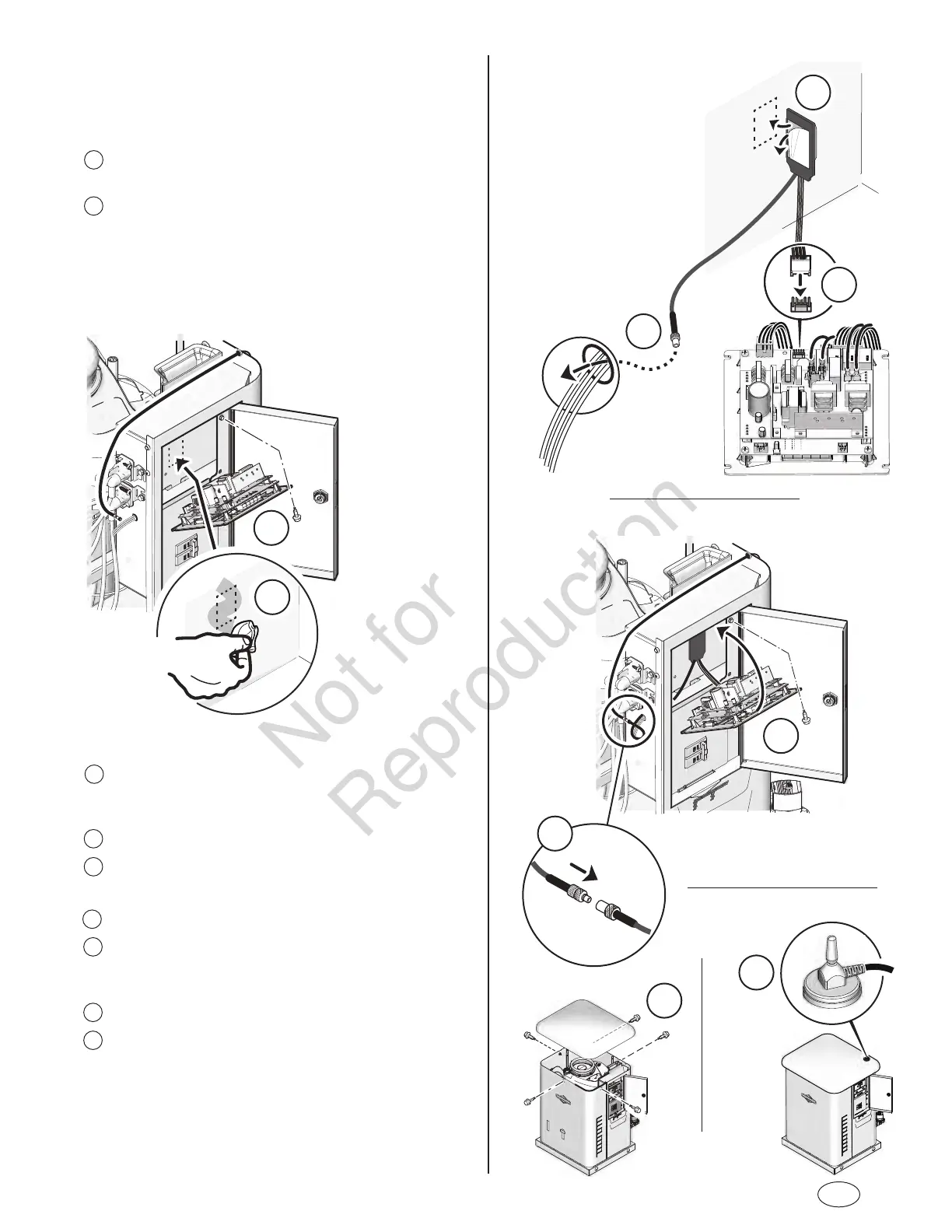

6 Remove screws on control panel and
tilt panel forward.
7 Prepare the OFF BOARD RADIO mounting surface
by cleaning with an alcohol wipe or other cleaning
solution. Make sure surface is dry before
proceeding to Step 8.
11
8 Remove RED plastic from adhesive on OFF
BOARD RADIO. Attach radio to inside wall under
control panel. Press down firmly.
9 Plug connector into control panel as shown.
10 Insert wire for antenna through side panel harness
hole.
11 Reinstall control panel and tighten screws securely.
12 Insert antenna wire to the OFF BOARD RADIO wire
until it clicks. Route wire away from sharp objects
and wire tie
13 Reinstall the roof.
14 Mount the antenna to the top of the roof.
After installation has been completed, replace fuses in
transfer switch, replace 15 Amp fuse in control panel,
and set generator circuit breaker to its ON position.
Go to: LINK MONITOR WITH GENERATOR.
