Product description
BRIGON 500 NT measures CO
2
, CO, differential pressure as well as flue gas and ambient air
temperature. The instrument calculates O
2
, CO
undiluted
, lambda, stack loss q
A
and efficiency
(Eta).
The data are displayed in function oriented measuring windows or user selectable window in a
back-lighted display.
When storing a reading, as for example Oxygen concentration O
2
, the readings of flue gas
temperature and ambient air temperature as well as the calculated values q
A
, differential
temperature, Eta and CO
2
are stored and can be optionally printed.
Sensor calibration takes max. 90 seconds and is performed automatically after switching on
the analyser.
Flue gas analyser has an integral watertrap with particle filter. Damp from the flue gas is
condensed and collected in the watertrap. The filter prevents smut particles from getting into
the analyser.
Please, note that your flue gas analyser is a product designed, manufactured and sold solely
for the purpose of flue gas analysis of burners. So, please, use your analyser and its
accessories only for this purpose.
Should you require to use it for other purposes, please obtain our written permission to do so
first.
Keep these operating instructions in a safe place close to your analyser as quick
reference should the need arise.

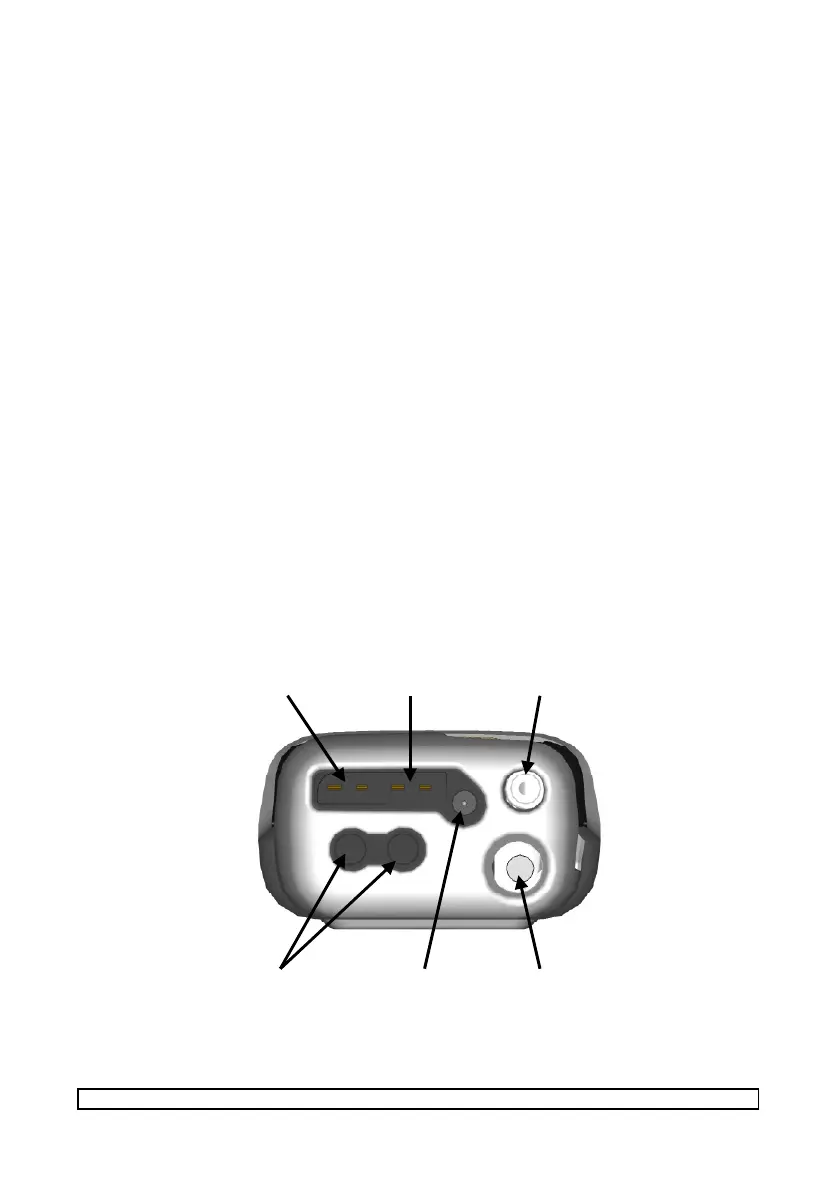

View of the plug connections
Probe ambient
air temperature
Probe flue gas
temperature
Gas
connection
Condensate outflow
with rubber plug
Charger
socket
Differential pressure
connection P1 + P2
