2.Installation

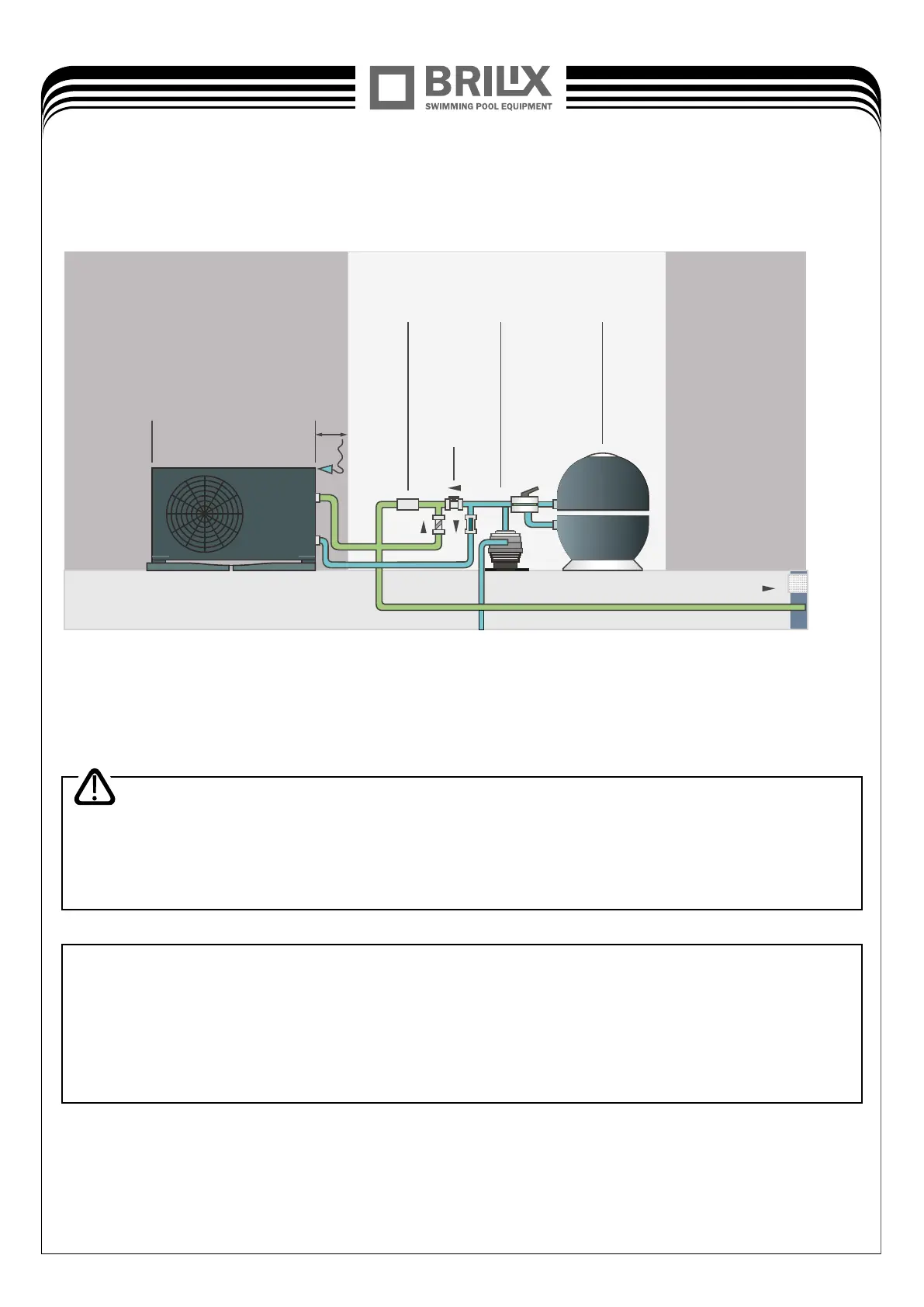

2.1 Installation illustration
NOTE: The factory only provides the heat pump unit. The other items in the illustration are necessary spare
parts for the water system which are provided by users or installers.
ATTENTION:
Please follow these steps when operating the first time
1. Open valve and charge water.
2. Make sure that the pump and the water-in pipe have been filled with water.
3. Close the valve and start the unit.
Horizontal
Water
treatment
By-pass
Pump Filter
Hot water to pool
800 mm
min.
- Please always keep the heat pump in the ventilation place and away from anything which
could cause fire.
- Don’t weld the pipe if there is refrigerant inside machine. Please keep the machine out of the
confined space when make gas filling.
- Action of filling gas must be conducted by professional with R32 operating license.
Important NOTE:
