Brinkmann 2400 - Grill Body Mounting

22
Step 7
Attach heat shield plate to back
panel using two M6 X 12mm bolts
with star washers.
Step 8
Attach heat shield plate to front
panel using three #8 self-tapping
screws.
Step 9
Place grease cup in middle of hole
in heat shield plate.

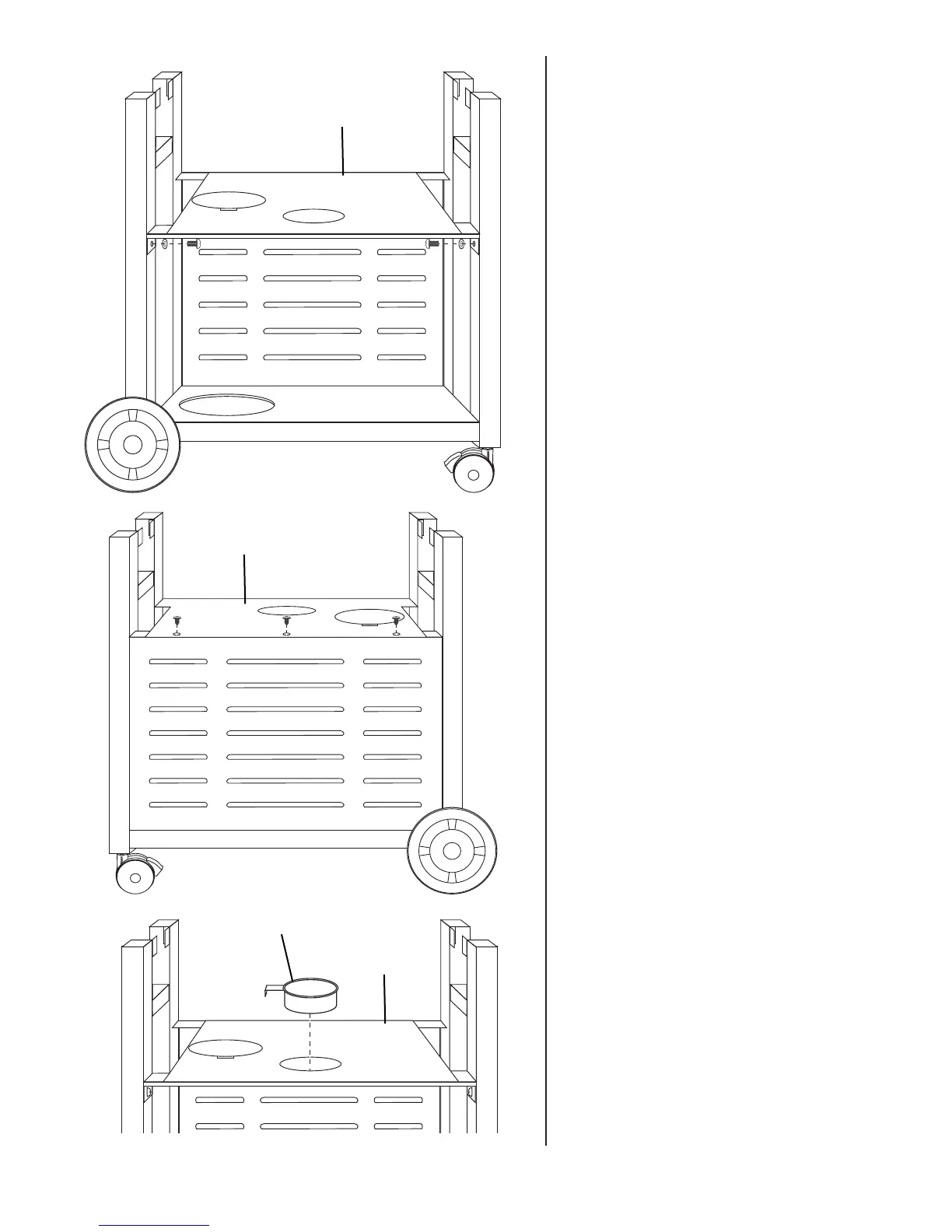

Heat Shield Plate
Grease Cup
Heat
Shield
Plate
Heat Shield Plate
