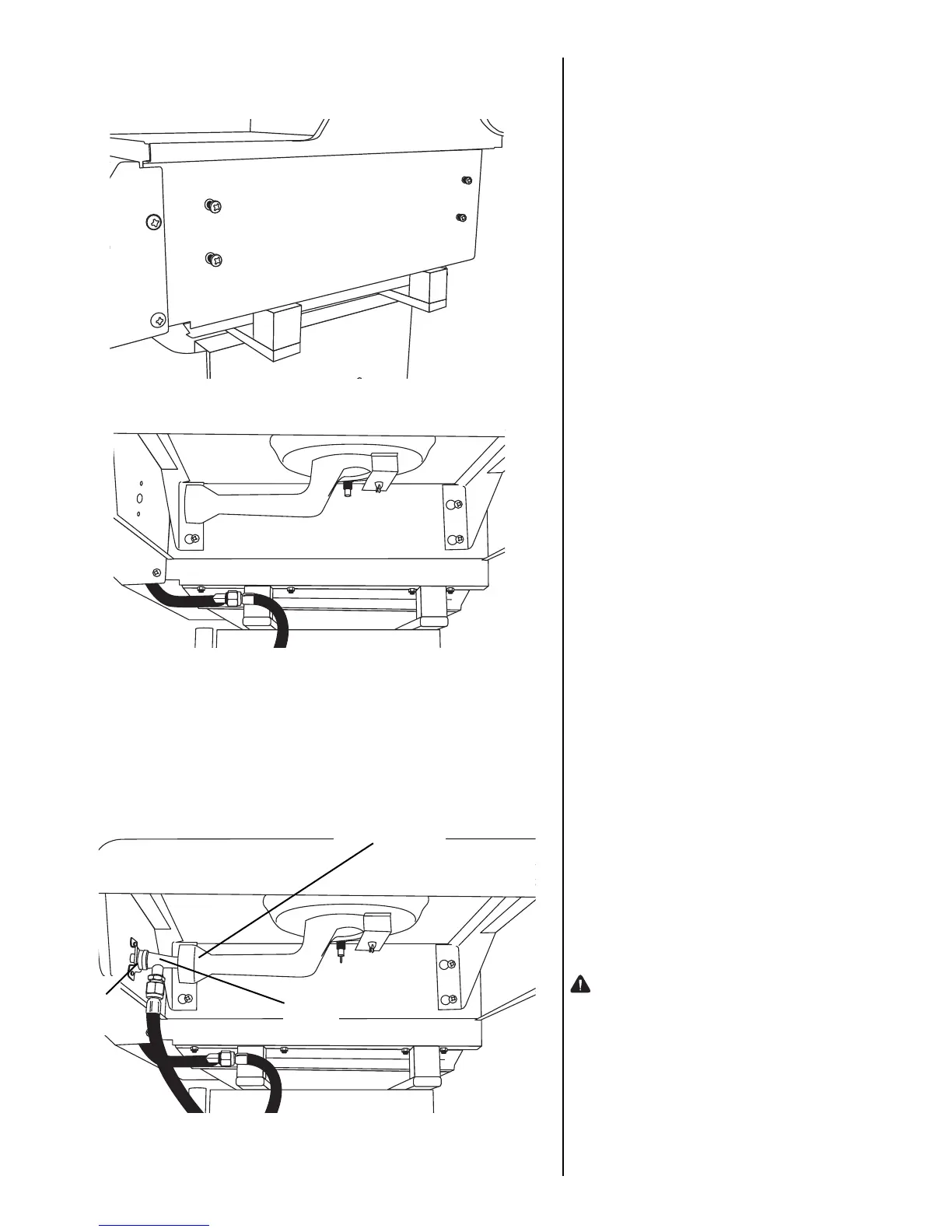

Step 9
To attach side burner to right side of
grill assembly. Insert four
M6 X 12mm bolts half-way into grill
body assembly. Place side burner
over bolts and slide toward front of
grill, then tighten securely.
Step 10
Remove two bolts and spring
washers from the side burner valve.
Insert the side burner valve stem
through the hole in the side burner
table base, then firmly seat the valve
nozzle into the burner venturi. Hold
in place while you perform Step 11.
Warning: Never use your grill
without leak testing all
gas connections and
hoses. See the section on
"Leak Testing" in this
manual for proper
procedures.
27
Side
Burner
Valve
Burner Venturi
Valve
Nozzle
To Next Page
