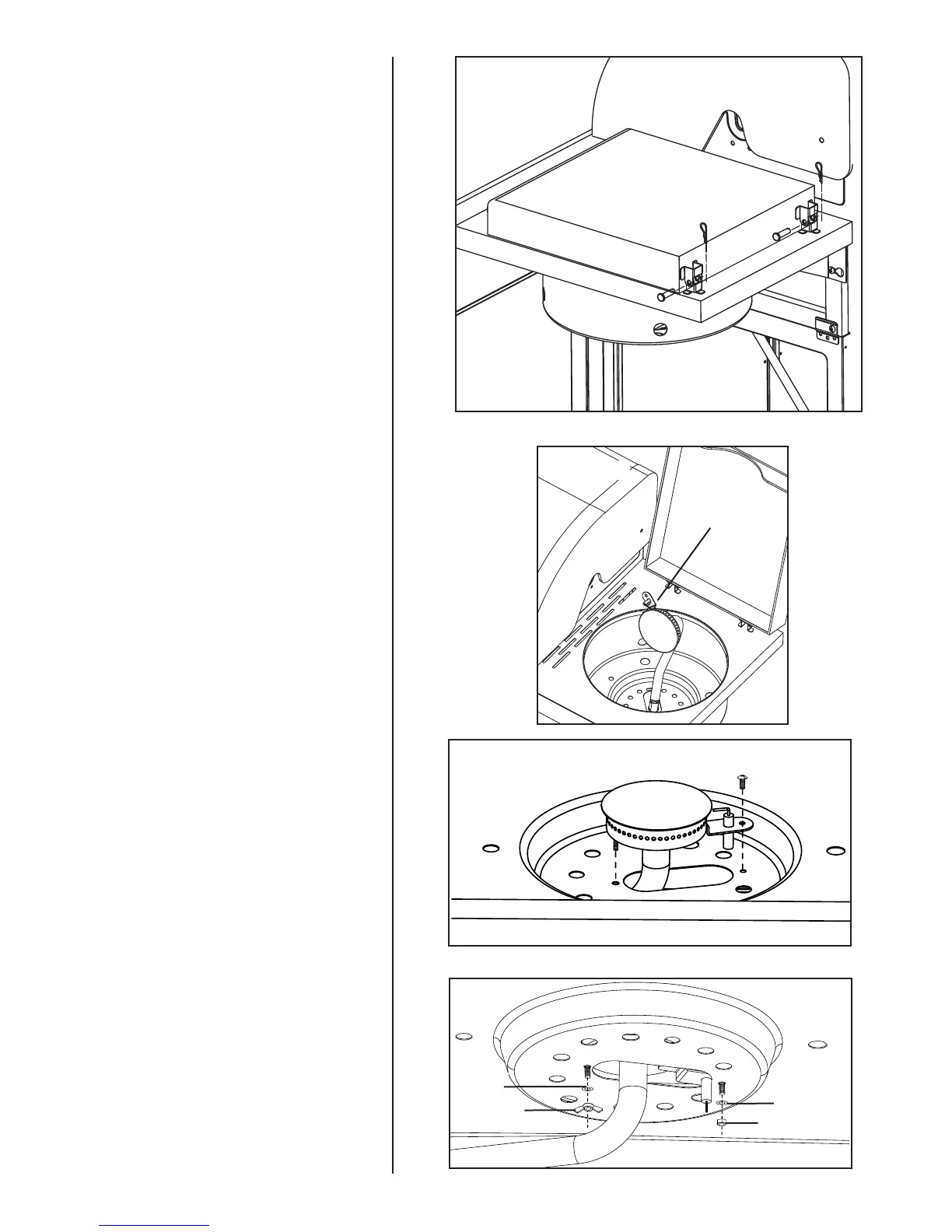

Step 17
Attach fryer lid to fryer assembly
using two fryer hinge pins
and fryer hinge cotter pins as
illustrated.
Step 18
Install the side fryer (Figure 1).
Attach one M4 X 10 mm bolt
(silver) from the top of the side
fryer to secure in place (Figure 2).
Attach two M4 washers and one
M4 nut and one wing nut to secure
the side fryer (Figure 3).
Side Fryer
Figure 1
M4 Washer
Figure 2
Figure 3
M4 Nut
Wing Nut
M4
Washer
