6
Smokestack
Smokestack Damper
Smokestack
Zinc
Push Nut
Smokestack Pilot
(to tighten the fit, spread slit
with large screwdriver).
Step 12

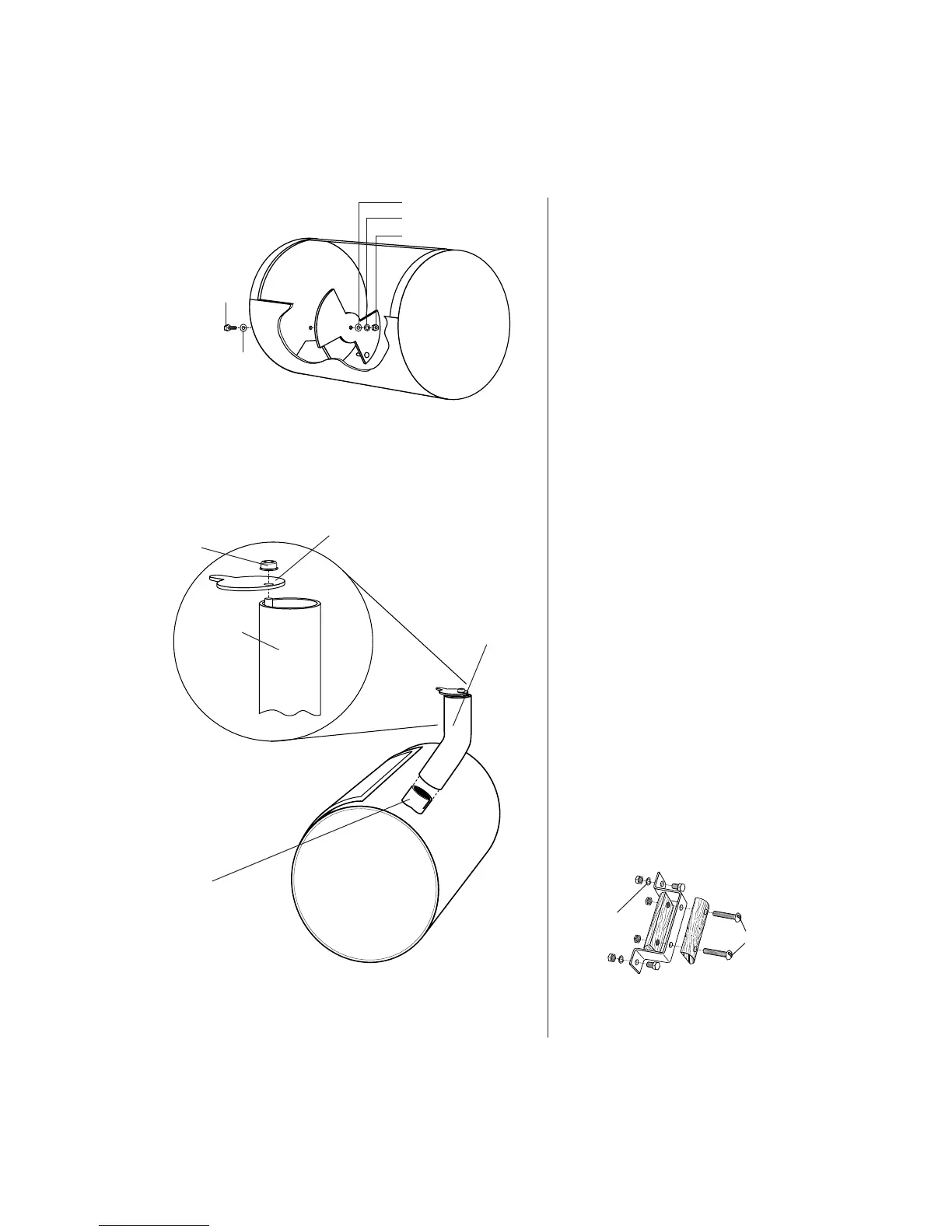

To install air vent butterfly damper, open
the smoker lid and attach damper to
inside of smoker as illustrated. Do not
overtighten as this will make the air vent
difficult to open and close.
Step 13
Install smokestack over smokestack pilot
as illustrated.
Step 14
Install smokestack damper as illustrated.
Step 15
Attach wooden handle halves to metal
bracket as shown. Fasten one handle to
above side air vent and the other handle
to smoker lid.
4" x w" Bolt
4" Flat Washer
4" Flat Washer
4" Lock Washer
4" Hex Nut
4" Lock
Washer
10-24 Screws
To Next Page
