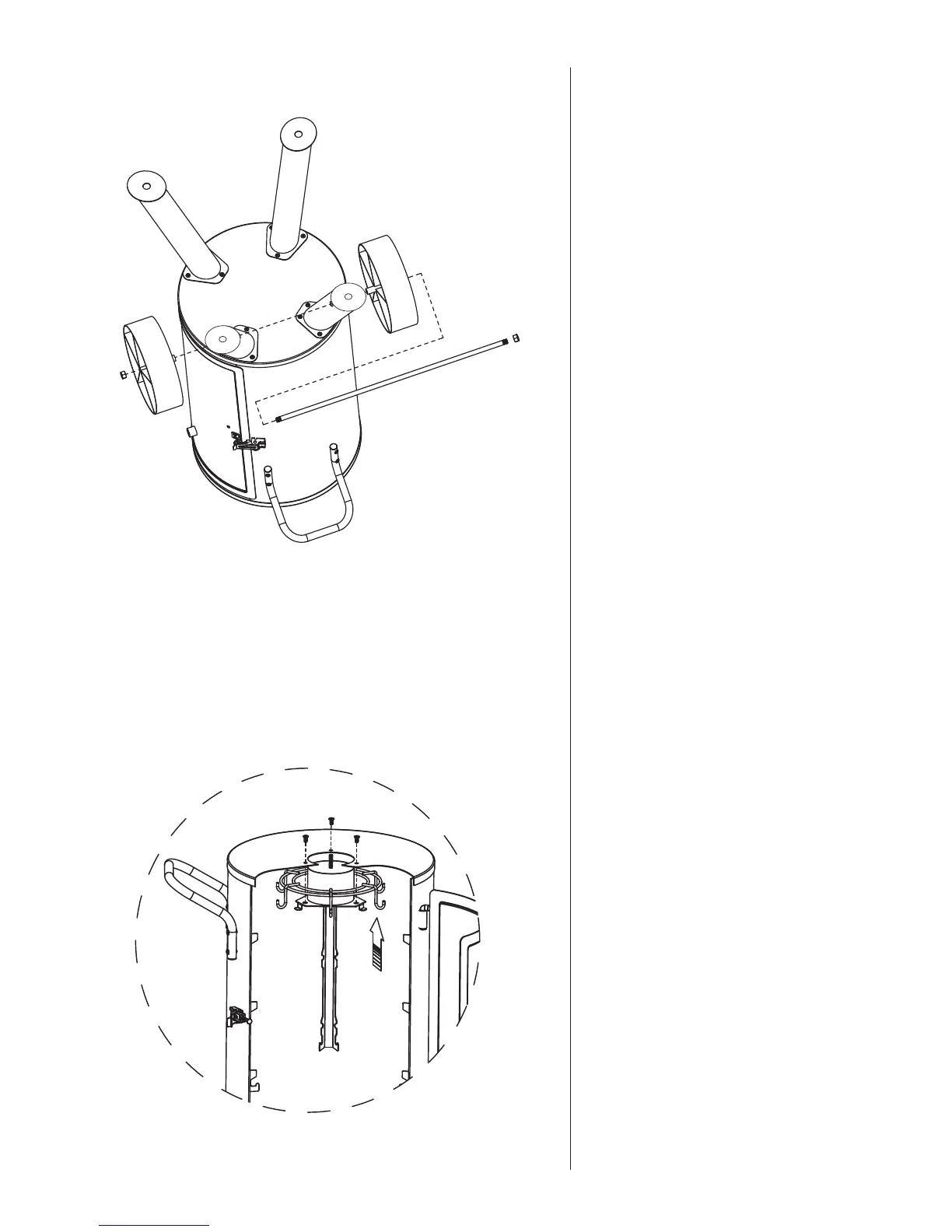

Step 3
Insert wheel axle through wheels and legs
as illustrated and tighten securely with two
M12 nuts.
Note: With the help of a friend, turn the
smoking chamber to its upright
position.
Step 4
Attach smokestack and meat hooks
assembly to the smoking chamber using
three M6 x 12 mm bolts as illustrated.
6
