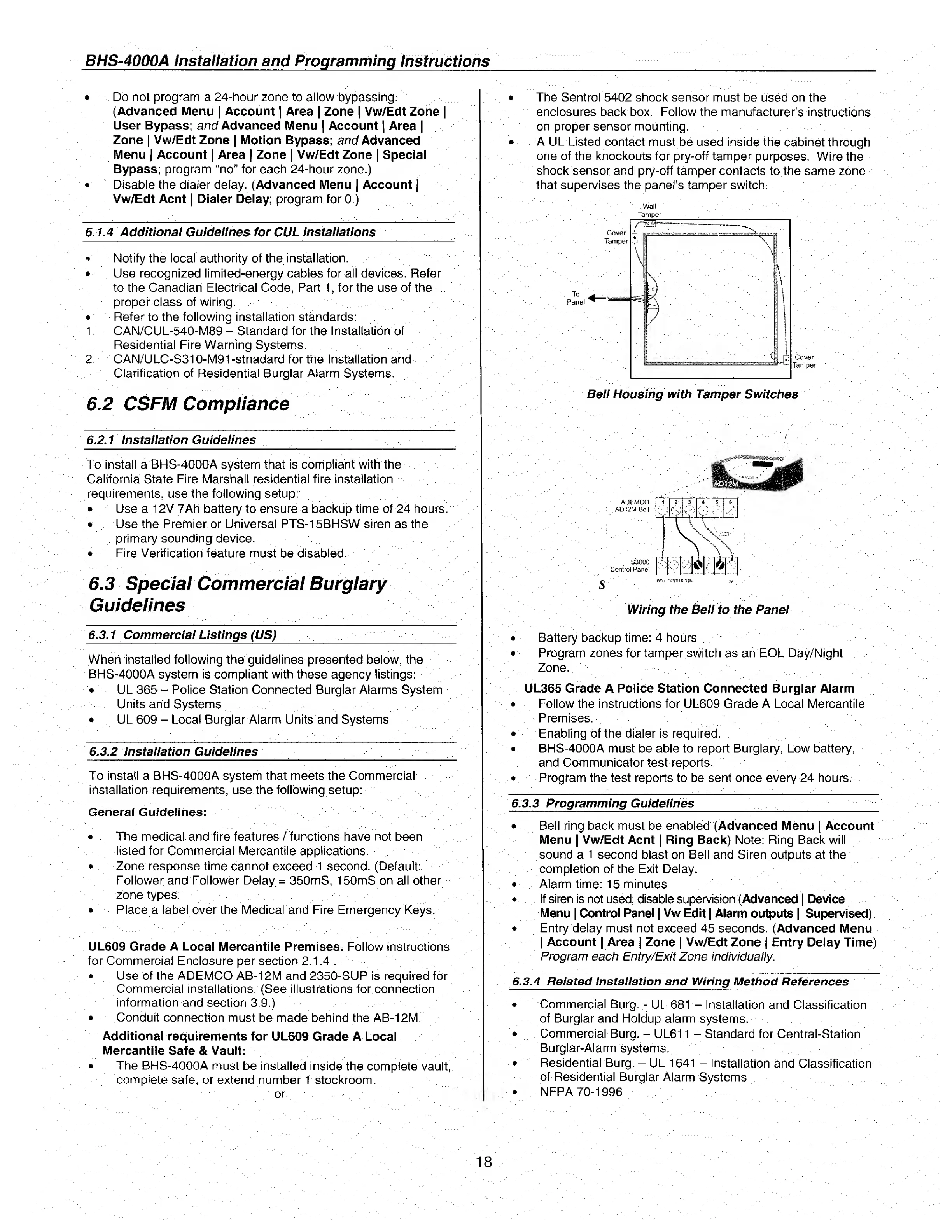

BHS-4000A Installation and Progtamming instructions
• Do not program a 24-hour zone to allow bypassing.
(Advanced Menu | Account | Area | Zone | Vw/Edt Zone |
User Bypass; and Advanced Menu | Account | Area |
Zone | Vw/Edt Zone | Motion Bypass; and Advanced
Menu | Account | Area | Zone | Vw/Edt Zone | Special
Bypass; program “no” for each 24-hour zone.)
• Disable the dialer delay. (Advanced Menu | Account |
Vw/Edt Acnt | Dialer Delay; program for 0.)
6.1.4 Additional Guidelines for CUL installations
• Notify the local authority of the installation.
• Use recognized limited-energy cables for all devices. Refer
to the Canadian Electrical Code, Part 1, for the use of the
proper class of wiring.
• Refer to the following installation standards:
1. CAN/CUL-54CFM89 - Standard for the Installation of
Residential Fire Warning Systems.
2. CAN/ULC-S310-M91 -stnadard for the Installation and
Clarification of Residential Burglar Alarm Systems.
6.2 CSFM Compliance
The Sentrol 5402 shock sensor must be used on the
enclosures back box. Follow the manufacturer’s instructions
on proper sensor mounting.
A UL Listed contact must be used inside the cabinet through
one of the knockouts for pry-off tamper purposes. Wire the
shock sensor and pry-off tamper contacts to the same zone
that supervises the panel’s tamper switch.
• .Wall
Bell Housing with Tamper Switches
6.2.1 I nstallation Guidelines
To install a BHS-4000A system that is compliant with the
California State Fire Marshall residential fire installation
requirements, use the following setup:
• Use a 12V 7Ah battery to ensure a backup time of 24 hours.
• Use the Premier or Universal PTS-15BHSW siren as the
primary sounding device.
• Fire Verification feature must be disabled.
6.3 Special Commercial Burglary
Guidelines
s
firs I FAFmi SIREN
zb.
Wiring the Bell to the Panel
6.3.1 C ommercial Listings (US)
When installed following the guidelines presented below, the
BHS-4000A system is compliant with these agency listings:
• UL 365 - Police Station Connected Burglar Alarms System
Units and Systems
• UL 609 - Local Burglar Alarm Units and Systems
6.3.2 I nstallation Guidelines
To install a BHS-4000A system that meets the Commercial
installation requirements, use the following setup:
General Guidelines:
• The medical and fire features / functions have not been
listed for Commercial Mercantile applications.
• Zone response time cannot exceed 1 second. (Default:
Follower and Follower Delay = 350mS, 150mS on all other
zone types.
• Place a label over the Medical and Fire Emergency Keys.
UL609 Grade A Local Mercantile Premises. Follow instructions
for Commercial Enclosure per section 2.1.4 ...
• Use of the ADEMCO AB-12M and 2350-SUP is required for
Commercial installations. (See illustrations for connection
information and section 3.9.)
• Conduit connection must be made behind the AB-12M.
Additional requirements for UL609 Grade A Local
Mercantile Safe & Vault:
• The BHS-4000A must be installed inside the complete vault,
complete safe, or extend number T stockroom.
or
• Battery backup time: 4 hours
• Program zones for tamper switch as an EOL Day/Night
Zone.
UL365 Grade A Police Station Connected Burglar Alarm
• Follow the instructions for UL609 Grade A Local Mercantile
Premises.
• Enabling of the dialer is required.
• BHS-4000A must be able to report Burglary, Low battery,
and Communicator test reports.
• Program the test reports to be sent once every 24 hours.
6.3.3 Programming Guidelines __
• Bell ring back must be enabled (Advanced Menu [ Account
Menu | Vw/Edt Acnt | Ring Back) Note: Ring Back will
sound a 1 second blast on Bell and Siren outputs at the
completion of the Exit Delay.
• Alarm time: 15 minutes
• If siren is not used, disable supervision (Advanced | Device
Menu | Control Panel | Vw Edit | Alarm outputs | Supervised)
• Entry delay must not exceed 45 seconds. (Advanced Menu
| Account | Area | Zone | Vw/Edt Zone | Entry Delay Time)
Program each Entry/Exit Zone individually.
6.3.4 Related Installation and Wiring Method References
• Commercial Burg. - UL 681 - Installation and Classification
of Burglar and Holdup alarm systems.
• Commercial Burg. - UL611 - Standard for Central-Station
Burglar-Alarm systems.
• Residential Burg. - UL 1641 - Installation and Classification
of Residential Burglar Alarm Systems
• NFPA 70-1996
