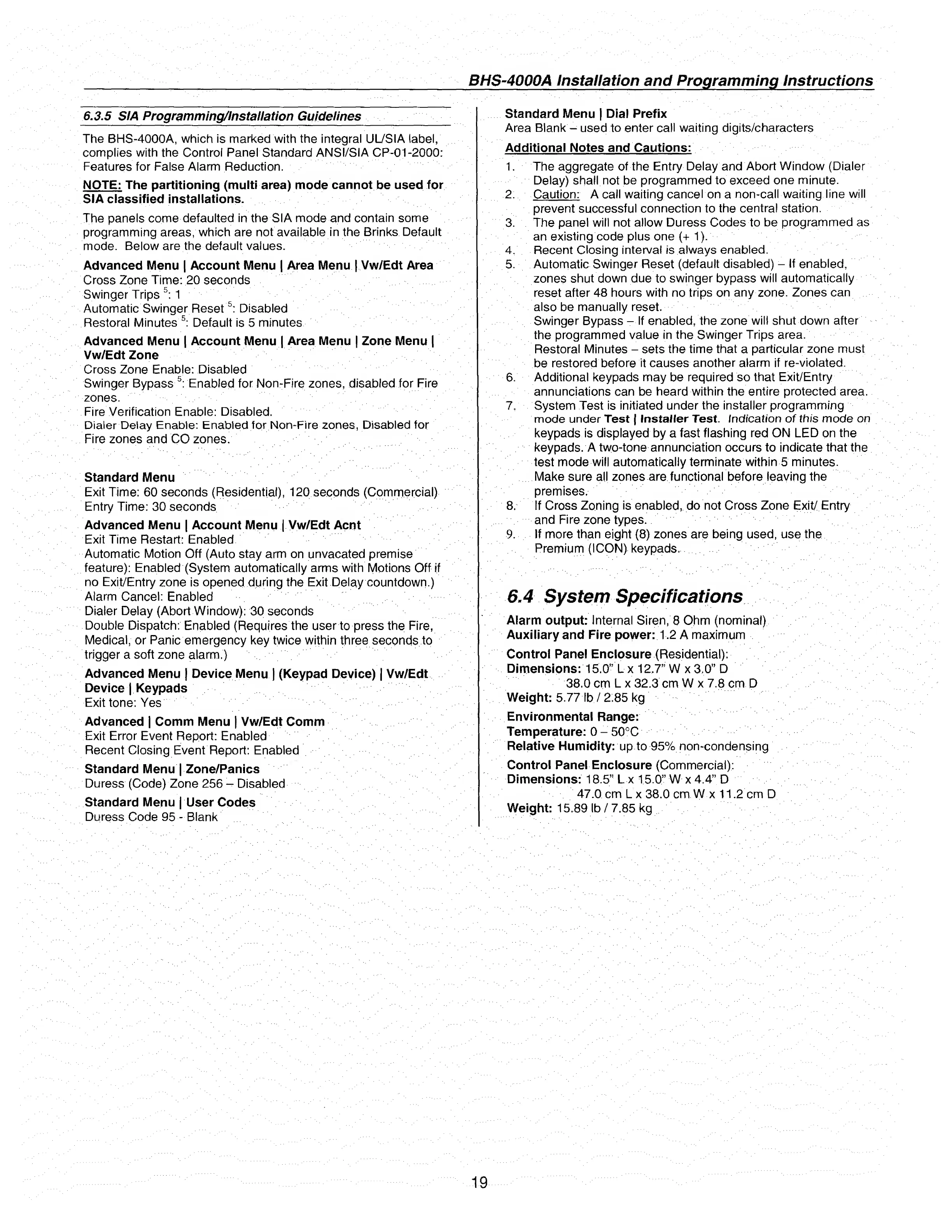

BHS-4000A installation and Proarammina Instructions
6.3.5 SIA Programming/installation Guidelines
The BHS-4000A, which is marked with the integral UL/SIA label,
complies with the Control Panel Standard ANSI/SIA CP-01-2000:
Features for False Alarm Reduction.
NOTE: The partitioning (multi area) mode cannot be used for
SIA classified installations.
The panels come defaulted in the SIA mode and contain some
programming areas, which are not available in the Brinks Default
mode. Below are the default values.
Advanced Menu | Account Menu | Area Menu | Vw/Edt Area
Cross Zone Time: 20 seconds
Swinger Trips 5 : 1
Automatic Swinger Reset 5 : Disabled
Restoral Minutes 5 : Default is 5 minutes
Advanced Menu | Account Menu | Area Menu | Zone Menu |
Vw/Edt Zone
Cross Zone Enable: Disabled
Swinger Bypass 5 : Enabled for Non-Fire zones, disabled for Fire
zones.
Fire Verification Enable: Disabled.
Dialer Delay Enable: Enabled for Non-Fire zones, Disabled for
Fire zones and CO zones.
Standard Menu
Exit Time: 60 seconds (Residential), 120 seconds (Commercial)
Entry Time: 30 seconds
Advanced Menu | Account Menu | Vw/Edt Acnt
Exit Time Restart: Enabled
Automatic Motion Off (Auto stay arm on unvacated premise
feature): Enabled (System automatically arms with Motions Off if
no Exit/Entry zone is opened during the Exit Delay countdown.)
Alarm Cancel: Enabled
Dialer Delay (Abort Window): 30 seconds
Double Dispatch: Enabled (Requires the user to press the Fire,
Medical, or Panic emergency key twice within three seconds to
trigger a soft zone alarm.)
Advanced Menu | Device Menu | (Keypad Device) | Vw/Edt
Device | Keypads
Exit tone: Yes
Advanced | Comm Menu | Vw/Edt Comm
Exit Error Event Report: Enabled
Recent Closing Event Report: Enabled
Standard Menu | Zone/Panics
Duress (Code) Zone 256 - Disabled
Standard Menu | User Codes
Duress Code 95 - Blank
Standard Menu | Dial Prefix
Area Blank - used to enter call waiting digits/characters
Additional Notes and Cautions:
1. The aggregate of the Entry Delay and Abort Window (Dialer
Delay) shall not be programmed to exceed one minute.
2. Caution: A call waiting cancel on a non-call waiting line will
prevent successful connection to the central station.
3. The panel will not allow Duress Codes to be programmed as
an existing code plus one (+ 1).
4. Recent Closing interval is always enabled.
5. Automatic Swinger Reset (default disabled) - If enabled,
zones shut down due to swinger bypass will automatically
reset after 48 hours with no trips on any zone. Zones can
also be manually reset.
Swinger Bypass — If enabled, the zone will shut down after
the programmed value in the Swinger Trips area.
Restoral Minutes - sets the time that a particular zone must
be restored before it causes another alarm if re-violated.
6. Additional keypads may be required so that Exit/Entry
annunciations can be heard within the entire protected area.
7. System Test is initiated under the installer programming
mode under Test | Installer Test. Indication of this mode on
keypads is displayed by a fast flashing red ON LED on the
keypads. A two-tone annunciation occurs to indicate that the
test mode will automatically terminate within 5 minutes.
Make sure all zones are functional before leaving the
premises.
8. If Cross Zoning is enabled, do not Cross Zone Exit/ Entry
and Fire zone types.
9. If more than eight (8) zones are being used, use the
Premium (ICON) keypads.
6.4 System Specifications
Alarm output: Internal Siren, 8 Ohm (nominal)
Auxiliary and Fire power: 1 2 A maximum
Control Panel Enclosure (Residential):
Dimensions: 15.0” Lx 12.7” W x 3.0” D
38.0 cm L x 32.3 cm W x 7.8 cm D
Weight: 5.77 lb / 2.85 kg
Environmental Range:
Temperature: 0 - 50°C
Relative Humidity: up to 95% non-condensing
Control Panel Enclosure (Commercial):
Dimensions: 18.5” L x 15.0” W x 4.4” D
47.0 cm L x 38.0 cm W x 11.2 cm D
Weight: 15.89 lb/7.85 kg
