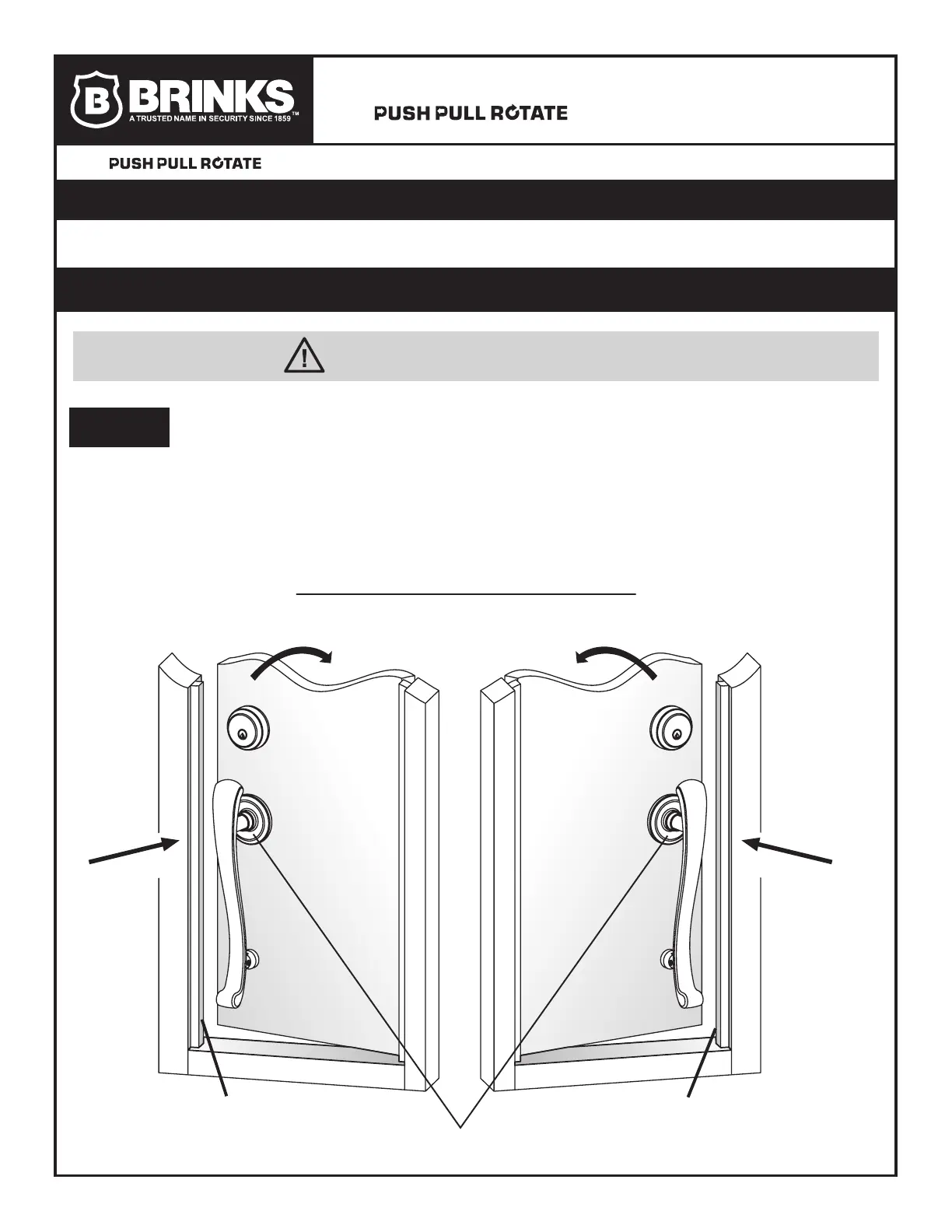

View From Outside The Room
Install on In-Swinging Doors Only
STEP 1
Door Jamb Door Jamb
NOTE: INSTALL ON IN-SWINGING DOOR ONLY.
QUESTIONS? CALL 1-800-562-5625 FOR HELP.
INSTALLATION & OPERATION INSTRUCTIONS
FOR HANDLESETS
FOR ENTRY DOOR HANDLESETS WITH INTERIOR LEVER.
Main Lock Body
In-swinging Door In-swinging Door
PUSH
PUSH
FOR REPLACEMENT INSTALLATIONS ONLY.
FOR NEW INSTALLATIONS, SEE INSTRUCTION 999-00375E_EN
FITS DOORS 1-3/8" (35 mm) TO 1-3/4" (45 mm) THICK.
a. For Push-Pull-Rotate Handlesets, the Handle Assembly is intended to go on the outside of the door.
b. Therefore, the Push-Pull-Rotate Handleset can only be installed on doors that "push" open into rooms (In-Swinging doors.)
