Cooler Operation: (cont.)
Fan Operation (cont.)
Fan Motor will not operate (cont.)
If no Volts present:

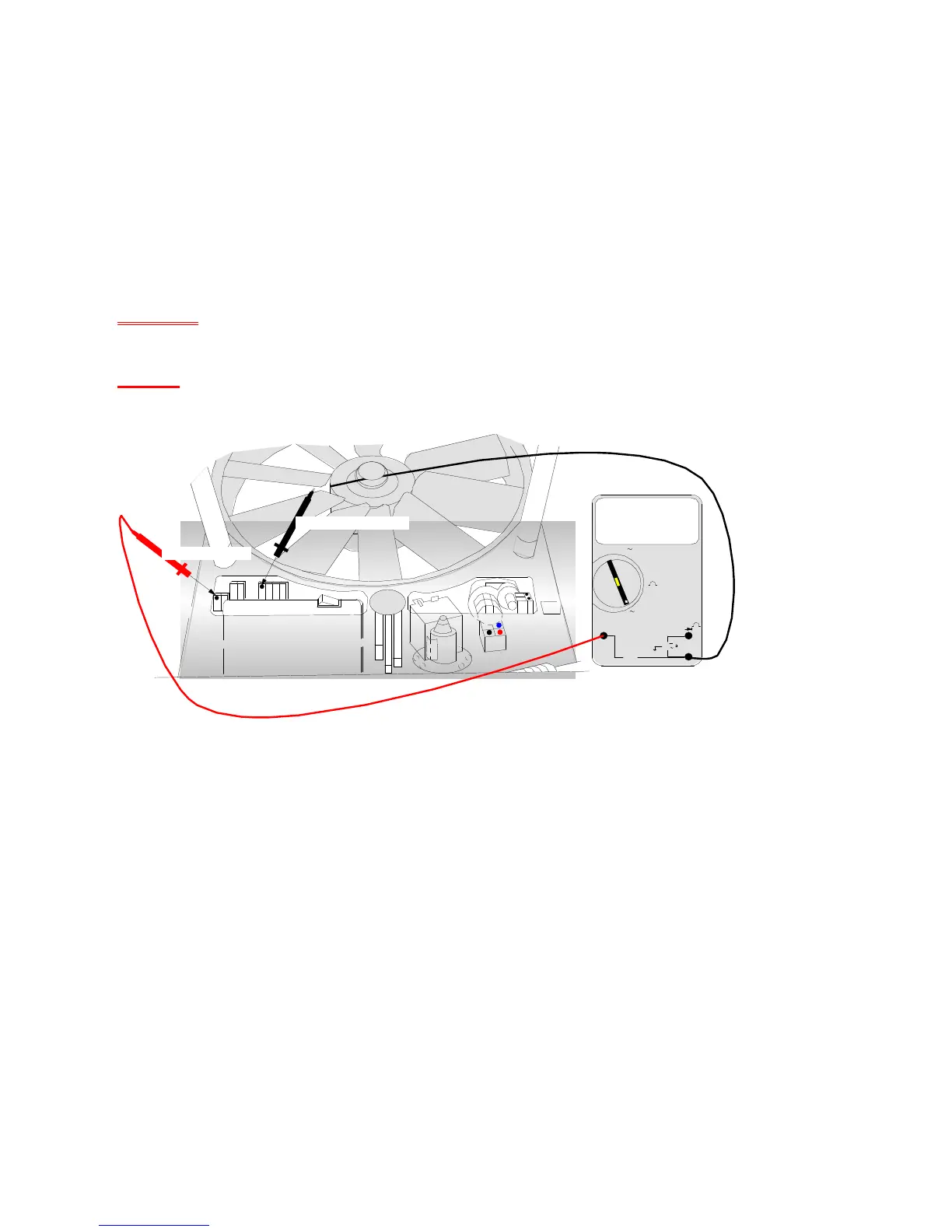

• Bridge terminals MOTOR/RUN-BROWN and MAINS/ACTIVE-IN using a
multimeter set on Amps (check current for motor - refer motor specs).
Caution: This procedure is placing full 240 volt current onto the motor, only a
qualified electrician should perform this procedure.
NOTE: Because the start winding is not in circuit, the motor may need to be manually
turned to start.
OFF
10 A
V
COM
FUSED
1000V- - -
750V
V
Amps
Multimeter
4.7
A
MOTOR/RUN-BROWN
MAINS ACTIVE-IN
If motor runs:
• Check the motor wiring loom and all terminals.
• Check minimum RPM setting (see section - Service Adjustments using the
Networker.
• Check the N-E5 internal 8 Amp fuse is not open circuit.
• Replace N-E5 and test again.
• Check that the ServoSeal has been driven open, indicating Networker signal
operating correctly.
If ServoSeal not open
• Replace Networker and test again.
If motor doesn't run:
• Replace motor.
