Cooler Operation
(cont.)
ServoSeal and Drain Valve Operation
(cont.)
ServoSeal will not close / drain open:
•
Check that the ServoSeal / drain valve action is not in a delay period, from a prior
Cooler operation.
i.e. 60 minute - ServoCloseDelay.
•
Follow check procedures as above for ServoSeal will not open / drain close, with
power test to Active Close terminal on ServoSeal motor and switch.

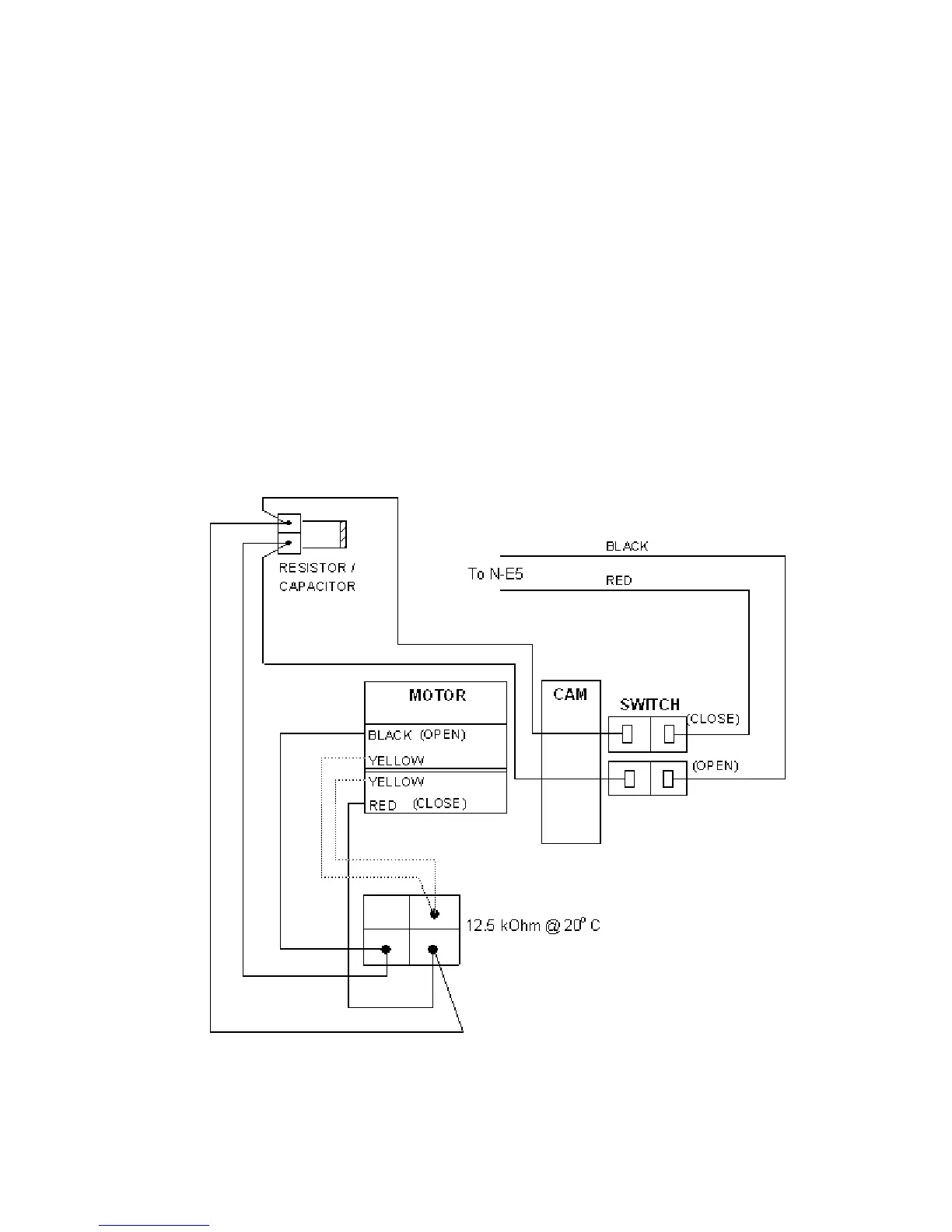

Circuit Diagram:
To Next Page
