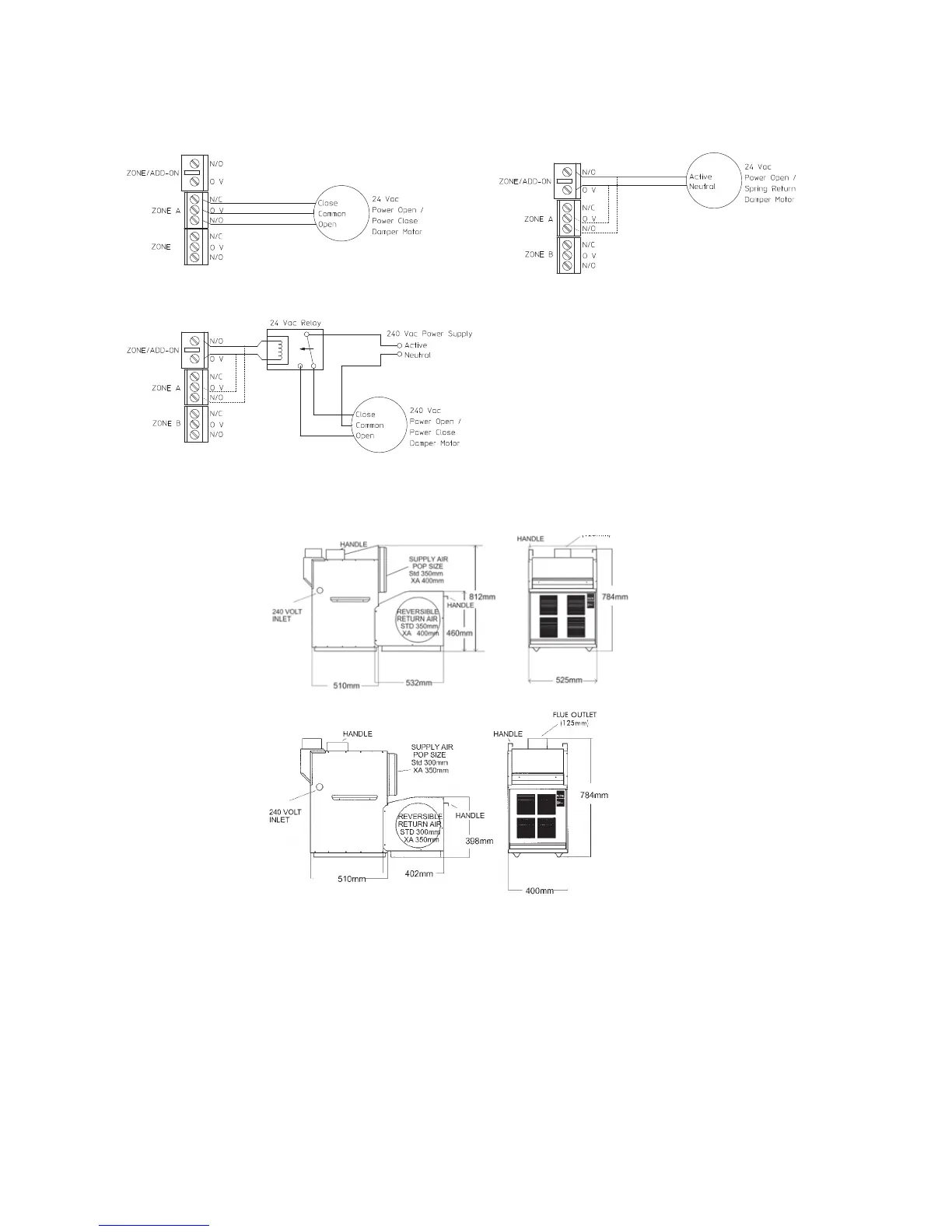

7.1 Wiring a Damper Motor to the Heater’s Control Module
24 Vac Power Open / Power Close 24 Vac Power Open / Spring Return
Damper Motor Damper Motor
240 Vac Power Open / Power Close
Damper Motor
8. Classic 2P Wombat Model Guidelines
8.1 Heater Dimensions
8.2 Service Clearances
Front
• A minimum clearance of 750 mm must be provided in front of the controls access panel.
Sides
• A minimum clearance of 600 mm must be pr
ovided both forward and either side of the fan motor access panels.
8.3 Internal Flueing Instructions
• The flue must be installed in accordance with AS 5601 Gas installations.
• A 125mm round single or twin wall non-corrosive metal flue is required, and must be terminated with an
approved 125mm round metal flue cowl.
• All flues must have a bolted flue sleeve connection to allow for repairs and/or removal of the appliance.
11
2PW 26 and 26XA
2PW 15, 20 and 20XA
FLUE OUTLET
(125mm)
FLUE OUTLET
(125mm)
