BroadLink Universal Remote User Manual

Quick Setup Guide
Universal Remote
Broadlink
. o Works with
® Google Assistant
WORKS WIT
alexa

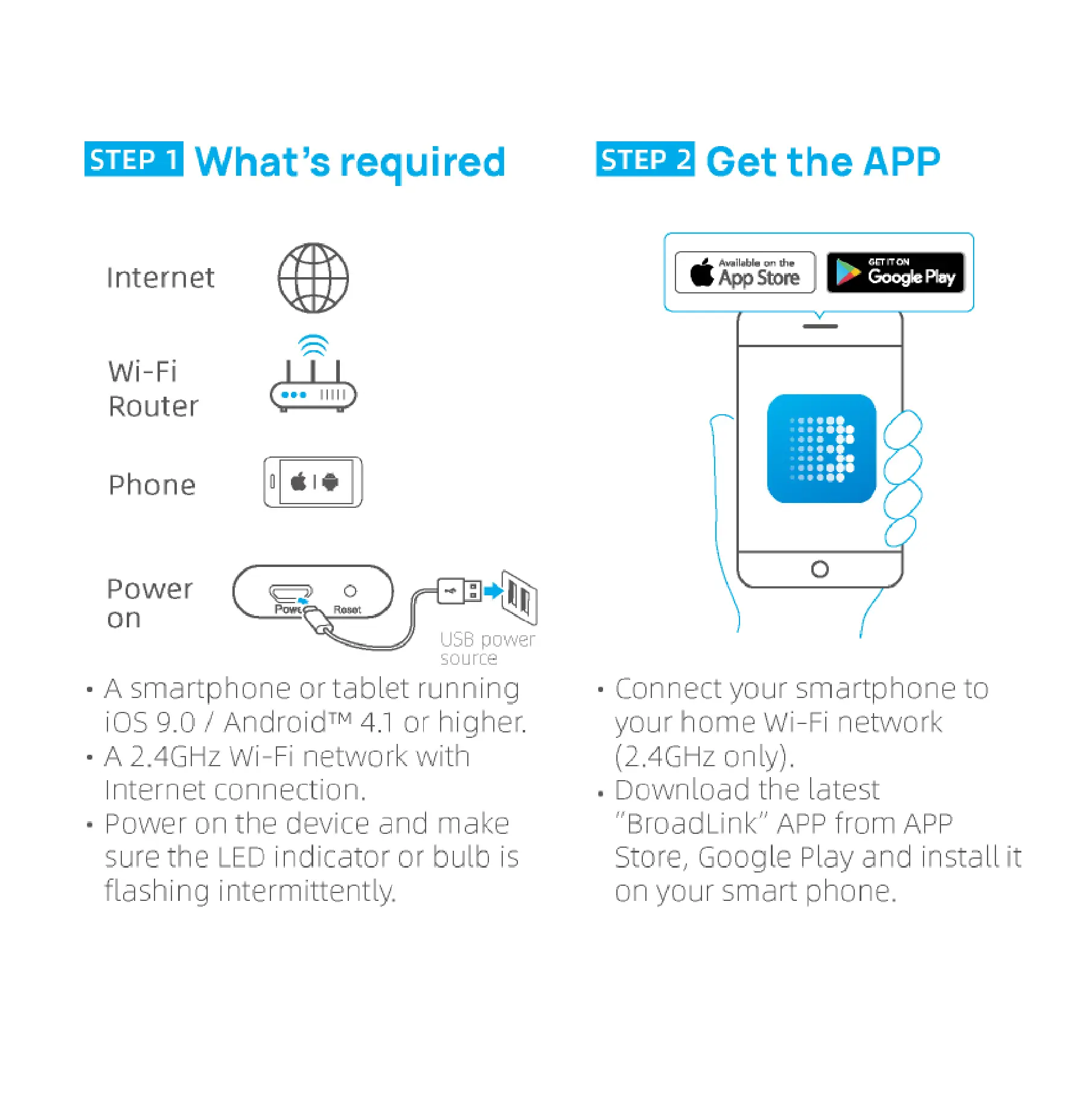

What’s required
Internet @
Router
Phone
Fasat
on
USE power
s0urce
« A smartphone or tablet running
i0S 9.0 / Android™ 4.1 or higher.
- A 2.4GHz Wi-Fi network with
Internet connection.
« Power on the device and make
sure the LED indicator or bulb is
flashing intermittently.
Power =2 o° m II#@
Get the APP
- Connect your smartphone to
your home Wi-Fi network
(2.4GHz only).
. Download the latest
“BroadLink” APP from APP
Store, Google Play and install it
on your smart phone.
2U3E] Sign in APP
Sign in with
G Google Account ‘
+ Open the BroadLink APP, tap
“BroadLink account" and sign in
to your cloud account.
«If you don't have an account,
tap the “Sign up” to create a
new account.
- Link your account with Apple ID
or Google account for guick
sign-in next time (optional).
Add device in APP
Looking for devices...
NO
YES
@
- Tap "+" on top right corner and
choose "Add device”.
- Select "YES" to get to next step.
« The APP will start to scan and
look for your device SSID
“BroadLink_WiFi_Device”
automatically, it may take up to 1
minute.
Connect device
to Wi-Fi network
Enter your Wi-Fi password
Password O I
Connect to Wi-Fi
- Choose your home Wi-Fi
network, input password and
tap “Connect to Wi-Fi", the LED
indicator will be flashing slower
and then off. The device is
successfully connected.
- Choose the room and name the
device.
Add IR appliances
- Tap "Add appliances”,
Choose a category (ex. TV).
- Choose a brand, and find the
best IR code from options.
« If you don't find your brand, Tap
“can’'t find my brand, learn the
remote right away” on bottom,
then go to Step 6.2.
If no option
matched
Learn button
Continue match
If you find the brand but no
option is matched, you have two
choices:
+Tap "Learn button” to skip retry
and directly go to STEP 6.3.
«Tap “Continue match” and
follow the wizard to try other
options may fit your model.
Learn IR code
- Choose a room for this appliance
and name it.
- Tap "Use device now” to the
panel page then tap a gray
button you want to learn.
« Follow the wizard to learn the
button then test the button on
app and save it.
- Repeat until required buttons are
learned, then go to STEP 8.
IR code learning
notice
-
Universal Remote
Short press
« Aim your appliance remote
control at the Universal Remote,
please wait for device LED
indicator lighting up then shortly
press the remote button you
wantto learn.
«Tap “." on top right corner and
choose "Relearn buttons” if
certain button is not working
normally.
Add RF appliances
RM4 pro only
o
%
9
Smart TV
Bioix
=
WD Audio
(=]
a
Projector Switch
: curtain N
- Tap "Add appliances’.
- Choose a category (ex. Curtain)
and a brand.
» Make sure your RF device isin
pairing mode. Tap "Use device
now" and follow the wizard to
pair the code.
- If you can't find your brand,
please choose to learn remote
and go to STEP 7.2.
Learn RF code
Long press
+ Choose a room for this appliance
and name it.
«Tap "Use device now" to the
panel page, thentap a gray
button to learn.
- If you have physical remote, keep
it close to universal remote and
follow the wizard to learn the
button.
If no physical
remote
Please input the frequency
I 433 ’Mhz
Button match
«If you can't find physical remote,
please input the frequency, make
sure your RF device is in pairing
mode, press the “on” button in
App and complete the learning if
the RF device is responded,
- Repeat the learning process until
all buttons you need are learned
then go to Step 8.
Download Alexa,
Google home
- Download the latest version of
Alexa or Google Home APP.
«In Alexa APR tap “ =" and choose
"Skills & Games” Tap "Q " to
search and enable "BroadLink”.
« In Google Home APP tap “+” and
choose "Set up device”. Tap
"works with Google’, then
search and enable “BroadLink”.
Link account
Signin with
‘ G Google Account ’
- Tap "BroadLink account ” and
signin.
- Link your email with Apple ID or
Google account for quick sign-in
later (optional).
« Complete the skill account
linking.
Discover devices
Alexa is discovering devices...
This may take up 1o 45 seconds.
- After discovering devices, you
will be able to control the device
by APP or voice. Congratulations!
*|f you are setting up the second
device, you will get notification
from Alexa after STEP 6 is
completed, or you can find the
device in Google Home APP after
few minutes.

BroadLink Universal Remote Specifications

General

App Support	BroadLink App (iOS & Android)
Connectivity	Wi-Fi (2.4GHz)
Voice Control	Amazon Alexa, Google Assistant
Operating Temperature	50°C
Power Supply	5V DC 1A (Micro USB)
Operating Range	Wi-Fi range (depends on router)
Supported Protocols	IR
Additional Features	Timer
