5. NAVIGATION ON LCD SCREEN
+
-
OK
VD0492
OK button To confi rm a selection.
+ button
To increase a value.
To scroll up in a selection.
- button
To decrease a value.
To scroll down in a selection.
VQ0211
VQ0210
VQ0209
VQ0203
VQ0212
Indicates current
mode
Indicates
fresh airfl ow

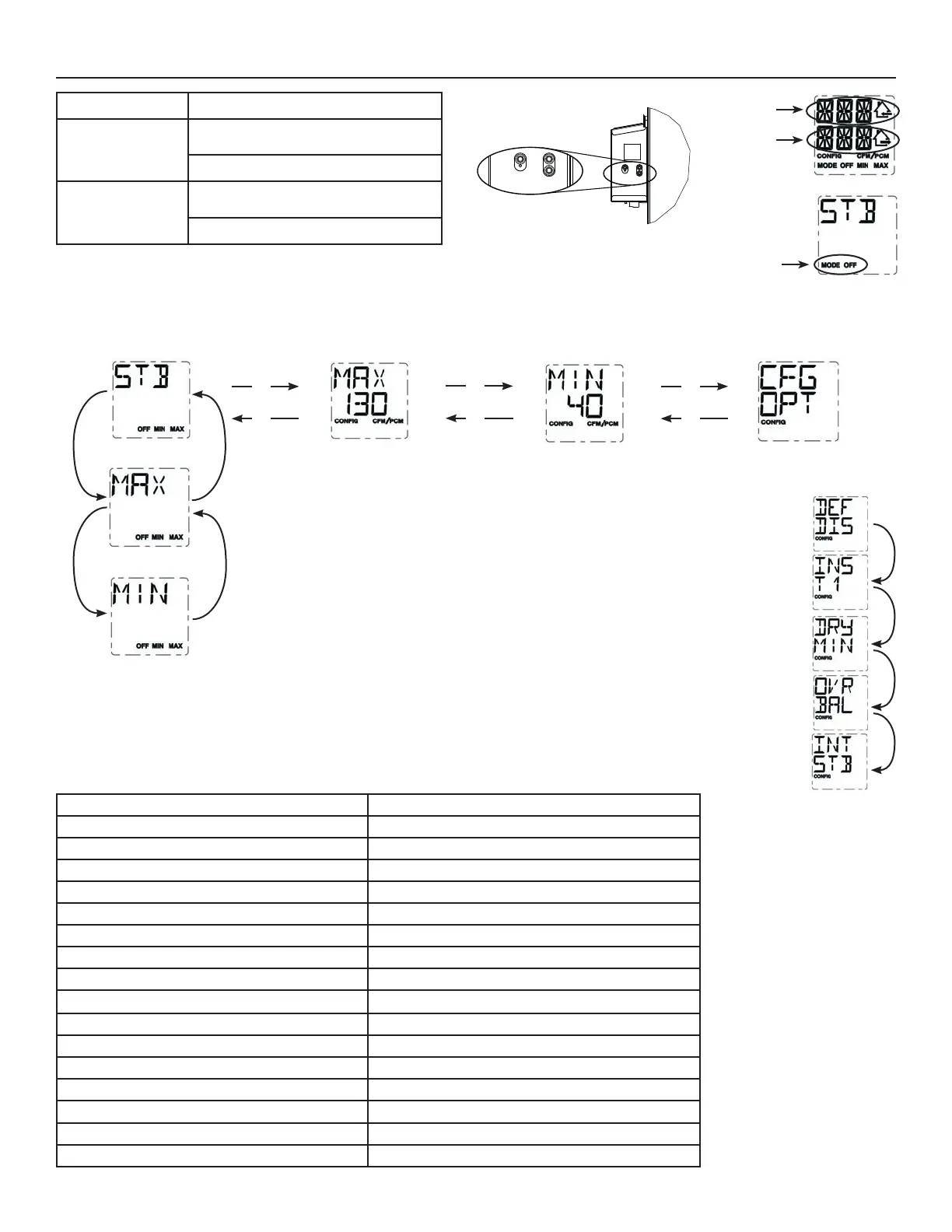

PRESS ON OK BUTTON TO
CHANGE THE OPERATING MODE.
USE + BUTTON OR - BUTTON
TO SELECT THE DESIRED
OPERATING MODE.
+
-
PRESS ON OK BUTTON TO
CONFIRM THE OPERATING
MODE SELECTION.
VQ0205
VQ0207
VQ0201
Indicates
stale airfl ow
+
+
-
-
+
-
+
-
PRESS ON + BUTTON OR - BUTTON TO MODIFY MAX CFM, MIN CFM OR OPTIONS CONFIGURATION.
PRESS ON OK BUTTON DURING 4
SECONDS TO MODIFY MAX CFM
CONFIGURATION.
MAX CFM DATA WILL FLASH.
USE + BUTTON TO INCREASE
VALUE OR - BUTTON TO
DECREASE VALUE.
PRESS ON OK BUTTON TO
CONFIRM VALUE.
PRESS ON OK BUTTON DURING 4
SECONDS TO MODIFY MIN CFM
CONFIGURATION.
MIN CFM DATA WILL FLASH.
USE + BUTTON TO INCREASE
VALUE OR - BUTTON TO
DECREASE VALUE.
PRESS ON OK BUTTON TO
CONFIRM VALUE.
PRESS ON OK BUTTON DURING 4
SECONDS TO MODIFY OPTIONS
CONFIGURATION.
VQ0197
VQ0202
VQ0199
VQ0198
VQ0200
FOR EACH
OPTION
CONFIGURATION,
USE + BUTTON
TO SCROLL UP
IN OPTIONS
AVAILABLE OR
- BUTTON TO
SCROLL DOWN
IN OPTIONS
AVAILABLE.
ONCE OPTION
SELECTION IS
DONE, PRESS
OK BUTTON
TO CONFIRM
SELECTION. THE
NEXT OPTION
CONFIGURATION
WILL THEN
DISPLAY.
DISPLAY DEFINITION
STB Standby mode
MED MED speed
INT Intermittent mode
REC Recirculation mode (Min, Med or Max speed)
AUT AUTO mode
SMT SMART mode
OVR 20 Override 20 min
OVR 40 Override 40 min
OVR 60 Override 60 min
OVR CNT Override by dry contact
AHU Refer to section 6.3 for explanation
HUM Humidistat or Dehumidistat override
TUR Turbo mode
OTH Away mode or Scheduling mode
DEF Defrost mode
EXX or WXX (XX referring to error or warning number) Refer to section 8 for each error/warning explanation
