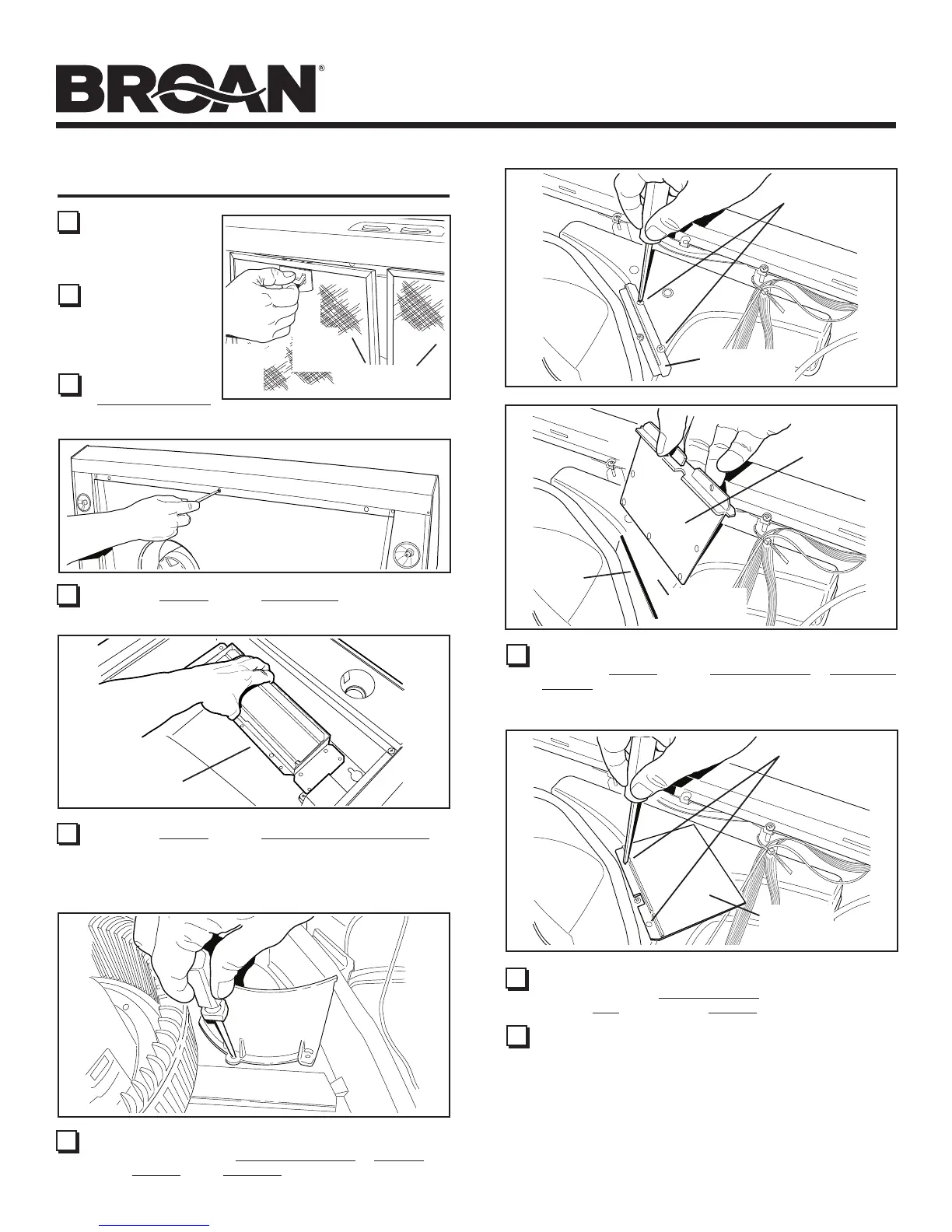

QP2 SERIES
Page 5
12 NON-DUCTED INSTALLATION ONLY:
From parts bag: Attach Non-Duct Diverter to Air Box
with 2 Screws and 2 Washers.
15 NON-DUCTED INSTALLATION ONLY:
Purchase a set of (2) non-ducted filters for 30” wide hoods
(Model BPPF30) & 36” wide hoods (Model BPPF36) or
a set of (3) non-ducted filters for 42” wide hoods (Model
BPPF42) from your local distributor or retailer. Attach the
non-ducted filters to the aluminum mesh filters following
instructions packed with the non-ducted filters.
FOR NON-DUCTED INSTALLATIONS - Skip to
“INSTALL THE HOOD”.
13 NON-DUCTED INSTALLATION ONLY:
Remove 2 Screws holding Non-Duct Plate to Non-Duct
Plenum and remove plate.
14 NON-DUCTED INSTALLATION ONLY:
Insert short end of Non-Duct Plate into Non-Duct
Plenum Slot. Attach with 2 Screws removed in Step 13.
SCREWS
SCREWS
NON-DUCT
PLATE
NON-DUCT
PLENUM
NON-DUCT
PLATE
ç
SLOT
11 Remove 2 Screws holding Damper / Duct Connector
to hood. Remove damper/duct connector from inside the
hood.
FOR DUCTED INSTALLATIONS - Skip to Step 16.
DAMPER /
DUCT CONNECTOR
10 Remove 6 Screws holding Bottom Pan to hood. Set bot-
tom pan and screws aside.
PREPARE THE HOOD
9 Remove the
Aluminum Filters
from the hood.
8 Remove all
protective polyfilm
from the hood
(stainless steel
hoods only).
7 Remove parts bag
from the hardware
box included with
the hood.
ALUMINUM
FILTERS
ç
(1)
PULL
DOWN
(2)
LIFT
OUT
ç
NON-DUCT
PLATE
NON-DUCT
DIVERTER
To Next Page
