MODEL QTXE080C

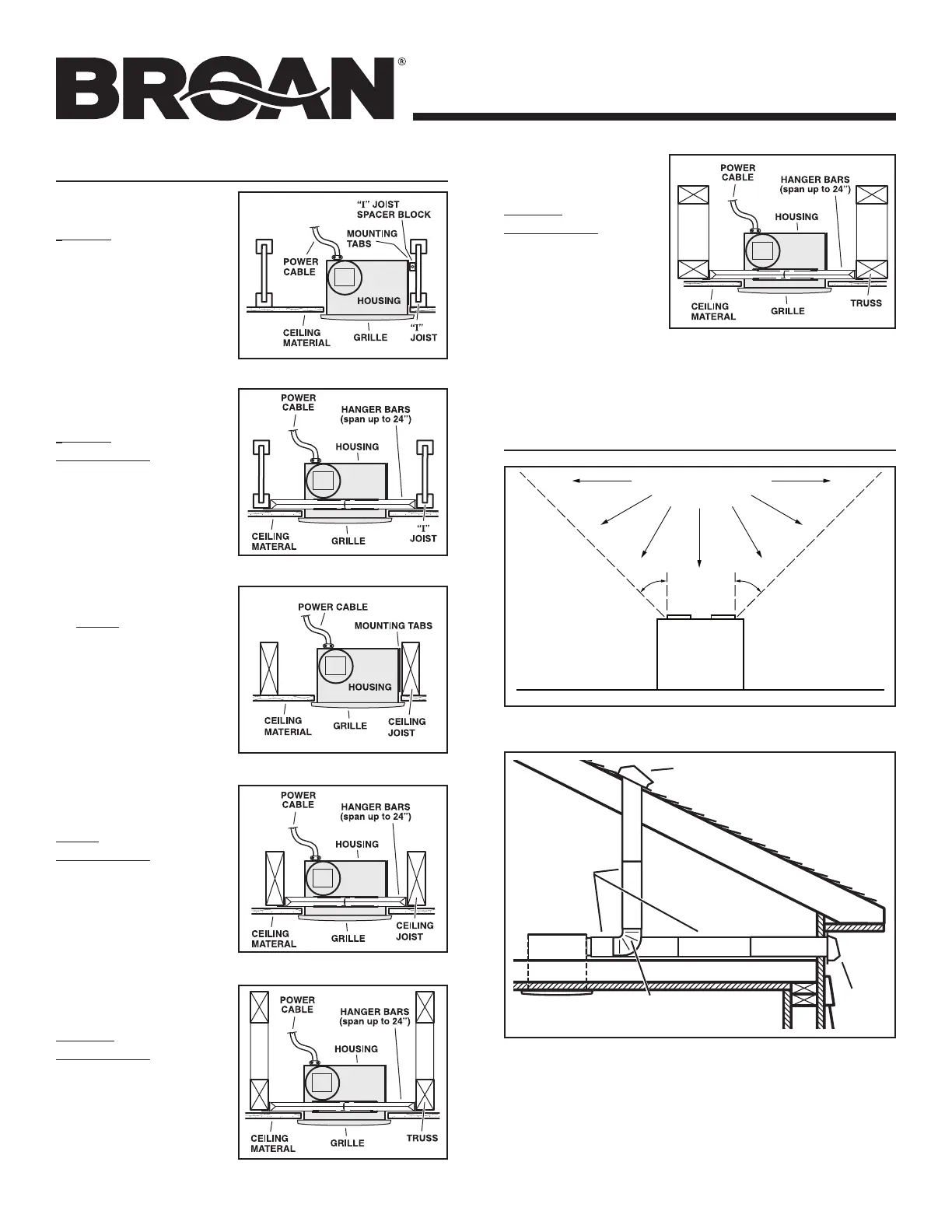

TYPICAL INSTALLATIONS
Housing mounted to
I-joists.
Housing mounted
anywhere between
trusses using
hanger bars.
ROOF CAP *
6-IN. ROUND
ELBOW
*
6-IN. ROUND
DUCT
*
WALL
CAP
*
* Purchase
separately
The unit will operate most quietly and effi ciently when located
where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
Housing mounted
anywhere between
I-joists using
hanger bars.
Housing mounted
to joists.
Housing mounted
anywhere between
joists using
hanger bars.
Housing mounted
anywhere between
trusses using
hanger bars.
PLAN THE INSTALLATION
Cooking
Equipment
Floor
Do not install above or
inside this area.
45
o
45
o
