Page 4
MODEL QTXE080C

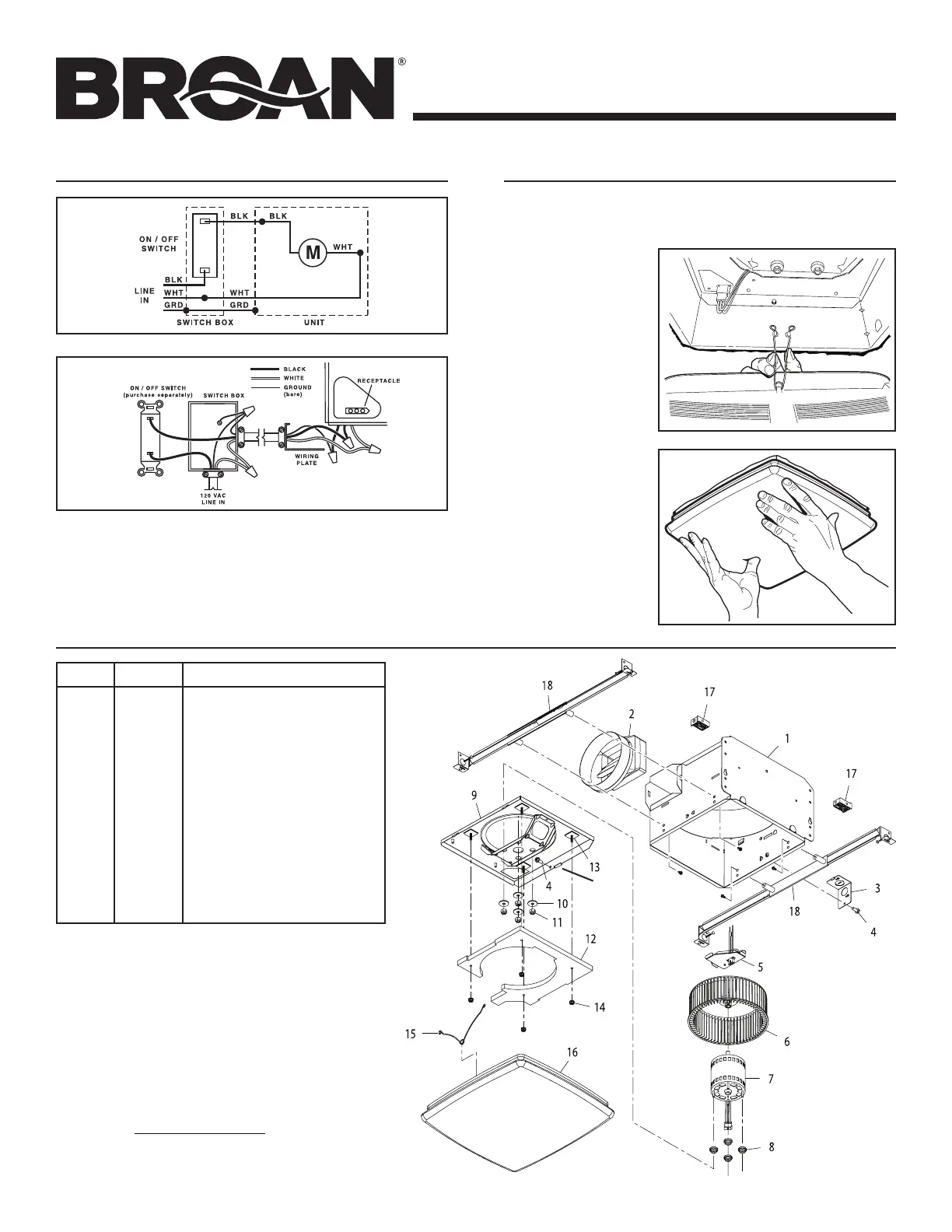

Key No. Part No. Description
1 97016466 Housing
2 97016450 Duct Connector-6”
3 98010102 Wiring Plate
4 99170245 Screw, #8-18 X .375 (2 req’d)
5 97016932 Wire Panel/Harness Assembly
6 99020284 Blower Wheel
7 99080562 Motor (QTXE080C)
8 99100491 Isolator (4 req’d)
9 97016468 Motor Plate
10 99250959 Washer #8 (4 req’d)
11 99260558 Nut, Hex Lock #8-32 (4 req’d)
* 97016588 Blower Assembly (QTXE080C)
15 99140199 Grille Spring (2 req’d)
16 97016459 Grille Assembly (includes key no. 15)
17 99111293 Spacer (2 supplied)
18 97016909 Hanger Bar Kit
30042341
TAB
Order service parts by “Part No.” - not by “Key No.”
* Not shown assembled.
SERVICE NOTE To remove Blower Assembly: Unplug motor (7). Remove
screw (4) from motor plate (9) fl ange. Find the single TAB on the motor plate (located
next to the receptacle). Push up near motor plate tab while pushing out on side of housing.
Or insert a straight-blade screwdriver into slot in housing (next to tab) and twist screwdriver.
INSTALL GRILLE
6. Attach grille
to housing.
Squeeze grille
springs and insert
them into slots on
each side of
housing.
7. Push grille
against ceiling.
5. Finish ceiling.
Install ceiling material. Cut out around housing.
4. Connect electrical wiring.
Run 120 VAC house wiring to installation location. Use
proper UL approved connector to secure house wiring to
wiring plate. Connect wires as shown in wiring diagrams.
CONNECT WIRING
SERVICE PARTS
