DATA CENTER CONFIGURATION GUIDE
Configuring an iSCSI SAN Using Brocade FCX Switches 6

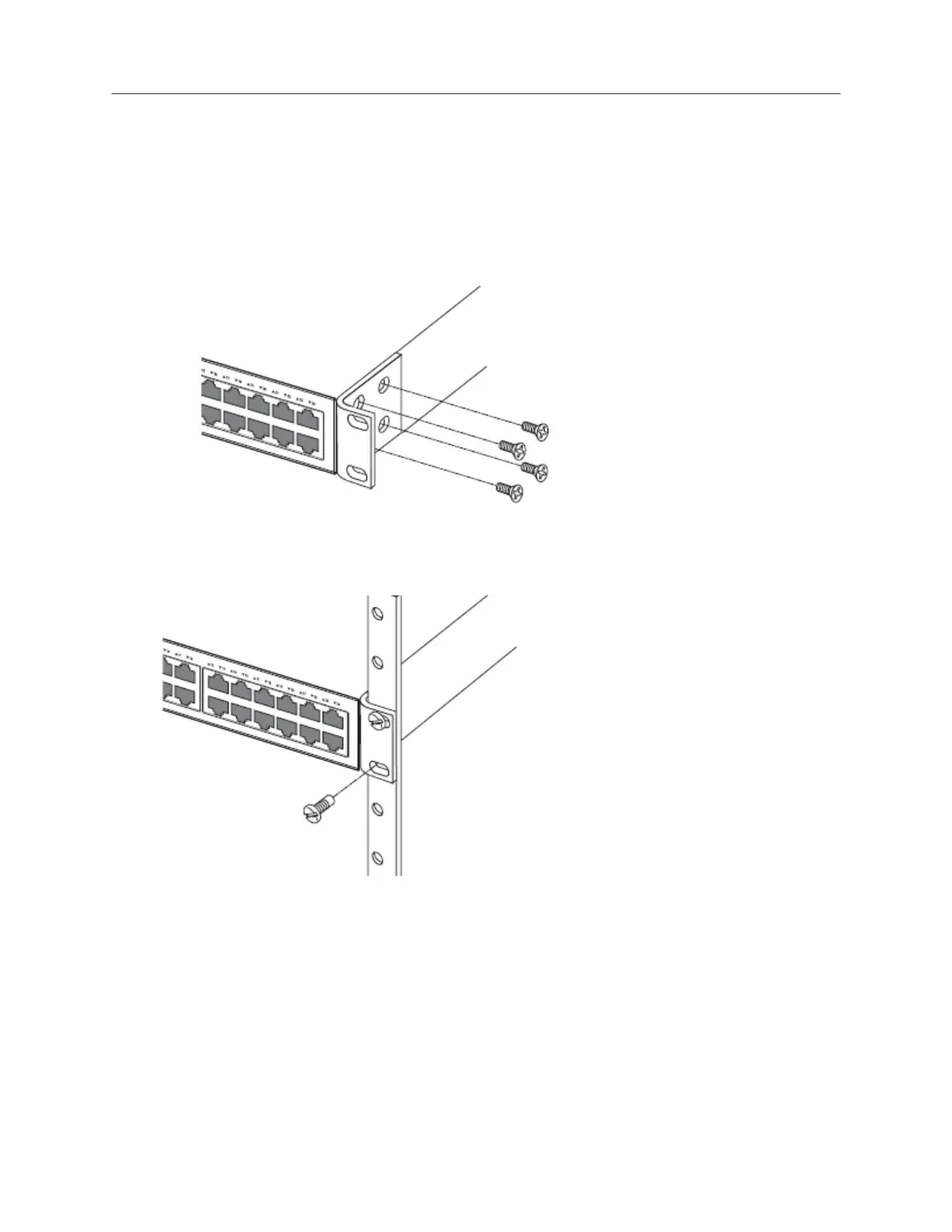

To mount a Brocade FCX in a rack:
1. Ensure you have a #2 Phillips screwdriver handy for the installation.
2. Remove the rack mount kit from the shipping carton. The kit contains two L-shaped mounting brackets and
mounting screws.
3. Attach the mounting brackets to the each side of the device using the provided screws.
4. Mount the device to the rack. Rack mount screws are not included in the rack mount kit.
5. If installing multiple switches, mount them in the rack, one below the other, and in any order.
