2 Brocade FastIron WS Hardware Installation Guide
53-1002188-01
Hardware features
1
DRAFT: BROCADE CONFIDENTIAL

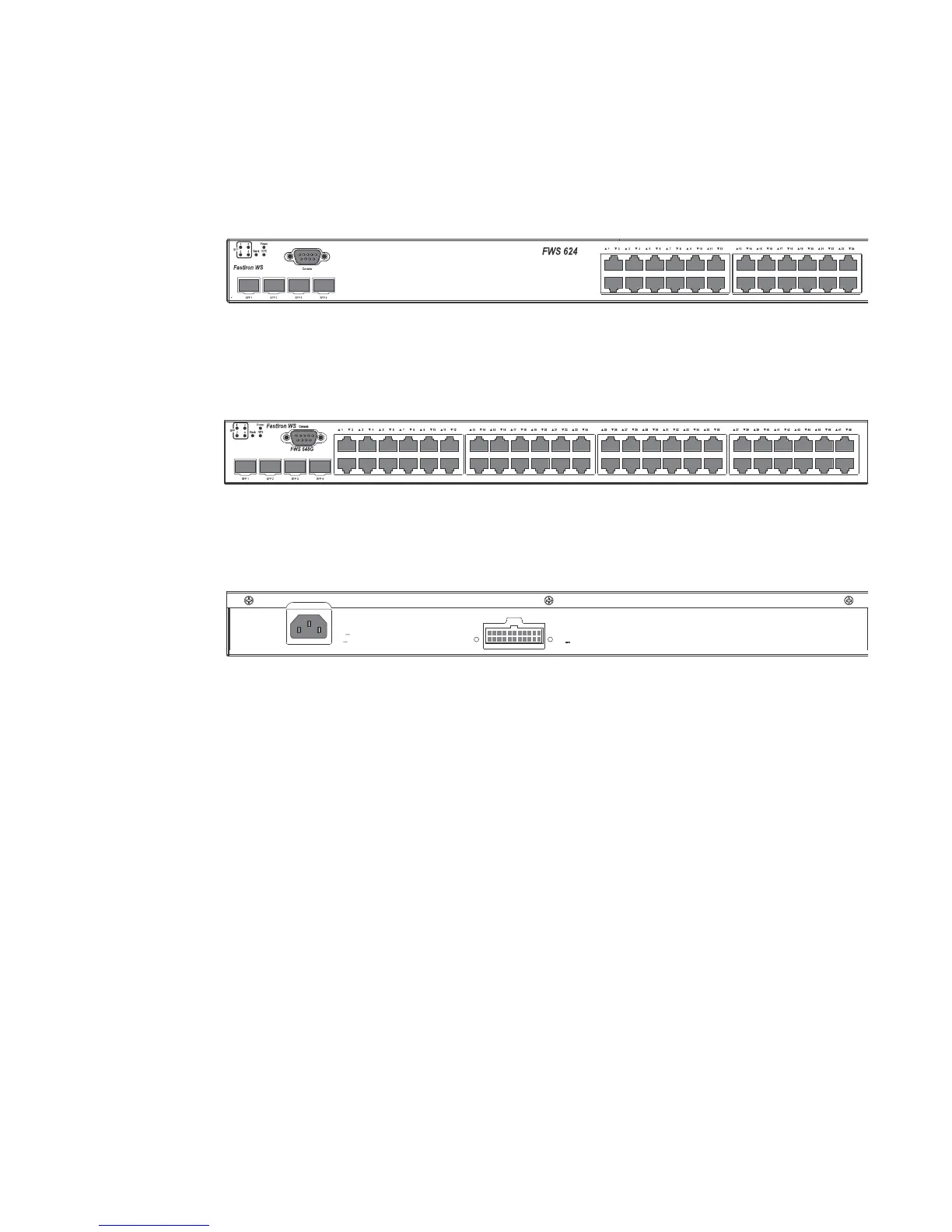

The following figures show the front and rear panels of the FastIron WS models.
FIGURE 1 FWS624, FWS624G
FIGURE 2 FWS648, FWS648G
FIGURE 3 FWS624, FWS648, FWS624G, FWS648G rear panel
FWS624-POE, FWS648-POE, FWS624G-POE, FWS648G-POE
FastIron WS POE devices provide high 10/100 port density and Gigabit Ethernet uplinks in a
compact form factor:
FastIron WS624-POE includes 20 x 10/100 Mbps PoE ports plus 4 Combo 10/100/1000
Mbps copper (RJ45 PoE) or 100/1000 Ethernet Fiber (SFP) ports. Unit supports 802.3af PoE.
FastIron WS648-POE includes 44 x 10/100 Mbps PoE ports plus 4 Combo 10/100/1000
Mbps copper (RJ45 PoE) or 100/1000 Ethernet Fiber (SFP) ports. Unit supports 802.3af PoE.
FastIron WS624G-POE includes 20 x 10/100/1000 Mbps PoE ports plus 4 Combo
10/100/1000 Mbps copper (RJ45 PoE) or 100/1000 Ethernet Fiber (SFP) ports. Unit supports
802.3af PoE.
FastIron WS648G-POE includes 44 x 10/100/1000 Mbps PoE ports plus 4 Combo
10/100/1000 Mbps copper (RJ45 PoE) or 100/1000 Ethernet Fiber (SFP) ports. Unit supports
802.3af PoE.
The following figures show the front and rear panels of these FastIron WS models.
100 240 V~
50 60 Hz, 2A
12V ,10A
