Preparing the installation site
2
DRAFT: BROCADE CONFIDENTIAL
• Allow for the device to be connected to a separate grounded power outlet that provides 110 to
240 VAC, 50 to 60 Hz, is within 2 m (6.6 feet) of each device and is powered from an
independent circuit breaker. As with any equipment, a filter or surge suppressor is
recommended.
Installing the device
You can install Brocade systems on a desktop or in an equipment rack.
Make sure the rack or cabinet housing the device is adequately secured to prevent it from
becoming unstable or falling over.
Mount the devices you install in a rack or cabinet as low as possible. Place the heaviest device at
the bottom and progressively place lighter devices above.
Desktop installation

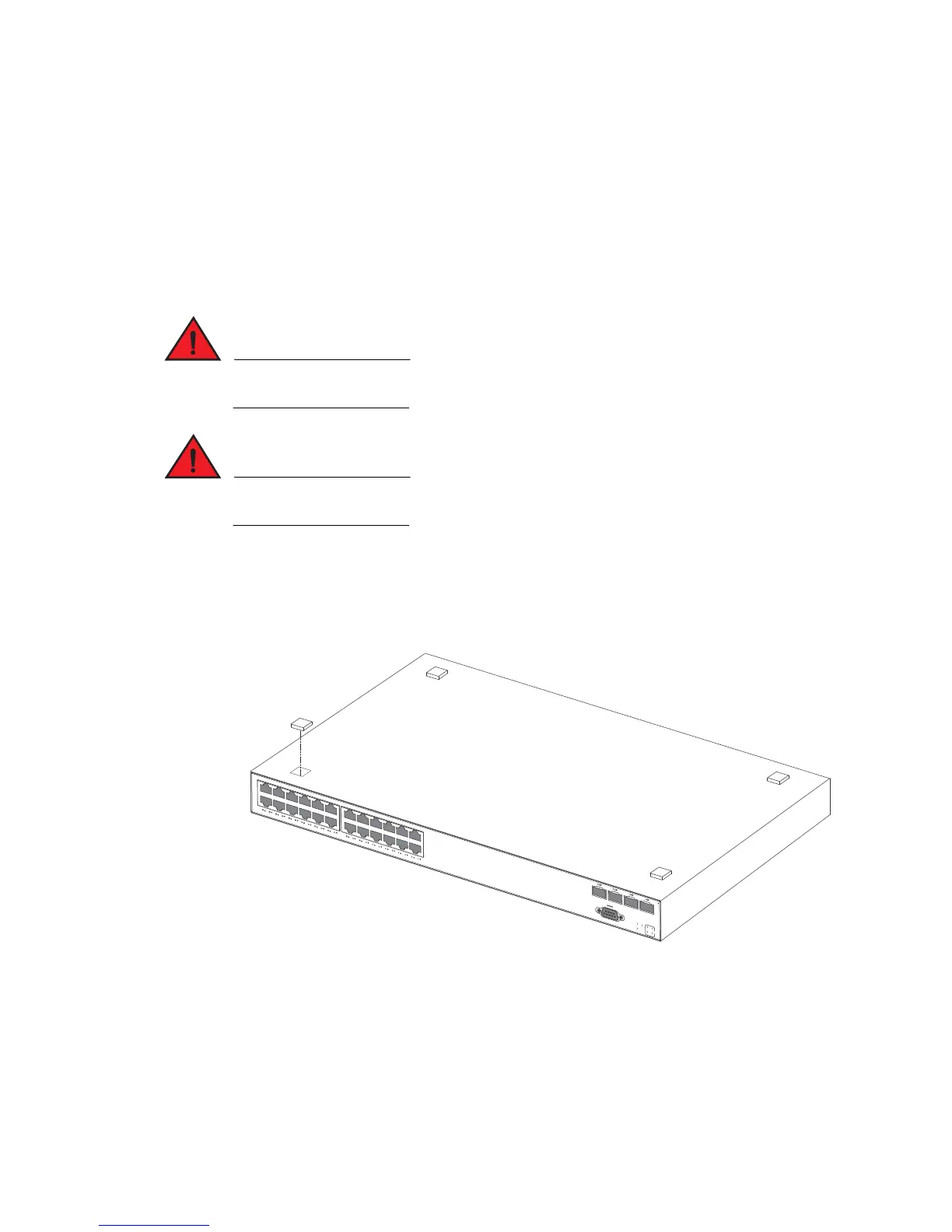

FIGURE 11 Attaching the adhesive feet
1. Attach the four adhesive feet to the bottom of the first device.
2. Set the device on a flat desktop, table, or shelf near an AC power source. Make sure that
adequate ventilation is provided for the system. A 3-inch clearance is recommended on each
side.
3. If you are installing a single device only, go to “Activating power to the device” on page 26.
4. If you are installing multiple devices, attach the adhesive feet to each one. Place each device
squarely on top of the one below, in any order.
