MODEL BW-260

For parts and service, call:

(866) 283-2759

Waldon Equipment, LLC, 201 W. Oklahoma Ave., Fairview, OK 73737

OPERATION OF THE SWEEPING CORE

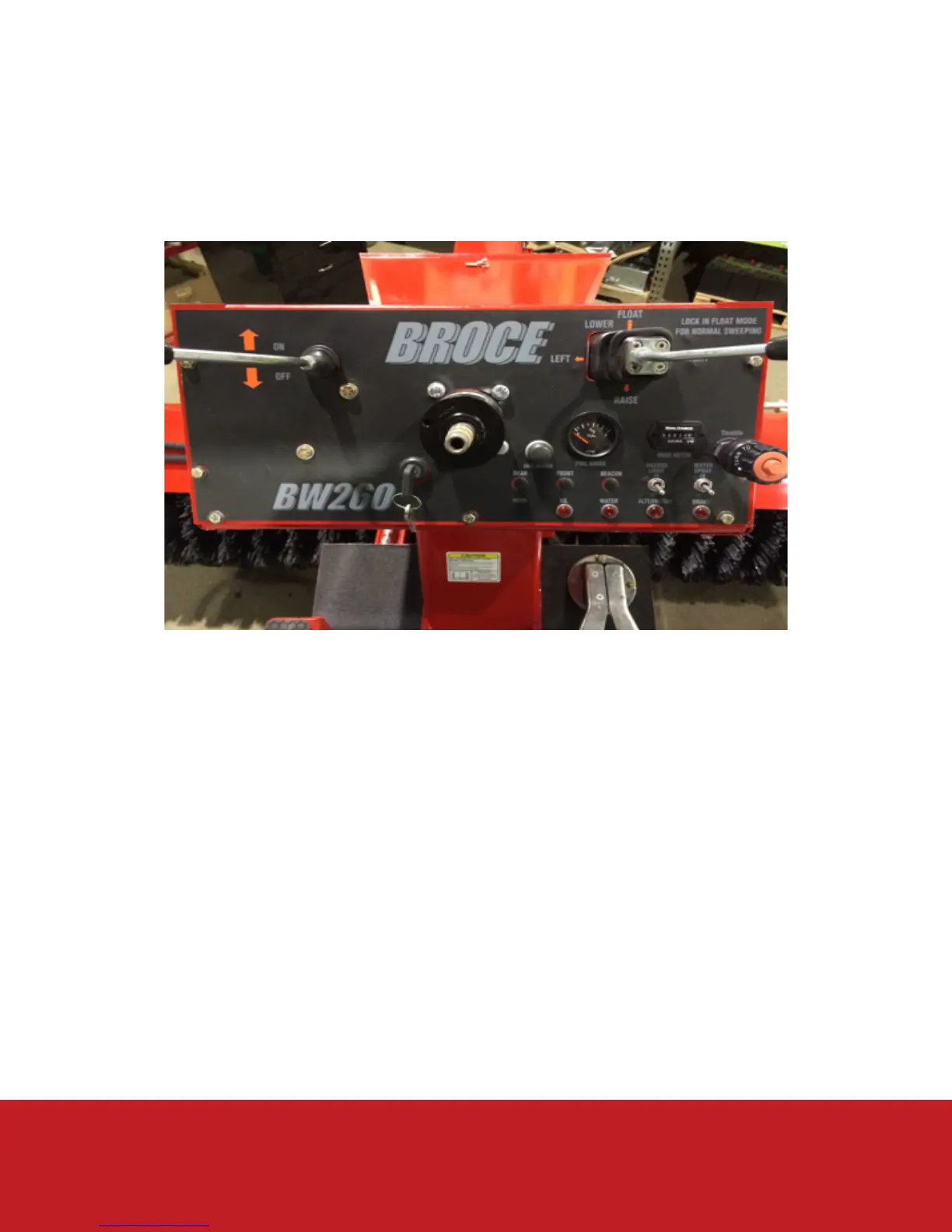

All broom functions are hydraulically operated. The control levers are located on the dash on the

right and left side of the steering wheel. The joystick located on the right side of dash controls the

core height up down and the right and left angle of Broom. The handle on the left

turns on and off broom rotation.

RAISE / LOWER / FLOAT DETENT

To raise the core, move the joystick to the back, “Raise,” position until the core is raised all the way.

The handle will return to the hold position and core height will be maintained. To lower the core

during normal sweeping conditions, move the joystick to the front, “Float position. The

“Float” position will allow the core to maintain the ideal contact while allowing it to oat over bumps

or contours in the surface. To adjust the core height downward, slowly move the handle from the

hold position to the lower position. The core will begin to move downward. Release the handle

when the desired height has been achieved.
