BROCE FMJ470
SWEEPING CORE OPERATION

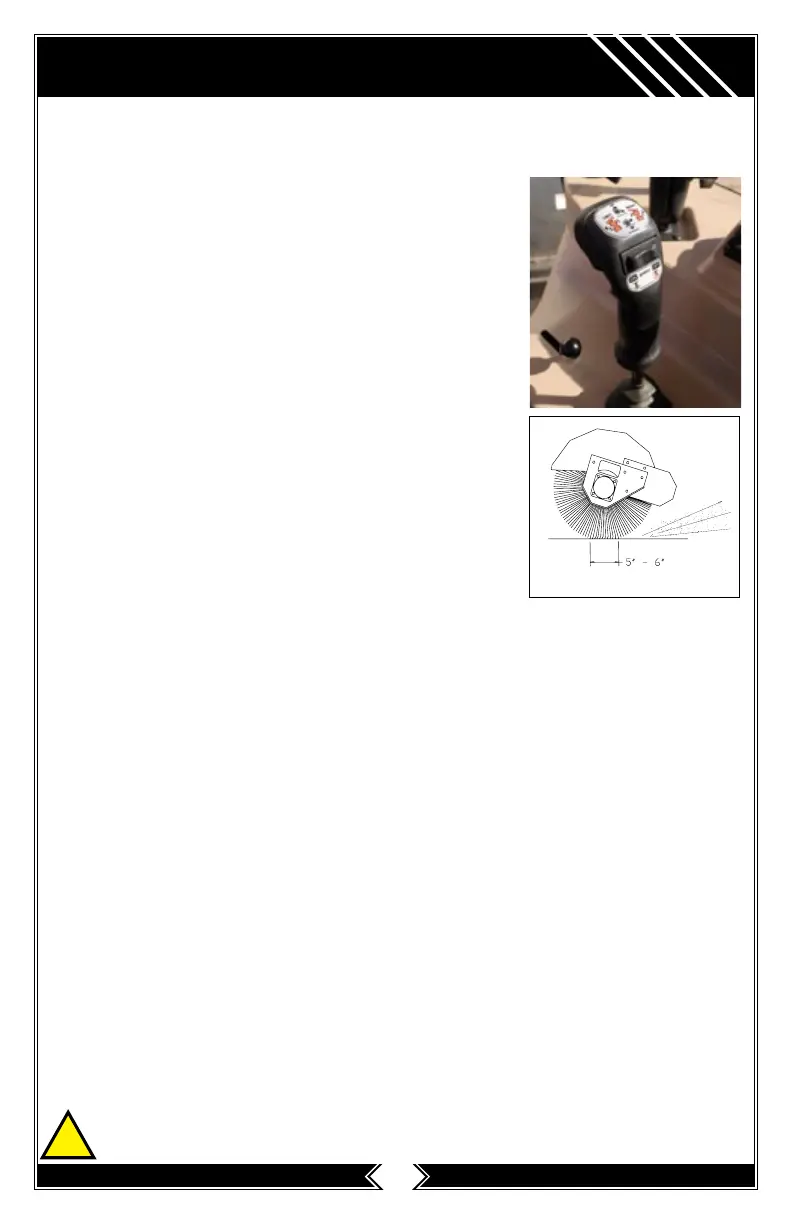

RAISE/LOWER
To raise the sweeping core, position and pull the
joystick to the “UP” position until the core is raised all the
way. The joystick will return to the center position and
core height will be maintained.
To lower the core during normal sweeping conditions,
push the joystick to the “DOWN” position until the core
reaches the desired position.
The gure shows the optimum broom height for most
sweeping conditions. Using the proper height will also
extend the life of the broom.
ANGLE OPERATION OF BROOM
The broom core may be set at any angle from 37 left to 37 right, simply moving
the handle in the corresponding direction. Release the handle when the desired
angle is achieved.
BROOM ON/OFF
The Broom Core motor is activated when the switch is moved to the “BROOM ON”
position.
SIDE TO SIDE OPERATION OF BROOM
The sweeper is equipped with a side shift mechanism which allows the broom to
move 14” to the left or right. This function is activated with the side shift joystick.
o
o
Proper Sweeping Height
